- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
YEJUVISION
-
Model Number:
-
ZK-Q1HW01
-
Warranty:
-
3 Years
-
Technology:
-
Infrared Camera
-
Image Sensor:
-
1/2.8" 2.0M CMOS Sensor
-
Resolution:
-
1080P/720P
-
Zoom:
-
20x Optical Zoom
-
Feature1:
-
Video/Audio Output
-
Feature2:
-
Image grabbing
-
Horizontal Angle:
-
360° unlimited rotation
-
Vertical Angle:
-
-20°~+90°
-
Material:
-
Aluminum Alloy
Quick Details
-
Special Features:
-
Human Motion Tracking, NIGHT VISION, Vandal-proof, Motion Detection, Sound Detection, Waterproof / Weatherproof, Finger recognition, Built-in Siren, People Counting, PAN-TILT, Two-way Audio, Low Power, Video/Audio Output, Image grabbing
-
Function:
-
Two-way Audio, PAN-TILT, Abnormal sound detection, Alarm I/O, RESET, Built-in Mic, NIGHT VISION, Waterproof / Weatherproof, Wide Angle, Built-in Siren, Vandal-proof
-
Customized support:
-
Online technical support, Customized logo, Software reengineering, OEM, ODM, To Map customization
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
YEJUVISION
-
Model Number:
-
ZK-Q1HW01
-
Warranty:
-
3 Years
-
Technology:
-
Infrared Camera
-
Image Sensor:
-
1/2.8" 2.0M CMOS Sensor
-
Resolution:
-
1080P/720P
-
Zoom:
-
20x Optical Zoom
-
Feature1:
-
Video/Audio Output
-
Feature2:
-
Image grabbing
-
Horizontal Angle:
-
360° unlimited rotation
-
Vertical Angle:
-
-20°~+90°
-
Material:
-
Aluminum Alloy
Product Overview

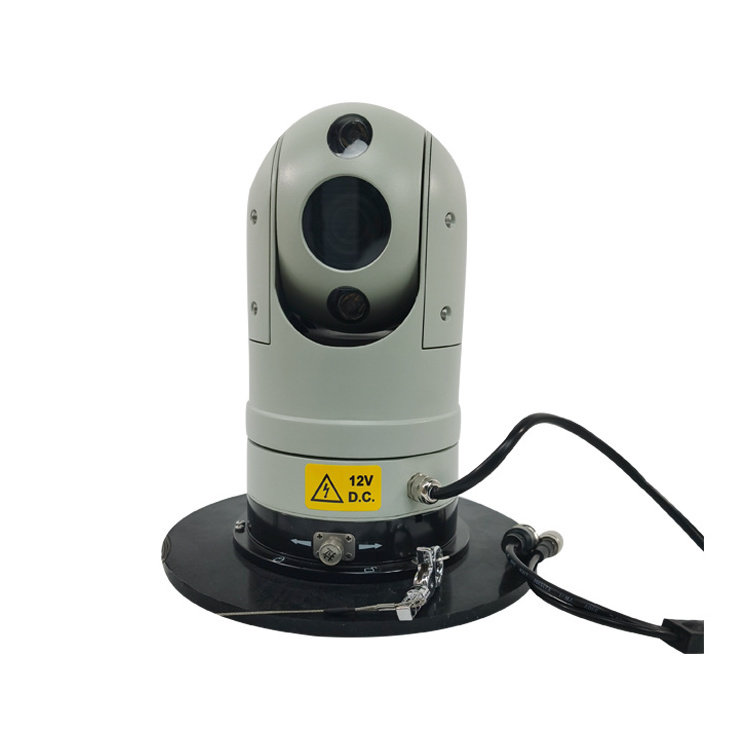

Professional Factory Customizable 850m Day Vision And 130m Night Vision Car Mounted Ptz Ir Camera
Camera specification
● Yuntai supports a number of mainstream multi-million digital high-definition integrated movement and high-definition SENSOR to achieve high-definition image capture
● H. 264 video compression Algorithm and DSP processing chip and platform, high compression ratio, good image quality, integrated with built-in pan-tilt and digital decoder. Fully digital control, flexible programming,smart and simple drive system design, can be quickly located and continuously tracked scanning, it has realized the real sense omni-directional, blind spot surveillance
● the highest support 1080P@30fps
● support dual bitstream and high definition capture
● support many kinds of high definition platform access
● Yuntai uses the third generation high-power infrared lamp, multi-group angle coordination, the brightness can be adjusted to achieve maximum uniform illumination
● the infrared lamp and the camera can be truly isolated from the third cabin to completely solve the problems of the infrared lamp aging too fast and the fogging of the ball machine lens
● the constant current dimming design, the infrared lamp works more stably, life expectancy up to 30,000 hours infrared night vision effective distance of 50 meters cloud station intelligent set up six cruise trajectory, four line scan command, one pattern scan function, can Be reduced to track, line sweep, pre-position, power-off memory function, automatically return to the original state before power-off, 4 alarm input, 1 alarm output (optional)
● head protection grade IP66, support three-level lightning protection, surge surge-proof
● the platform can be equipped with shock absorbers to achieve on-board installation, power DC 24V
● the highest support 1080P@30fps
● support dual bitstream and high definition capture
● support many kinds of high definition platform access
● Yuntai uses the third generation high-power infrared lamp, multi-group angle coordination, the brightness can be adjusted to achieve maximum uniform illumination
● the infrared lamp and the camera can be truly isolated from the third cabin to completely solve the problems of the infrared lamp aging too fast and the fogging of the ball machine lens
● the constant current dimming design, the infrared lamp works more stably, life expectancy up to 30,000 hours infrared night vision effective distance of 50 meters cloud station intelligent set up six cruise trajectory, four line scan command, one pattern scan function, can Be reduced to track, line sweep, pre-position, power-off memory function, automatically return to the original state before power-off, 4 alarm input, 1 alarm output (optional)
● head protection grade IP66, support three-level lightning protection, surge surge-proof
● the platform can be equipped with shock absorbers to achieve on-board installation, power DC 24V
Product details
Pan-Tilt Specification
|
Professional Factory Customizable 850m Day Vision And 130m Night Vision Car Mounted Ptz Ir Camera
|
|
|
|
Image Sensor
|
1/2.8〞，2.0M CMOS Sensor
|
|
|
Signaling System
|
1080p/60，1080p/50，1080p/30，1080p/25，1080i/60，1080i/50
|
|
|
Effective Pixels
|
2.1mp
|
|
|
Resolution
|
1000 TV lines
|
|
|
Lens
|
20x zoom lens
4.7mm~94mm±5%
F1.6（W）~F3.5（T）±5%
|
|
|
Zoom Speed
|
3s
|
|
|
View Angle（horizontal）
|
58.4°（W）~3.2°（T）
|
|
|
Horizontal Angle
|
360°unlimited rotation
|
|
|
Vertical Angle
|
-20°~+90°
|
|
|
Object Distance
|
1.5m（W）~Infinity（T）
|
|
|
Minimum Illumination
|
0.5 LUX
|
|
|
Automatic Diaphragm
|
Support
|
|
|
Day & Night Switch
|
Support
|
|
|
Video Output
|
LVDS
|
|
|
Camera Control Interface
|
VISCA（TTL），Baud rate：9.6kb/s，
Stop bit：1/2optional
|
|
|
SNR
|
≥50dB
|
|
|
Electronic Shutter
|
1/50~1/10000s
|
|
|
White Balance
|
auto/ATW/indoor/outdoor/one-button/manual
|
|
|
Gain
|
auto/manual
|
|
|
Automatic Exposure Control
|
auto/manual/priority mode
|
|
|
Synchronizing Signal
|
Interior
|
|
|
Wide Dynamic Range
|
ATR-EX+Defog
|
|
|
Special Function
|
BLC，HLC，High resolution mode settings
|
|
|
Privacy Zone Masking
|
Support（8 Region Optional）
|
|
|
Head View
|
One line has 20 characters
|
|
|
Foucusing System
|
Auto（Sensitivity：normal、low）/one-button AF/manual
|
|
|
Image Effects
|
black and white/mirror horizontally/flip vertical
|
|
|
Storage Temperature
|
-20~60℃
|
|
|
Operating Temperature
|
0~50℃（Recommended）
|
|
|
Power Requirement
|
DC 9~12V
|
|
|
Power Consumption
|
4W MAX
|
|
FAQ
Q1：What is your warranty?
A1：3 years of normal use.
Q2：Do you accept customization?
A2：Yes,of course.OEM，ODM is very welcome.
Q3：What is your minimum order quantity: Our minimum order quantity
A3：You are welcome to order samples to test our quality and service.
Q4：What is your payment term?
A4：We accept PAYPAL (10% bank charges) , t/t Bank transfers ($30 bank charges) , western union and Money Gram
Q5：How to contact you?
A5：Please end your query details as a sample below, and then click send.
Phone:86-18082168383
SKYBE:Loewechen
E-mail:zkcxyjs@126.com
Q2：Do you accept customization?
A2：Yes,of course.OEM，ODM is very welcome.
Q3：What is your minimum order quantity: Our minimum order quantity
A3：You are welcome to order samples to test our quality and service.
Q4：What is your payment term?
A4：We accept PAYPAL (10% bank charges) , t/t Bank transfers ($30 bank charges) , western union and Money Gram
Q5：How to contact you?
A5：Please end your query details as a sample below, and then click send.
Phone:86-18082168383
SKYBE:Loewechen
E-mail:zkcxyjs@126.com
