Quick Details
-
Brand Name:
-
MINX
-
Model Number:
-
MIN-I-1
-
Surface Treatment:
-
SMOOTH, GRITTED TOP COVER, GRITTED SURFACE
-
Product name:
-
GRP/ FRP Fiberglass
-
Advantage:
-
High Strenth Less Weight
-
Sample:
-
Freely Supplied
-
Raw material:
-
Fiberglass and Resin
-
Thickness:
-
Customized Thickness
-
Feature:
-
Anti-Corrosion, Anti-Fire, Insulation
-
Width:
-
Customized Width
-
Certificate:
-
ISO9001
-
MOQ:
-
100 Meters
-
Package:
-
Customized Package
Quick Details
-
Application:
-
Construction, Factory, Pavement
-
Technique:
-
PULTRUTION
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
MINX
-
Model Number:
-
MIN-I-1
-
Surface Treatment:
-
SMOOTH, GRITTED TOP COVER, GRITTED SURFACE
-
Product name:
-
GRP/ FRP Fiberglass
-
Advantage:
-
High Strenth Less Weight
-
Sample:
-
Freely Supplied
-
Raw material:
-
Fiberglass and Resin
-
Thickness:
-
Customized Thickness
-
Feature:
-
Anti-Corrosion, Anti-Fire, Insulation
-
Width:
-
Customized Width
-
Certificate:
-
ISO9001
-
MOQ:
-
100 Meters
-
Package:
-
Customized Package
Product Description
corrosion-resistant fiberglass FRP Profiles /round tube/pipe
Fiberglass Reinforced Plastic (FRP) profiles are widely used in constructions
where environmental factors (including water, acid,weather influences) may affect
the materials and durability. The use of FRP profiles has various advantages
compared to the use of traditional materials as steel and wood. Fiberglass
Reinforced Plastic (GRP) profiles are high in strength, corrosion-resistant,
lightweight and have a long service life.
Product Display
|
Product name
|

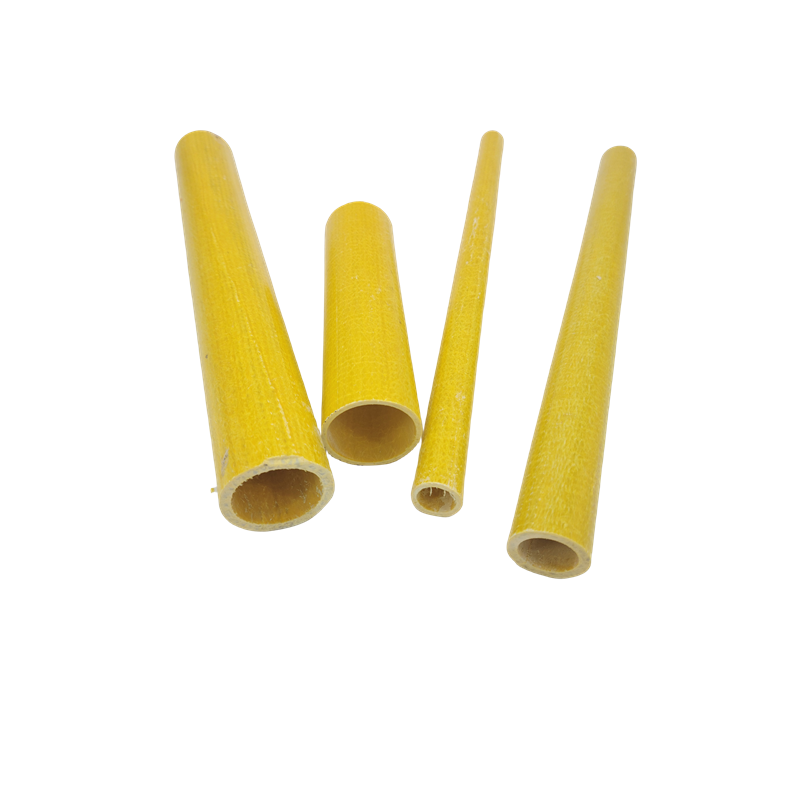

frp pipe Pultruded Fiberglass Hollow Round Tube
|
|
Material composition
|
Fiberglass roving,resin,filler
|
|
Resin type
|
GP, ISO, VE, PH
|
|
Color
|
Black , white , red , green , yellow , blue , grey or customized color
|
|
Surface
|
Smooth,GritFine grit,Concave,Grit cover,Chequer cover
|
|
Sample provide
|
Available
|
|
Certificate
|
ISO9001,SGS
|
|
Feature
|
Aging-Resistant,insulation,corrosion resistance
|
|
Size
|
Customised Size
|
|
Trade terms
|
EXW, FOB, CNF, CIF
|
|
Eco-Friendly
|
Yes
|
|
Shipping Way
|
By sea/air/express
|
Product Category
Features
|
High strength yet light weight:
|
Helps save on transportation
|
|
Corrosion resistant:
|
Won’t rot, rust or corrode
|
|
Fire-retardant and nonconductive:
|
Helps create a safer environment
|
|
Dimensionally stable:
|
Won’t shrink, swell, warp or bow
|
|
Virtually maintenance-free:
|
Durable and weather-resistant for a longer life cycle
|
|
Easy to fabricate and install:
|
Can be cut, drilled and assembled with standard tools
|
|
Non-leaching:
|
Does not require environmentally hazardous preservatives
|
PRODUCT SUPERIORITY
1. MATERIAL
Fiberglass tube is make of FRP composite material, which combined fiberglass and epoxy resin together to form epoxy fiberglass prepreg.
2.LIGHT WEIGHTHIGH STRENTH
Relative density between 1.5 -2.0, only 1/4-1/5 of carbon steel, but close to tensile strength, even than carbon steel, and it can be compared to the strength I advanced alloy steel
3.CORROSION RESISTANT
FRP is a kind of good corrosion resistant material, which has good corrosion resistance to atmosphere, water, acid, alkali, salt, oil, solvent and other media.
4.ÉLECTRICAL INSULATION
FRP is a good insulating material, so it was widly used to make insulators. It can maintain good dielectric property even under high frenquency
5.LONG SERVICE TIME
Under normal circumstances, FRP products service time could be as long as 50 years
Pultrusion FRP Fiberglass Profiles selling points:
1. Corrosion resistance: FRP can withstand different degrees of corrosion of various gas and liquid media such as acids, alkalis, organic solvents and salts, and will not rust. Has excellent corrosion resistance.
2. Light weight: light weight and high strength. It is easy to transport and install, saving time and effort.
3. Electrical insulation: Because the composite material has excellent electrical properties. Its products do not have electrochemical corrosion and stray current corrosion.
4. Heat resistance: low thermal conductivity, it is an excellent thermal insulation material, and it is an ideal thermal protection and ablation resistant material under instantaneous high temperature conditions.
5. Anti-aging: maintenance-free, long service life and high comprehensive benefit.
6. Good designability: customizable specifications and sizes, and various colors.
Specification
|
Product name
|
Size (mm)
|
Quality (kg/m)
|
|
I-beam
|
38*8*6
|
0.505
|
|
|
25*15*4
|
0.345
|
|
|
38*15*4
|
0.472
|
|
|
50*25*4
|
0.68
|
|
|
58*15*4
|
0.59
|
|
|
100*50*6
|
2.11
|
|
|
150*75*6
|
3.34
|
|
|
159*88* (6*10)
|
4.88
|
|
Mode
|
Dimension(mm)
|
|
Weight
|
|||
|
NO.
|
D
|
T
|
kg/m2
|
|||
|
MINX01
|
19
|
2.5
|
0.25
|
|||
|
MINX02
|
24
|
2.5
|
0.32
|
|||
|
MINX03
|
25.4
|
2.5
|
0.34
|
|||
|
MINX04
|
30
|
3
|
0.48
|
|||
|
MINX05
|
32
|
2.75
|
0.44
|
|||
|
MINX06
|
32
|
3
|
0.52
|
|||
|
MINX07
|
38
|
2.5
|
0.53
|
|||
|
MINX08
|
50
|
3
|
0.84
|
|||
|
MINX09
|
50
|
4
|
1.1
|
|||
|
MINX10
|
76
|
5
|
2.1
|
|||
|
MINX11
|
89
|
4.5
|
2.27
|
|||
|
MINX12
|
110
|
3
|
1.9
|
|||
|
We can be customized if you need.
|
|
|
|
|||
|
Mode
|
Dimension(mm)
|
|
|
|
Weight
|
|||||
|
NO.
|
A
|
B
|
T1
|
T2
|
kg/m2
|
|||||
|
MINX01
|
38
|
38
|
4
|
4
|
1.03
|
|||||
|
MINX02
|
50
|
50
|
4
|
4
|
1.42
|
|||||
|
MINX03
|
50
|
50
|
5
|
5
|
1.74
|
|||||
|
MINX04
|
50
|
50
|
6.4
|
6.4
|
2.12
|
|||||
|
MINX05
|
64
|
64
|
4
|
4
|
1.82
|
|||||
|
MINX06
|
64
|
64
|
6.4
|
6.4
|
2.8
|
|||||
|
MINX07
|
75
|
75
|
6
|
6
|
3.15
|
|||||
|
MINX08
|
76
|
76
|
6.4
|
6.4
|
3.39
|
|||||
|
MINX09
|
101
|
101
|
5
|
5
|
3.61
|
|||||
|
MINX10
|
101
|
101
|
6.4
|
6.4
|
4.61
|
|||||
|
We can be customized if you need.
|
|
|
|
|
|
|||||
|
Mode
|
Dimension(mm)
|
|
|
|
Weight
|
|||||
|
NO.
|
A
|
B
|
T1
|
T2
|
kg/m2
|
|||||
|
MINX01
|
50.5
|
36
|
7
|
6
|
1.4
|
|||||
|
MINX02
|
76
|
38
|
6.4
|
6.4
|
1.71
|
|||||
|
MINX03
|
102
|
35
|
4.8
|
4.8
|
1.48
|
|||||
|
MINX04
|
102
|
35
|
6
|
6
|
1.83
|
|||||
|
MINX05
|
152
|
42
|
6.4
|
6.4
|
2.74
|
|||||
|
MINX06
|
152
|
42
|
9.5
|
9.5
|
3.95
|
|||||
|
MINX07
|
200
|
60
|
10
|
10
|
5.7
|
|||||
|
MINX08
|
203
|
56
|
9.5
|
9.5
|
5.34
|
|||||
|
MINX09
|
254
|
70
|
12.7
|
12.7
|
8.9
|
|||||
|
We can be customized if you need.
|
|
|
|
|
|
|||||
Advantages:
1.Good dimensional stability
2.Good high and low temperature resistance
3.Good Electric Performance
4.Good Corrosion Resistance
5.Good Surface Properties
6.Various specifications and sizes are complete
|
Mechanical properties
|
|
|
|
Compressive strength (MPa)
|
450
|
|
|
Elongation at break (%)
|
2
|
|
|
E-modulus (MPa)
|
40
|
|
|
Electrical Properties
|
|
|
|
Dielectric stength vertical (kV/mm)
|
12
|
|
|
Dielectric strength horizontal (kV/mm)
|
50
|
|
|
Dissipation factor at 50 Hz
|
13 x 10-3
|
|
|
Dielectric constant rel. at 50 Hz
|
5,5
|
|
|
Other Properties
|
|
|
|
Continuous temperature (H)
|
180
|
|
|
Water absorption after 24h (%)
|
0,3
|
|
|
Glass content (%)
|
60-70
|
|
|
Density (g/cm³)
|
2,0
|
|
|
Thermal expansion (mm/m*K)
|
12 x 10-6
|
|
|
Fire behavior UL94, halogenfree
|
V0
|
|
|
ROHS, ELV and REACH conform
|
|
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Economic Packing desgin which will save your transportation cost;
Suitable packing material ( Non fumigaion ) and beautiful package workmanship which will well protect the goods and avoid any trouble when you pick up the goods from the local customs;
The samples shipped by international express & the mass production insulator shipped by sea or air.
Products application
Wide range of applications:
petrochemical, textile printing and dyeing, food processing, electronics industry, pharmaceutical manufacturing, power engineering, metal smelting, sewage treatment, transportation, machinery manufacturing, water plant breeding, beverage production, paper industry, shipbuilding, machinery manufacturing, Civil buildings, etc.
Specific uses include:
operating platforms, maintenance walkways, drilling platforms, floors, stair steps, equipment access, trench covers, pedestrian bridges, filler brackets, ship decks, scaffolding, ventilation fences, fences, corrosion-resistant shelves, etc.
