Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ONE INVERTER
-
Model Number:
-
TG-152
-
Input Voltage:
-
12/24/48VDC
-
Output Voltage:
-
110/120/220/230VAC
-
Output Current:
-
0-35A adjustable
-
Output Frequency:
-
50/60HZ
-
Size:
-
560*445*195mm
-
Certificate:
-
CE, FCC, EMC, ISO
-
Warranty:
-
1 Years
-
Weight:
-
18
-

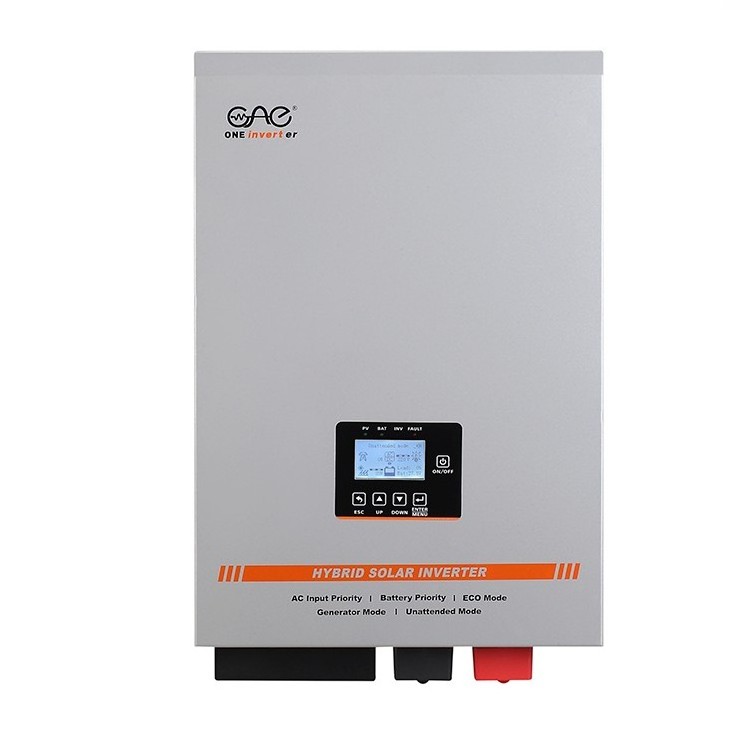

Product name:
-
MPPT solar inverter
-
Application:
-
Solar energy system
-
Output wave form:
-
Pure sine wave
-
Display:
-
LCD+LED Display
-
Efficiency:
-
90%
-
Rated power:
-
1.5kw to 6kw
-
Peak power:
-
Rated Power*3
-
Transformer:
-
Toroidal transformer
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
>90%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ONE INVERTER
-
Model Number:
-
TG-152
-
Input Voltage:
-
12/24/48VDC
-
Output Voltage:
-
110/120/220/230VAC
-
Output Current:
-
0-35A adjustable
-
Output Frequency:
-
50/60HZ
-
Size:
-
560*445*195mm
-
Certificate:
-
CE, FCC, EMC, ISO
-
Warranty:
-
1 Years
-
Weight:
-
18
-
Product name:
-
MPPT solar inverter
-
Application:
-
Solar energy system
-
Output wave form:
-
Pure sine wave
-
Display:
-
LCD+LED Display
-
Efficiency:
-
90%
-
Rated power:
-
1.5kw to 6kw
-
Peak power:
-
Rated Power*3
-
Transformer:
-
Toroidal transformer
Product Description
|
Model
|
TG-152
|
TG-202
|
TG-302
|
TG-402
|
TG-502
|
TG-602
|
||||||
|
Rated power
|
1.5KW
|
2KW
|
3KW
|
4KW
|
5KW
|
6KW
|
||||||
|
Surge power
|
4.5KW
|
6KW
|
9KW
|
12KW
|
15KW
|
18KW
|
||||||
|
AC Input & Output
|
|
|
|
|
|
|
||||||
|
Voltage
|
220VAC
|
|
|
|
|
|
||||||
|
Selectable Voltage Range
|
165-275VAC (220VAC)
|
|
|
|
|
|
||||||
|
Frequency Range
|
50Hz/60Hz automatic recognition
|
|
|
|
|
|
||||||
|
AC Voltage Regulation
(BATT. Mode) |
(DC Batt.mode)220vac±3%
|
|
|
|
|
|
||||||
|
Transfer Time
|
≤4ms
|
|
|
|
|
|
||||||
|
Wave Form
|
Pure Sine Wave
|
|
|
|
|
|
||||||
|
Transformer type
|
Toroidal
|
|
|
|
|
|
||||||
|
Transfer efficiency
|
≥85%
|
|
|
|
|
|
||||||
|
Battery
|
|
|
|
|
|
|
||||||
|
Battery Voltage
|
12V/24V
|
|
12V/24V/48V
|
24V/48V
|
|
|
||||||
|
Type
|
Gel/SLA/AGM/Water/Lithium(lifepo4) Battery
|
|
|
|
|
|
||||||
|
DC Charge Voltage
|
12~16VDC(12V)/20~32VDC(24V)/40~64VDC(48V)
|
|
|
|
|
|
||||||
|
Overcharge Protection
|
Battery voltage ≧16VDC (12V) ≧32VDC (24V) ≧64VDC (48V), stop charging after 60s alarm
|
|
|
|
|
|
||||||
|
Solar Charge & Ac Charger
|
|
|
|
|
|
|
||||||
|
Maximum PVArray Open Circuit Voltage
|
150VDC
|
|
|
|
|
|
||||||
|
Maximum Pv Array Power
|
600W(12V)/
1200W(24V) |
900W(12V)/
1700W(24V) |
900W(12V)/
1700W(24V)/ 3400W(48V) |
2300W(24V)/4500W(48V)
|
|
|
||||||
|
Maximum Ac Charge Current
|
35A(adjustable)
|
|
|
|
|
|
||||||
|
Maximum Solar Charge Current
|
40A MPPT
|
60A MPPT
|
|
60A/80A MPPT (optional)
|
|
|
||||||
|
Maximum Charging Current
|
75A
|
95A
|
|
115A
|
|
|
||||||
|
Working mode
|
|
|
|
|
|
|
||||||
|
01 mode
|
AC mains priority mode
|
|
|
|
|
|
||||||
|
02 mode
|
ECO mode
|
|
|
|
|
|
||||||
|
03 mode
|
DC battery priority mode
|
|
|
|
|
|
||||||
|
04 mode
|
Generator mode
|
|
|
|
|
|
||||||
|
05 mode
|
Unattended mode
|
|
|
|
|
|
||||||
|
Communication Port
|
|
|
|
|
|
|
||||||
|
Type
|
RS485, available for wifi box & external control screen
|
|
|
|
|
|
||||||
|
Physical
|
|
|
|
|
|
|
||||||
|
Dimension,
D*W*H(MM) |
560*440*190
|
|
|
650*440*220
|
|
|
||||||
|
G.W.(KGS)
|
18
|
21
|
25
|
34
|
36
|
38
|
||||||
|
Environment
|
|
|
|
|
|
|
||||||
|
Humidity
|
0~95%（NO CONDESNSATION)
|
|
|
|
|
|
||||||
|
Operating Temperature
|
0~60℃
|
|
|
|
|
|
||||||
|
Storage Temperature
|
0~60℃
|
|
|
|
|
|
||||||
|
*Product Specifications Are Subject To Change Without Further Notice
|
|
|
|
|
|
|
||||||
FAQ
Q1: Does your company also provide other solar products except for Pure Sine Wave Inverter?
A1: Yes, we also provide other solar products, like MPPT Solar Controller, poly solar panel, off grid solar inverter, on grid
inverter, battery, portable solar system, solar charger, and other accessories
related to the solar power system.
Q2: How to choose the right inverter?
A2: Tell us your demand, then our sales will recommend a suitable inverter to you.
Q3: How about the delivery time?
A3: 5 days for sample; 7-15 days for bulk order.
Q4: What is the warranty for the inverter?
A4: 2-year warranty.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
