Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1320 mm
-
Travel (Y Axis)(mm):
-
2530 mm
-
Repeatability (X/Y/Z) (mm):
-
0.04 mm
-
Spindle Motor Power(kW):
-
5.5kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ANBEN
-
Voltage:
-
AC380V/50HZ ( Optional: 220V )
-
Dimension(L*W*H):
-
1500*3000*200mm
-
Power (kW):
-
12
-
Weight (KG):
-
1400
-
Product name:
-
3D wood carving machine routeur cnc 1325 1530 2030 sale in Turkey
-
Working area:
-
1500*3000mm*200mm
-
Spindle:
-
HQD Water Cooling
-
Spindle power:
-
3.0 Kw 4.5KW 6.0KW
-
Control system:
-
NC Studio Control System
-
Motor:
-
Stepper Motor/FLl118
-
Transmission:
-
Taiwan HIWINLinear guide & Taiwan TBI Ball screw
-
Application:
-
CNC Router Wood Door Making
-
Software:
-
Ucancam / ArtCam/TYPE3/Power mill
Quick Details
-
Working Table Size(mm):
-
1500×3000
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
100 - 18000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1320 mm
-
Travel (Y Axis)(mm):
-
2530 mm
-
Repeatability (X/Y/Z) (mm):
-
0.04 mm
-
Spindle Motor Power(kW):
-
5.5kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ANBEN
-
Voltage:
-
AC380V/50HZ ( Optional: 220V )
-
Dimension(L*W*H):
-
1500*3000*200mm
-
Power (kW):
-
12
-
Weight (KG):
-
1400
-
Product name:
-
3D wood carving machine routeur cnc 1325 1530 2030 sale in Turkey
-
Working area:
-
1500*3000mm*200mm
-
Spindle:
-
HQD Water Cooling
-
Spindle power:
-
3.0 Kw 4.5KW 6.0KW
-
Control system:
-
NC Studio Control System
-
Motor:
-
Stepper Motor/FLl118
-
Transmission:
-
Taiwan HIWINLinear guide & Taiwan TBI Ball screw
-
Application:
-
CNC Router Wood Door Making
-
Software:
-
Ucancam / ArtCam/TYPE3/Power mill

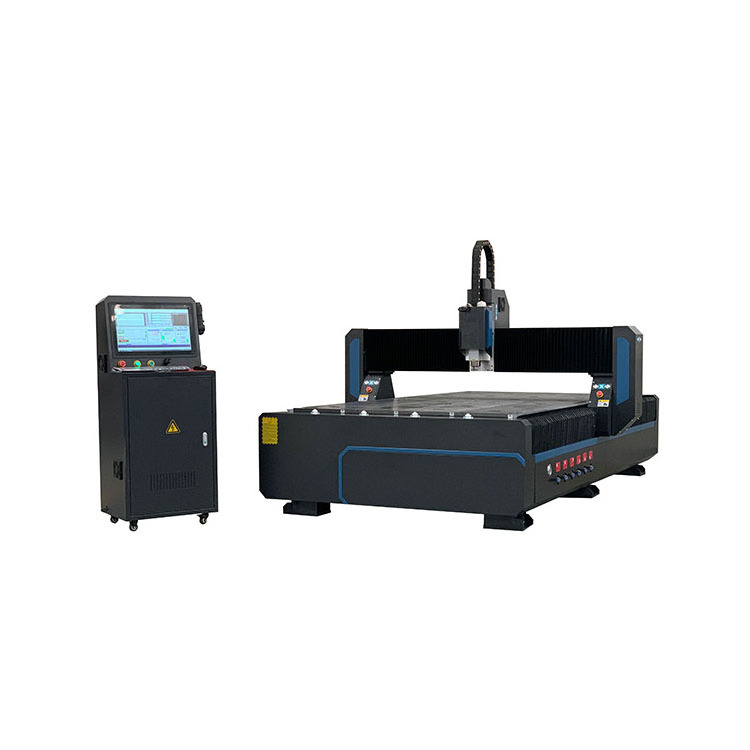

3D wood carving machine routeur cnc 1325 1530 2030 sale in Turkey
Features of cnc router wood :
--1300*2500*200mm working area.
--3 KW Hanqi water cooling spindle.
--3.7kw Fuling Inverter.
--NC Studio control system.
--Leadshine drive and FL118 Stepper motor.
|
3D wood carving machine routeur cnc 1325 1530 2030 sale in Turkey |
||||
|
Model |
AN1325 |
AN1530 |
AN2030 |
AN-Customize |
|
Working area(X*Y*Z) |
1300*2500*200mm |
1500*3000*200mm |
2000*3000*200mm |
Customize |
|
Table Surface |
T-slot Table / Vacuum & T-slot Table |
|||
|
Frame |
Heavy-duty Industrial class square tube strong structure |
|||
|
X, Y Structure |
Helical Rack and Pinion Drive, Taiwan PMI linear guide rails |
|||
|
Z Structure |
Taiwan TBI Ball Screw Drive, Taiwan PMI linear guide rails |
|||
|
Spindle Power |
3KW / 4.5KW / 5.5KW / 6KW / 7.5KW / 9KW-ATC |
|||
|
VFD Power |
3.7KW / 5.5KW / 7.5KW / 11KW |
|||
|
Operating System |
DSP control system / Nc Studio control system |
|||
|
Drive Motors |
Leadshine drive and FL118 stepper motors |
|||
|
Max. Rapid Travel Rate |
33000mm/min |
|||
|
Max. Working Speed |
23000mm/min |
|||
|
Cutting accuracy |
±0.03/1000mm |
|||
|
Working Voltage |
AC380V, 50Hz, 3PH (Option: 220V) |
|||
|
Command Language |
G Code |
|||
|
Software Compatibility |
Artcam / Power mill / Type 3 / Ucancam |
|||
1. Mold: wood,wax, wood, gypsum,foams,wax.
2. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3. The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4.Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper engraving and milling process.
