Quick Details
-
Machinery Capacity:
-
5L~2000L
-
Warranty of core components:
-
1 year
-
Application:
-
Bacterial,yeast,cell culture,vaccine etc.
-
Total volume:
-
15-2000L
-
Feeding volume:
-
30~70%
-
Control system:
-
PLC Simens
-
Vessel stainless steel:
-
Inside 316L ,jacket 304
-
Sterilization:
-
In site
-
PH sensor:
-
Mettler or Hamilton
-
DO sensor:
-
Mettler or Hamilton
-
Agitator motor:
-
SEW,Germany
-
Polishing precision:
-
Ra0.4~0.6
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Bailun
-
Weight:
-
300 KG
-
Machinery Capacity:
-
5L~2000L
-
Warranty of core components:
-
1 year
-
Application:
-
Bacterial,yeast,cell culture,vaccine etc.
-
Total volume:
-
15-2000L
-
Feeding volume:
-
30~70%
-
Control system:
-
PLC Simens
-
Vessel stainless steel:
-
Inside 316L ,jacket 304
-
Sterilization:
-
In site
-
PH sensor:
-
Mettler or Hamilton
-
DO sensor:
-
Mettler or Hamilton
-
Agitator motor:
-
SEW,Germany
-
Polishing precision:
-
Ra0.4~0.6

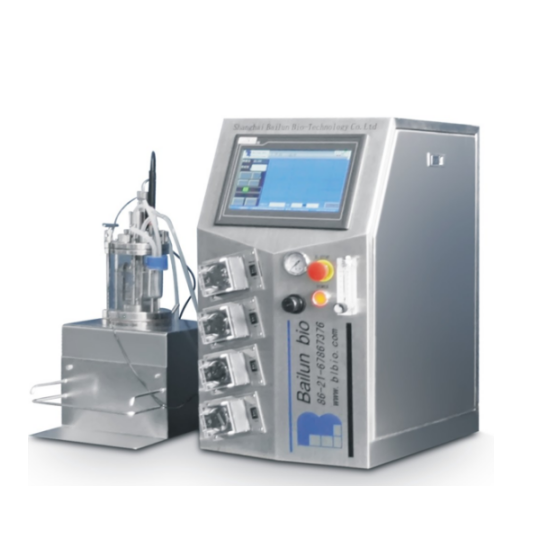

Products Description
Model
: BLBIO -GJ/GC/GJG/GJGG (off-site sterilization autoclave)
Working volume: 45%-70%
Material : Glass and 316L stainless steel
The diameter and hight ratio: 1:2-3
Mixing method : magnetic stirring or mechanical stirring one of the two optional
Control system : Siemens PLC, industrial LCD touch computer control, parameters can be set to store, can be remotely connected tothe computer through the USB interface, the data
Stirring system
Mechanical sealing system : high-powered stirring oar, anti foam oar;
AC electrical machine: infinite speed variation; rpm in the fermenter: 70~1200rpm±1%, the height of the stirring oar can be adjusted
Temperature detection and control
Heat by thermostatic water tank and circulate by circulating pump(Grundfos, Denmark), auto control (cooling water+5℃) to 65℃±0.1℃,temperature probe(PT100)
pH detection and control
2.00-12.00±0.05pH, autocontrol by adding acid and base, pH sensor ( Mettler/Hamilton,Switzerland ) and shielding lead (Mettler/Hamilton,Switzerland). fermenter is auto controlled with peristaltic pump
DO detection and control
0-150±3% displaying precision 0.1%, sensor ( Mettler/Hamilton,Switzerland ) and shielding lead( Mettler/Hamilton,Switzerland )
Feed control
Fermenter uses peristaltic pump (Spriax,UK) to add materials
Anti foam control
Tested by sensor and added anti foamer by peristaltic pump
Intake control (air) manual control rota meter
Working volume: 45%-70%
Material : Glass and 316L stainless steel
The diameter and hight ratio: 1:2-3
Mixing method : magnetic stirring or mechanical stirring one of the two optional
Control system : Siemens PLC, industrial LCD touch computer control, parameters can be set to store, can be remotely connected tothe computer through the USB interface, the data
Stirring system
Mechanical sealing system : high-powered stirring oar, anti foam oar;
AC electrical machine: infinite speed variation; rpm in the fermenter: 70~1200rpm±1%, the height of the stirring oar can be adjusted
Temperature detection and control
Heat by thermostatic water tank and circulate by circulating pump(Grundfos, Denmark), auto control (cooling water+5℃) to 65℃±0.1℃,temperature probe(PT100)
pH detection and control
2.00-12.00±0.05pH, autocontrol by adding acid and base, pH sensor ( Mettler/Hamilton,Switzerland ) and shielding lead (Mettler/Hamilton,Switzerland). fermenter is auto controlled with peristaltic pump
DO detection and control
0-150±3% displaying precision 0.1%, sensor ( Mettler/Hamilton,Switzerland ) and shielding lead( Mettler/Hamilton,Switzerland )
Feed control
Fermenter uses peristaltic pump (Spriax,UK) to add materials
Anti foam control
Tested by sensor and added anti foamer by peristaltic pump
Intake control (air) manual control rota meter
Product range
Our product range:
1, Glass fermenter from mini 0.2L to 40L,
2, Stainless steel fermenter for reasearch-pilot-industry like 2L-500L-5000L-500KL.
3, Relative device: Steam generator, Chiller, Air compressor, Tubular centrifuge, Disc centrifuge, Shaker,etc.
Fermenter/bioreactor application:
1, Animal vaccine production: Avian influenza vaccine, Porcine PRRS vaccine, Foot-and-mouth disease, Rabies vaccine, Mink vaccine,DTP vaccine, Diphtheria vaccine, Tetanus vaccine, etc.
2, Human vaccine production: Diphtheria vaccine, Tetanus vaccine, Meningitis vaccine, Pneumonia IV vaccine, Hepatitis B vaccine,etc.
3, Culture for microorganism (bacterial,fungi,yeast.etc), mammalian cell(293,CHO etc.), plant cell, algae, enzyme, protein,
additives, antibiotics etc.
Our Factory:
We have three bioreactor fermenter factories in China, one located in Shanghai, two located in Lianyungang city. Welcome to
visiting.
1, Glass fermenter from mini 0.2L to 40L,
2, Stainless steel fermenter for reasearch-pilot-industry like 2L-500L-5000L-500KL.
3, Relative device: Steam generator, Chiller, Air compressor, Tubular centrifuge, Disc centrifuge, Shaker,etc.
Fermenter/bioreactor application:
1, Animal vaccine production: Avian influenza vaccine, Porcine PRRS vaccine, Foot-and-mouth disease, Rabies vaccine, Mink vaccine,DTP vaccine, Diphtheria vaccine, Tetanus vaccine, etc.
2, Human vaccine production: Diphtheria vaccine, Tetanus vaccine, Meningitis vaccine, Pneumonia IV vaccine, Hepatitis B vaccine,etc.
3, Culture for microorganism (bacterial,fungi,yeast.etc), mammalian cell(293,CHO etc.), plant cell, algae, enzyme, protein,
additives, antibiotics etc.
Our Factory:
We have three bioreactor fermenter factories in China, one located in Shanghai, two located in Lianyungang city. Welcome to
visiting.
Other downstream products
Why Choose Us
Our advantages:
1. ISO/CE/ASME certificated bioreactor fermenter company.
2. Stable availability, complete specification,easy operation and installation.
3. Good after-sales service and quickly reply in 24 hours.
4. Can remote online checking if fermentor have problem during use.
5. Can make plant design and 3D drawing.
6. Professional, our main engineers have more than 22 years experience of fermentation system.
7. Reliable factory, established since 1998.
8. Good price good quality with beautiful shape.
9. Can do customize and OEM.
10. MOQ 1unit.
|
Our Service
|
Item
|
Data
|
||
|
After-Sales Service
* Training how to install the machine, training how to use the machine. * Engineers available to service machinery overseas. |
|
|
||
|
1
|
Desktop glass fermentation tank
|
3L, 5L, 7L, 10L
|
||
|
2
|
Desktop stainless steel fermentation tank
|
3L, 5L, 7L, 10L
|
||
|
3
|
Small/scale pilot fermentation tank
|
10L, 15L, 20L, 30L, 50L, 70L, 100L, 200L, 300L, 500L
|
||
|
4
|
Two union stainless steel fermentation tank
|
10L, 15L, 20L, 30L, 50L, 70L, 100L
|
||
|
5
|
Plant cell culture tank
|
3L, 5L, 7L, 10L
|
||
|
6
|
Animal cell culture tank
|
3L, 5L, 7L, 10L
|
||
|
7
|
Fermentation Engineering
|
1ton-100ton
|
||
Certificates
Payment&Delivery
FAQ
Q:Are you factory or trading company?
A:We are a factory.
Q:What's the MQQ?
A:1 unit.
Q:Do you offer overseas service?
A:Yes,We are dispatch engineer to overseas.
Q:Can we visiting your factory?
A:Yes,warmly welcome.
Q:How about your delivery time?
A:1 week to 3 months.Depend on the size and quantity.
A:We are a factory.
Q:What's the MQQ?
A:1 unit.
Q:Do you offer overseas service?
A:Yes,We are dispatch engineer to overseas.
Q:Can we visiting your factory?
A:Yes,warmly welcome.
Q:How about your delivery time?
A:1 week to 3 months.Depend on the size and quantity.
