Quick Details
-
Dimensions(L*W*H):
-
900*750*1900 mm
-
Weight:
-
230 KG
-
Drive:
-
Hydraulic, frequency conversion motor
-
Printing color:
-
single/ multicolor
-
The maximum printing speed:
-
150-200pcs / hr
-
Control system:
-
PLC
-
Item count:
-
Yes
-
Speed regulation:
-
Yes
-
Hot stamping temperature:
-
0-300℃
-
Hot stamping pressure:
-
≤2000kgf
-
Rubber roller size:
-
250*280mm
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LC
-
Voltage:
-
110UV/ 220V
-
Dimensions(L*W*H):
-
900*750*1900 mm
-
Weight:
-
230 KG
-
Drive:
-
Hydraulic, frequency conversion motor
-
Printing color:
-
single/ multicolor
-
The maximum printing speed:
-
150-200pcs / hr
-
Control system:
-
PLC
-
Item count:
-
Yes
-
Speed regulation:
-
Yes
-
Hot stamping temperature:
-
0-300℃
-
Hot stamping pressure:
-
≤2000kgf
-
Rubber roller size:
-
250*280mm
-
Certification:
-
CE
Product Description

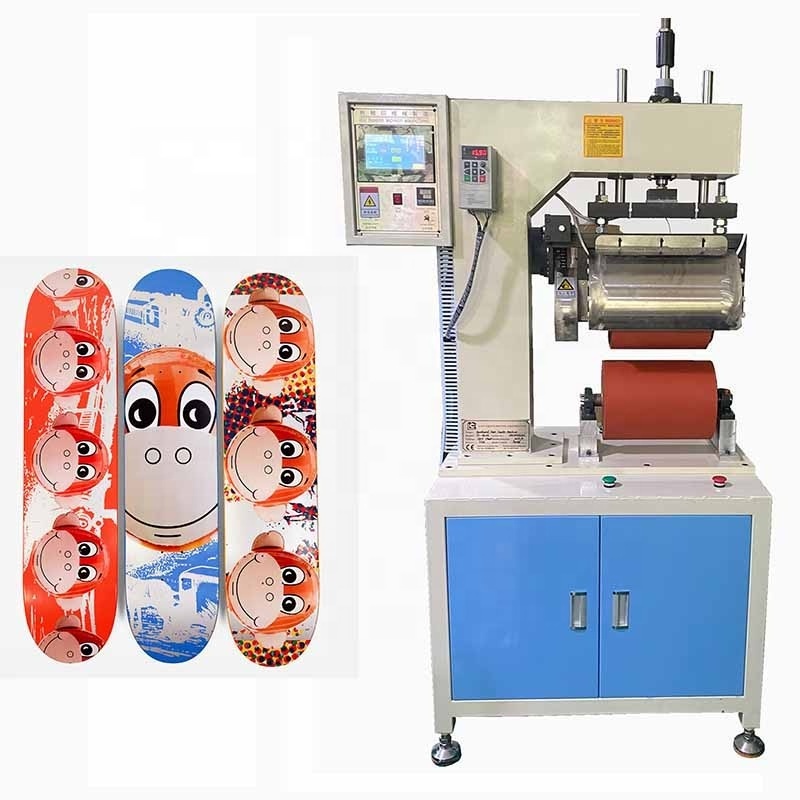

Heat Transfer Printing Machine For Skateboard
Features:
1. PLC programmable controller, high sensitivity, touch screen operation interface, simple and convenient.
2 adopt 2P hydraulic pressure cylinder to press down, with high transfer pressure.
2 adopt 2P hydraulic pressure cylinder to press down, with high transfer pressure.
4. The oil cylinder drives up and down with an adjustable stroke of 75MM.
5. Temperature and transfer time can be adjusted;High precision, excellent stability of the whole machine.
6. The height of hot stamping head can be adjusted;Heat pipe adopts single heat conduction in series, so that the hot stamping head temperature is uniform.
6. The height of hot stamping head can be adjusted;Heat pipe adopts single heat conduction in series, so that the hot stamping head temperature is uniform.
Specifications
|
Model number
|
TH-280SK
|
Up and down stroke of hydraulic cylinder
|
75mm
|
|
Printing color
|
single/multicolor
|
Maximum workpiece height
|
50mm
|
|
Heating power
|
4100W
|
Hot stamping temperature
|
0~ 300℃
|
|
Net weight
|
230KG
|
Hot stamping pressure
|
≤ 2000kGF
|
Machine Photos
Notice
Machine operation safety performance:
1. Skateboard single-head heat transfer printing machine, in line with the latest engineering style. After the setting program stops the main power supply, the perm motor will be cut off automatically after working for 50 minutes (to protect the rubber roller from being burnt out in the high temperature state).
It is absolutely reliable to use as required.
2.The machine is equipped with an emergency switch: press the emergency switch when there is an emergency, the machine will immediately power off.
3.Return to the starting position, and when the matter is handled, twist the emergency switch, it can be safely started back to normal.
2.The machine is equipped with an emergency switch: press the emergency switch when there is an emergency, the machine will immediately power off.
3.Return to the starting position, and when the matter is handled, twist the emergency switch, it can be safely started back to normal.
Notes:
(1) When the machine needs to be moved or repaired, the power supply and air source must be cut off.
(2) When adjusting or cleaning the oil scraping, please follow the steps.
(3) Enhance fire awareness and equip with fire fighting equipment.
