5KVA 10KVA 15KVA Pole Mounted Distribution conventional Transformer 10kva 25kva 37.5Kva Single Phase Pole Mounted Transformer
5KVA 10KVA 15KVA Pole Mounted Distribution conventional Transformer 10kva 25kva 37.5Kva Single Phase Pole Mounted Transformer
5KVA 10KVA 15KVA Pole Mounted Distribution conventional Transformer 10kva 25kva 37.5Kva Single Phase Pole Mounted Transformer
5KVA 10KVA 15KVA Pole Mounted Distribution conventional Transformer 10kva 25kva 37.5Kva Single Phase Pole Mounted Transformer
5KVA 10KVA 15KVA Pole Mounted Distribution conventional Transformer 10kva 25kva 37.5Kva Single Phase Pole Mounted Transformer
5KVA 10KVA 15KVA Pole Mounted Distribution conventional Transformer 10kva 25kva 37.5Kva Single Phase Pole Mounted Transformer
5KVA 10KVA 15KVA Pole Mounted Distribution conventional Transformer 10kva 25kva 37.5Kva Single Phase Pole Mounted Transformer
5KVA 10KVA 15KVA Pole Mounted Distribution conventional Transformer 10kva 25kva 37.5Kva Single Phase Pole Mounted Transformer

5KVA 10KVA 15KVA Pole Mounted Distribution conventional Transformer 10kva 25kva 37.5Kva Single Phase Pole Mounted Transformer

FOB Reference Price: Get Latest Price
≥5 Pieces
US $500
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Coil Number:
AUTOTRANSFORMER
Place of Origin:
Zhejiang, China
Brand Name:
Sourceway
Model Number:
Conventional Type/CSP Type
Product name:
single phase Pole Mounted Transformer
Usage:
Power distribution
Type:
Oil immersed
Frequency:
50/60Hz
Coil Material:
Copper/Aluminum
Core material:
Silicon Steel/Amorphous alloy coil core
Primary voltage:
12.4/13.2/13.8/34.5kv
Vector Group:
Dyn11/Yyn0/Yd11/YNd11

Quick Details

Use:
Power
Phase:
Single
Coil Structure:
TOROIDAL
Coil Number:
AUTOTRANSFORMER
Place of Origin:
Zhejiang, China
Brand Name:
Sourceway
Model Number:
Conventional Type/CSP Type
Product name:
single phase Pole Mounted Transformer
Usage:
Power distribution
Type:
Oil immersed
Frequency:
50/60Hz
Coil Material:
Copper/Aluminum
Core material:
Silicon Steel/Amorphous alloy coil core
Primary voltage:
12.4/13.2/13.8/34.5kv
Vector Group:
Dyn11/Yyn0/Yd11/YNd11
Transformer Introduction

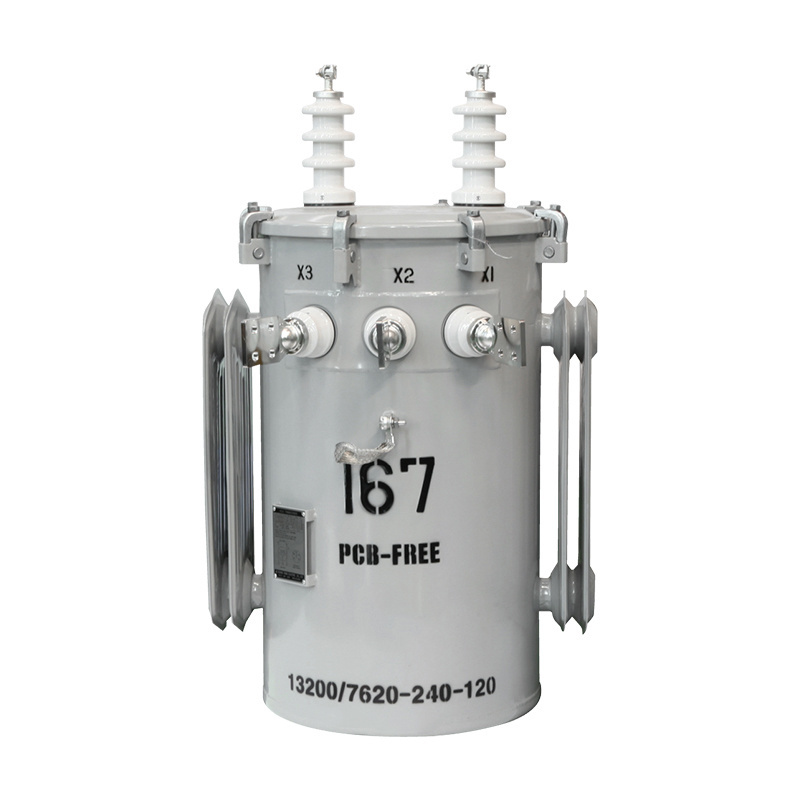

Single Phase Pole Mounted Distribution Transformer
Technical Description:

Type: Conventional type/CSP type Rated power: up to 333 kVA Primary voltage: up to 34.5 kV Secondary voltages up to 500 V Standards: IEEE/ANSI/CSA/IEC/DOE

Technical Data For Single Phase Pole Mounted Transformer Conventional Type
Rate power
High voltage
Low voltage
No load losses(w)
On load losses(w)
Weight(kg)
10kVA



34500/19920V
13800/7957V
13200/7620V
12470/7200V
or others



120-240V
240-480V
347V-600V
36
120
150
15kVA
50
195
210
25kVA
80
290
258
37.5kVA
105
360
340
50kVA
135
500
395
75kVA
190
650
480
100kVA
210
850
583
167kVA
350
1410
680
Technical Data For Single Phase Pole Mounted Transformer CSP Type
Rate power
High voltage
Low voltage
No load losses(w)
On load losses(w)
Weight(kg)
10kVA


34500/19920V
13800/7957V
13200/7620V
12470/7200V
or others


120-240V
240-480V
347V-600V
50
120
150
15kVA
65
195
205
25kVA
105
290
245
37.5kVA
140
360
335
50kVA
180
500
370
75kVA
250
650
505
