Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
RUNZE
-
Model Number:
-
SY-08
-
Place of Origin:
-
Jiangsu, China
-
Structure:
-
syringe pump
-
Power:
-
15W
-
Accuracy:
-
≤1% (rated stroke)
-
Precision (Repeatability):
-
0.3%-0.7% (rated stroke)
-
Maximum speed:
-
700/800rpm
-
Channel:
-
Single channel
-
Communication interface:
-
RS232/RS485/CAN
-
Motor:
-
0.9°stepper motor
-
Operating temperature:
-
5~55℃
-
Connection:
-
1/4-28UNF thread
Quick Details
-
Application:
-
petroleum detection & biopharmaceutical extraction, blood analyzer, laboratory & medical analysis, automatic biochemical analyze
-
Pressure:
-
Low Pressure
-
Voltage:
-
DC24V/3A
-
Warranty:
-
1 year
-
Brand Name:
-
RUNZE
-
Model Number:
-
SY-08
-
Place of Origin:
-
Jiangsu, China
-
Structure:
-
syringe pump
-
Power:
-
15W
-
Accuracy:
-
≤1% (rated stroke)
-
Precision (Repeatability):
-
0.3%-0.7% (rated stroke)
-
Maximum speed:
-
700/800rpm
-
Channel:
-
Single channel
-
Communication interface:
-
RS232/RS485/CAN
-
Motor:
-
0.9°stepper motor
-
Operating temperature:
-
5~55℃
-
Connection:
-
1/4-28UNF thread
Product Description
Product Description
SY-08 Syringe Pump is a fully programmable, small compact size, high-precision liquid handling micro industrial pump module with stable performance & long service life, developed by RUNZE Company. Controlled by a host controlling system (external computer, microprocessor, PLC, etc.), the clockwise or counterclockwise circular motion of the stepper motor is converted into linear motion through the trapezoidal screw rod, which makes the syringe pump piston move up and down linearly to achieve aspirating and dispensing functions.'
Product Features

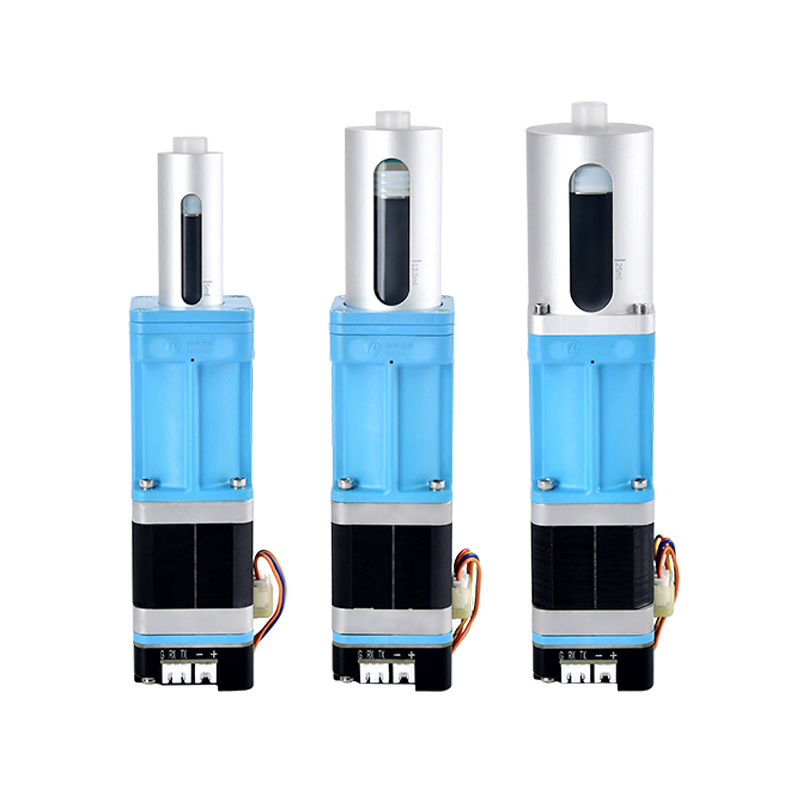

With 5ml/12.5ml/25ml , three specification syringe, SY-08 syringe pump is widely used in liquid transferring system with
high-precision and high-stability sampling requirements, such as laboratory instrument, medical analysis equipment,
chromatographic analyzer, automatic biochemical analyzer, blood analyzer, trace element analyzer, electrolytic analyzer, food & beverages detection and analysis system, water quality on-line analyzer, petroleum detection equipment and biopharmaceutical extraction devices.
high-precision and high-stability sampling requirements, such as laboratory instrument, medical analysis equipment,
chromatographic analyzer, automatic biochemical analyzer, blood analyzer, trace element analyzer, electrolytic analyzer, food & beverages detection and analysis system, water quality on-line analyzer, petroleum detection equipment and biopharmaceutical extraction devices.
Specification
|
Accuracy
|
≤1%@100% stroke
|
|
Precision (Repeatability)
|
0.3%-0.7%@100% stroke
|
|
Rated Stroke
|
30mm(12000 steps)
|
|
Maximum Speed
|
600rpm
|
|
Linear Speed
|
0.017 mm/s-10mm/s
|
|
Running Time (per rated stroke)
|
3s-1800s
|
|
Resolution
|
0.0025mm/per step
|
|
Syringe Configuration
|
5ml,12.5ml,25ml(It will be added later)
|
|
Wetted Material
|
Borosilicate glass, PCTFE valve head, PTFE
|
|
Channel
|
single Chiannel
|
|
Max. Pressure Rating
|
0.8mpa
|
|
Connection
|
1/4-28UNF
|
|
Communication Rate
|
RS232/485 bus:9600bps,19200bps,38400bps,57600bps,115200bps
CAN bus:100kbps,200kbps,500kbps,1Mpbs |
|
Device Address and Parameter Settings
|
Communication Interface
|
|
Power Supply
|
DC24V/3A
|
|
Operating temperature
|
5℃-55℃
|
|
Operating humidity
|
<80% relative humidity, non-condensing
|
|
Dimension (L*W*H)
|
42*42*192.8mm/42*42*201.8mm/42*42*201.8mm
|
|
Net Weight
|
0.56kg/0.62kg/0.66kg
|
