Quick Details
-
shape:
-
cyclinder
-
material:
-
al2o3
-
Product name:
-
92 al2o3 high purity alumina ceramic grinding cylindrical media/column
-
Density:
-
3.63g/cm3
-
Mode of Shaped:
-
Rolling, isostatic pressing
Quick Details
-
Material:
-
Alumina Ceramic
-
purity:
-
90%-95%
-
color:
-
white
-
shape:
-
cyclinder
-
material:
-
al2o3
-
Product name:
-
92 al2o3 high purity alumina ceramic grinding cylindrical media/column
-
Density:
-
3.63g/cm3
-
Mode of Shaped:
-
Rolling, isostatic pressing
1. Brief Introduction:
With overwhelming merits in higher density, more regular shape, easily classifying and assorting,superior grinding efficiency and competitive price prior to natural cobble stones and conventional grinding media,92 al2o3 high purity alumina ceramic grinding cylindrical media are excellent for grinding processing of many industries. .
2. Common Specification:
Technical Index :
| Items | Index |
| Name | 92 al2o3 high purity alumina ceramic grinding cylindrical media |
| Al 2 O 3 Content | ≥92% |
| SiO 2 | ≤7% |
| CaO + MgO+ Fe 2 O 3 +Others | 2% |
| Bulk Density | ≥3.62g/cm 3 |
| Water Absorption | ≤0.01% |
| Hardness | 9 Mohs |
| Self Wear Rate | ≤0.01% (24h) |
Alumina ceramic grinding media ball:
| Dia.(mm) | Φ60-70 | Φ50 | Φ40 | Φ30 | Φ25 | Φ20 | Φ10-Φ15 | Φ3-Φ10 |
| Tolerance (mm) | ±2 | ±2 | ±2 | ±1.5 | ±1.5 | ±1.5 | ±1 | ±0.5 |

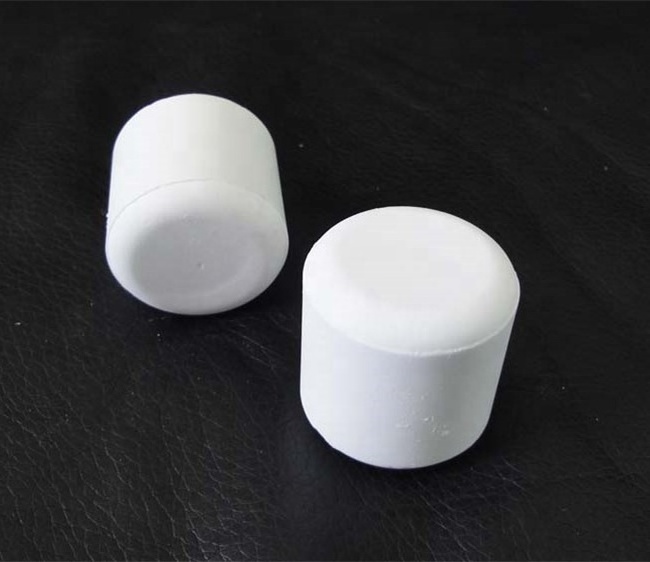

Alumina ceramic grinding cylinder:
| Specification (mm) | Diameter (mm) | Height (mm) |
| Φ16*16 | 16 | 16 |
| Φ20*20 | 20 | 20 |
| Φ23*23 | 23 | 23 |
| Φ25*25 | 25 | 25 |
| Φ30*30 | 30 | 30 |
| Φ60*60 | 60 | 60 |
Note: As the grinding media, at a comparable weight with grinding balls, alumina ceramic cylinders have an approx.14% greater surface than alumina ceramic grinding ball.
