Outer tank: Galvanized steel 0.31mm
Water tank size: 360/456
Insulation: Polyurethane 50mm, 32kg/m3
- Product Details
- {{item.text}}
Quick Details
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Housing Material:
-
Galvanized steel
-
Capacity:
-
120
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
uniepu
-
Model Number:
-
UNP-GI02-12
-
Product name:
-

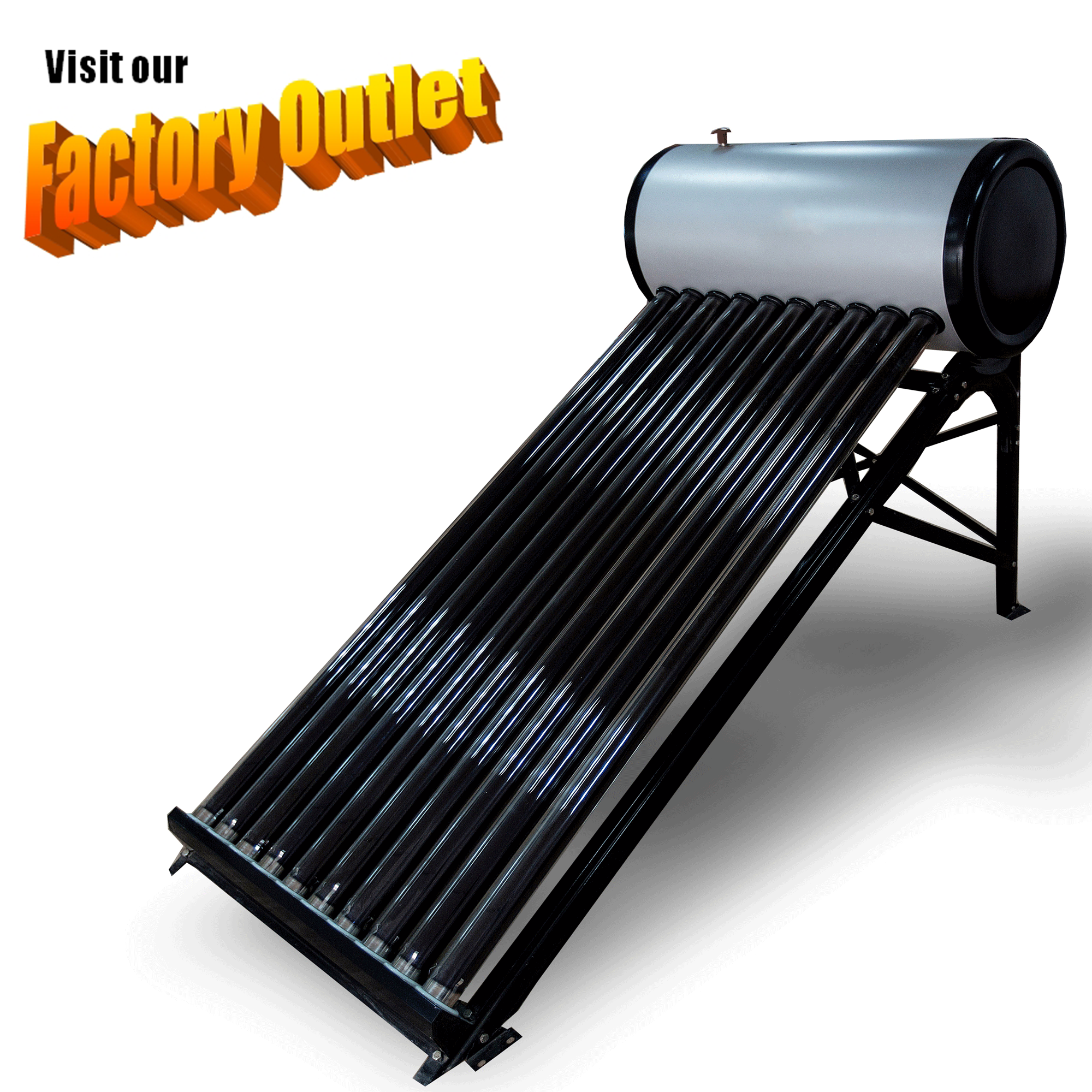

Unpressurized Evacuated Tube Solar Water Heaters
-
OEM/ODM:
-
output 450 sets per day
-
Foaming Density:
-
32Kgs/M3
-
Insulation layer:
-
Polyurethane
-
Collector type:
-
High Efficiency Glass Tube
-
Size:
-
Customized Size
-
Market:
-
Mexico,Peru,Ecuador,Argentina
-
Frame:
-
Galvanized steel 1.5mm
-
Name:
-
solar geyser
Quick Details
-
Warranty:
-
3 years
-
Application:
-
Outdoor, Hotel, Commercial, Household
-
Type:
-
Evacuated Tube
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Housing Material:
-
Galvanized steel
-
Capacity:
-
120
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
uniepu
-
Model Number:
-
UNP-GI02-12
-
Product name:
-
Unpressurized Evacuated Tube Solar Water Heaters
-
OEM/ODM:
-
output 450 sets per day
-
Foaming Density:
-
32Kgs/M3
-
Insulation layer:
-
Polyurethane
-
Collector type:
-
High Efficiency Glass Tube
-
Size:
-
Customized Size
-
Market:
-
Mexico,Peru,Ecuador,Argentina
-
Frame:
-
Galvanized steel 1.5mm
-
Name:
-
solar geyser
Sample And Demo Available!
Detail Date
|
Non-pressure Type Solar Water Heater GI02
|
|
|
|
|
|
|||||
|
MODEL
|
Absorb Area
(m2)
|
Vacuum Tube
|
|
TankCapacity(L)
|
Qty-20'/40'/40HQContainer(set)
|
|||||
|
|
|
Spec.(mm)
|
No:(pcs)
|
|
|
|||||
|
UNP-GI02-8
|
0.64
|
58&1800mm
|
8
|
96
|
106/212/252
|
|||||
|
UNP-GI02-10
|
0.8
|
58&1800mm
|
10
|
119
|
89/178/210
|
|||||
|
UNP-GI02-12
|
0.96
|
58&1800mm
|
12
|
141
|
76/152/180
|
|||||
|
UNP-GI02-15
|
1.97
|
58&1800mm
|
15
|
175
|
43/86/100
|
|||||
|
UNP-GI02-18
|
2.36
|
58&1800mm
|
18
|
209
|
39/82/96
|
|||||
|
UNP-GI02-20
|
2.62
|
58&1800mm
|
20
|
231
|
34/72/84
|
|||||
|
UNP-GI02-24
|
3.15
|
58&1800mm
|
24
|
276
|
31/65/77
|
|||||
|
UNP-GI02-30
|
3.95
|
58&1800mm
|
30
|
344
|
22/50/58
|
|||||
|
UNP-GI02-36
|
4.75
|
58&1800mm
|
36
|
412
|
16/40/43
|
|||||
01. UNP-GI02 Standard Specification
Inner tank: Stainless steel 304 0.41mm
Material: Galvanized steel 1.5mm
Shape: Type 7
Angle: From 20° To 45°
Screw: Stainless steel 201 M6 (M8 for option)
Material:
Galvanized steel 0.5mm
Color: Same as the frame
Material: High borosilicate 3.3
Coating: ALN/AL N-SS/Cu
Color: Blue
Efficiency: ＞91%
Weight: 1.95kgs
02. Customization Options
