The Gigabit fiber media converter provides a cost-efficient way to connect your Ethernet network to remote devices over a fiber
backbone. It features an open SFP slot that lets you choose the MSA-compliant Gigabit SFP that best suits your fiber connection
mode (single / multimode) and distance requirements.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
foclink
-
production name:
-
fiber optic media converter
-
Transmission Speed:
-
10 / 100 / 1000Mbps
-
Fiber Wave Length:
-
1310nm/1550nm
-
Quality:
-
high quality fiber media converter
-
Network Port:
-
RJ45
-
Receiving sensitivity:
-
≤-37
-
Bit Error Rate:
-
less 1/1000000000
-
Light power:
-
0~-40
-
Operating Temperature:
-
-20~55℃
-
Power standard:
-
Input:AC220V Output:DC5V 1.2A
-
Use:
-
FTTH
Quick Details
-
Type:
-
Fiber Optic Transceivers
-
Model Number:
-
fiber media converter
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
foclink
-
production name:
-
fiber optic media converter
-
Transmission Speed:
-
10 / 100 / 1000Mbps
-
Fiber Wave Length:
-
1310nm/1550nm
-
Quality:
-
high quality fiber media converter
-
Network Port:
-
RJ45
-
Receiving sensitivity:
-
≤-37
-
Bit Error Rate:
-
less 1/1000000000
-
Light power:
-
0~-40
-
Operating Temperature:
-
-20~55℃
-
Power standard:
-
Input:AC220V Output:DC5V 1.2A
-
Use:
-
FTTH

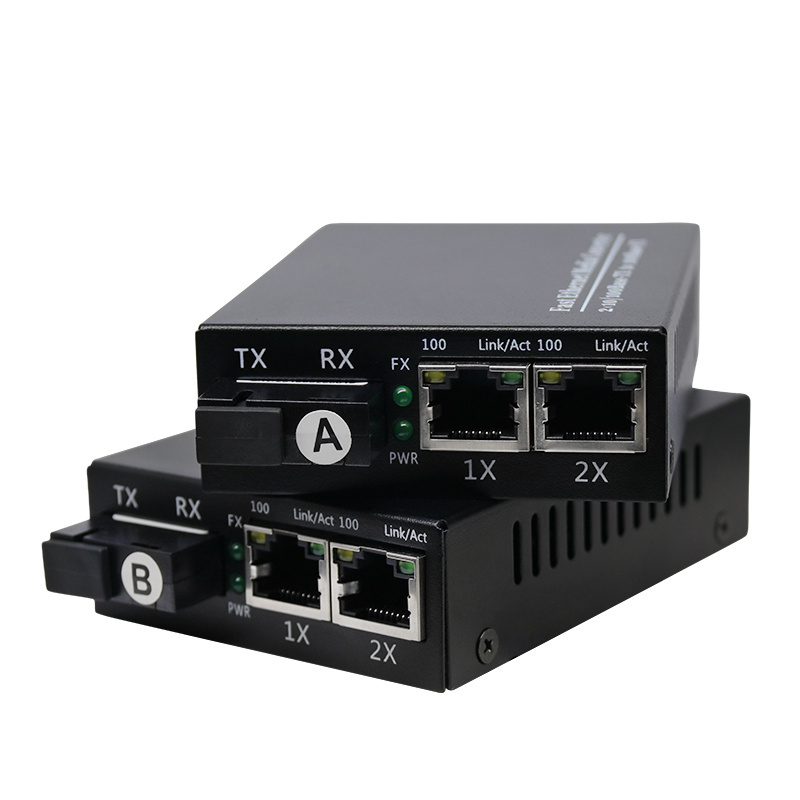

10 100 1000 SC Ethernet Dual Fiber Optic Media Converter
Media converters can be used anywhere in the network to integrate newer technology with existing equipment to support new applications, technologies and future growth. Instead of costly, across-the-board upgrades, media converters can extend the productive life of the existing cabling as well as the active equipment.
Product Description
A cost-effective extension and flexible performance
A versatile way to connect different networks
Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different
speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices,
allowing you to maximize the usage and performance of legacy equipment.
speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices,
allowing you to maximize the usage and performance of legacy equipment.
Converter Features：
1. Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex.
2. The UTP port supports the connection of MDI/MDI-X auto crossover.
3. Singlemode Fiber: the max distance up to 60km
4. Supporting the max 1536 byte Ethernet packet
5. Supporting flow control
6. Adopting internal power supply
2. The UTP port supports the connection of MDI/MDI-X auto crossover.
3. Singlemode Fiber: the max distance up to 60km
4. Supporting the max 1536 byte Ethernet packet
5. Supporting flow control
6. Adopting internal power supply
Technical Information：
1. Operating standards: IEEE802.3z/AB, 1000Base-T and 1000Base-SX/LX
2. Ambient temperature: 0 ~ +50°C Storage temperature: -20 ~ +70°C Humidity: 5% ~ 90%
3. Connector: UTP: RJ-45,10/100/1000Mbps; Fiber: SC,1000Mbps
4. Cable : UTP cable: Cat 5e or Cat 6 (the max distance up to 100m)
Fiber : singlemode : 8.3/125, 8.7/125, 9/125μm (distance 20-100km)
5. Flow control: Full Duplex: IEEE802.3x Half Duplex: back pressure
6. Power: DC 48V to DC 5V
7. MAC address table: 4K
8. Data Buffer: 256K
2. Ambient temperature: 0 ~ +50°C Storage temperature: -20 ~ +70°C Humidity: 5% ~ 90%
3. Connector: UTP: RJ-45,10/100/1000Mbps; Fiber: SC,1000Mbps
4. Cable : UTP cable: Cat 5e or Cat 6 (the max distance up to 100m)
Fiber : singlemode : 8.3/125, 8.7/125, 9/125μm (distance 20-100km)
5. Flow control: Full Duplex: IEEE802.3x Half Duplex: back pressure
6. Power: DC 48V to DC 5V
7. MAC address table: 4K
8. Data Buffer: 256K
Specification
10/100/1000M Dual fiber
|
Connector type
|
SC
|
SC
|
SC
|
SC
|
SC
|
|
Fiber type
|
Multi-mode
|
Single-mode
|
Single-mode
|
Single-mode
|
Single-mode
|
|
Wavelength
|
850nm
|
1310nm
|
1310nm
|
1550nm
|
1550nm
|
|
Max Distance |
62.5µm: 224m
|
20Km |
40Km |
60Km |
80Km |
|
|
50µm: 550m
|
|
|
|
|
|
Min TX PWR
|
-11.0dBm
|
-9.0dBm
|
-4.0dBm
|
-8.0dBm
|
-3.0dBm
|
|
Max TX PWR
|
-6.0dBm
|
-5.0dBm
|
0dBm
|
0dBm
|
0dBm
|
|
Sensitivity
|
< -18dBm
|
< -21dBm
|
< -24dBm
|
< -25dBm
|
< -25dBm
|
|
Link Budget
|
7.0dBm
|
12.0dBm
|
20.0dBm
|
17.0dBm
|
22.0dBm
|
10/100/1000M single fiber
|
Connector type
|
SC
|
SC
|
SC
|
SC
|
|
Fiber type
|
Single-mode
|
Single-mode
|
Single-mode
|
Single-mode
|
|
Wavelength
|
1310/1550nm
|
1310/1550nm
|
1310/1550nm
|
1490/1550nm
|
|
Max Distance
|
20Km
|
40Km
|
60Km
|
80Km
|
|
Min TX PWR
|
-10.0dBm
|
-4.0/-8dBm
|
0/-5.0dBm
|
-1dBm
|
|
Max TX PWR
|
-4.0dBm
|
0dBm
|
3/0dBm
|
3dBm
|
|
Sensitivity
|
< -22dBm
|
< -25dBm
|
< -25dBm
|
< -25dBm
|
|
Link Budget
|
12.0dBm
|
20/17dBm
|
25/20dBm
|
24.0dBm
|
Details Images
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
