Quick Details
-
Brand Name:
-
AP&T
-
Model Number:
-
AP-DC2452-60C
-
Product name:
-
de industrial hot static control ionized air blowers for sale
-
Input Voltage:
-
AC 220V /50Hz or 110V/60 Hz
-
Power:
-
15W
-
Discharge speed:
-
≤3S
-
Application:
-
electronics, semiconductors,
-
Effective working range:
-
600*300*750(L*W*H)
-
Ion balance:
-
≤ |±10V |
-
Noise:
-
≤ 55db
-
Air volume:
-
0~95CFM
-
Net weight:
-
3350g
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
AP&T
-
Model Number:
-
AP-DC2452-60C
-
Product name:
-
de industrial hot static control ionized air blowers for sale
-
Input Voltage:
-
AC 220V /50Hz or 110V/60 Hz
-
Power:
-
15W
-
Discharge speed:
-
≤3S
-
Application:
-
electronics, semiconductors,
-
Effective working range:
-
600*300*750(L*W*H)
-
Ion balance:
-
≤ |±10V |
-
Noise:
-
≤ 55db
-
Air volume:
-
0~95CFM
-
Net weight:
-
3350g

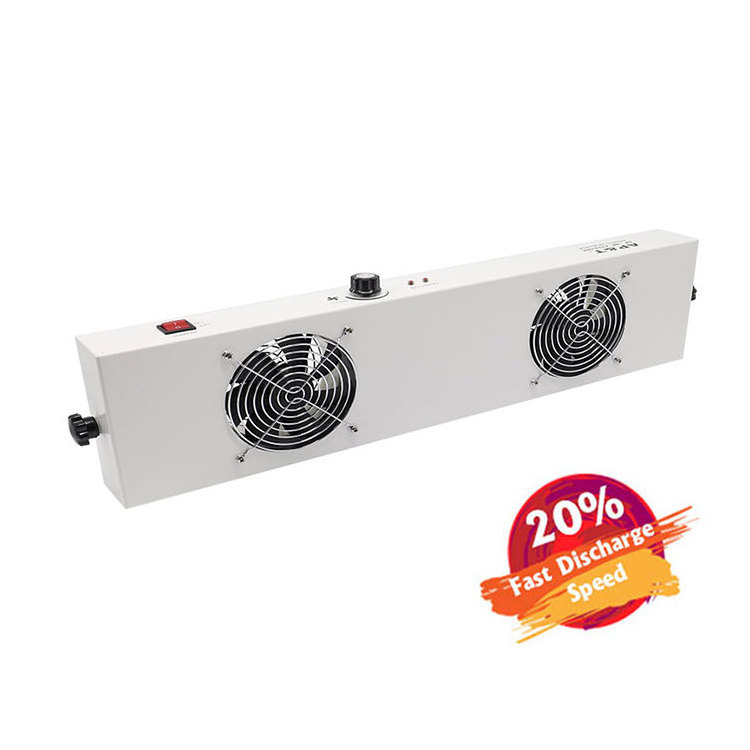

AP-DC2452-60C-1 de industrial hot static control ionized air blowers for sale
AP-DC2452-60C overhead ionizing blower is one of the ionizing blower product series manufactured by Shanghai Anping Static Science&Technology Co.,Ltd.,
AP-DC2452-60C overhead ionizing air blower applies the DC current ion synchronous transmitting technology. High volume of positive and negative ion are generated by two independent transmitting electrode with direct current corona discharge and arrive the object surface where the static to be eliminated most equally. Eliminate static and control the remaining static under international standard.
AP-DC2452-60C is widely used in electronics,plastic,chemical,printing and optics industry etc.
Technical specifications
|
Model |
AP-DC2452-60C |
|
Input voltage |
AC220V / 50Hz or 110V / 60Hz |
|
Power |
15W |
|
Operating Voltage |
±DC4000-DC7000V |
|
Ion emission |
Steady DC |
|
Emitter electrode |
Tungsten alloy |
|
Discharge structure |
Uncoupled electrical contact (discharge cylinder) |
|
Discharge range |
600*300*750mm ( L*W*H ) |
|
Discharge speed |
≤3s (450mm perpendicular to the center of the air outlet) |
|
Ion balance |
-15V ~ + 15V (450mm perpendicular to the center of the air outlet |
|
Alarm indication |
The power indicator is on and working normally |
|
Air volume |
≤2*89.1CFM |
|
Audio noise |
≤55db (150mm away from the air outlet) |
|
Ozone concentration |
≤0.05ppm (150mm away from the air outlet) |
|
Operating temperature |
0-50℃ |
|
Working humidity |
30-70%RH |
|
Dimensions |
640*175*118mm ( L*W*H ) |
|
Shell material |
Aluminum dusting |
|
Installation accessories |
1 pair of L-shaped aluminum powder spraying mounting brackets, 1 pair of bakelite screw handles (M6 × 12) |
|
Net weight |
2450g (including power cord, bracket accessories, etc.) |
|
Gross weight |
3650g |
|
Quality assurance |
1 year |
|
Certification |
CE |
Features
(1) Fit for remove static in large area.
(2) Multi-unit independent ion transmitting combination with stepless speed regulating.
(3) High speed of static eliminating and good circuit stability.
(4) Front and back cover net unloadable and easy for maintenance.
