Quick Details
-
Power:
-
1.1kw
-
Min. Lifting Height:
-
4m
-
Table Size:
-
0.67m x 0.66m
-
Overall Dimensions:
-
1.99*0.78*1.24m
-
Weight:
-
330 kg
-
Marketing Type:
-
New Product 2021
-
Name:
-

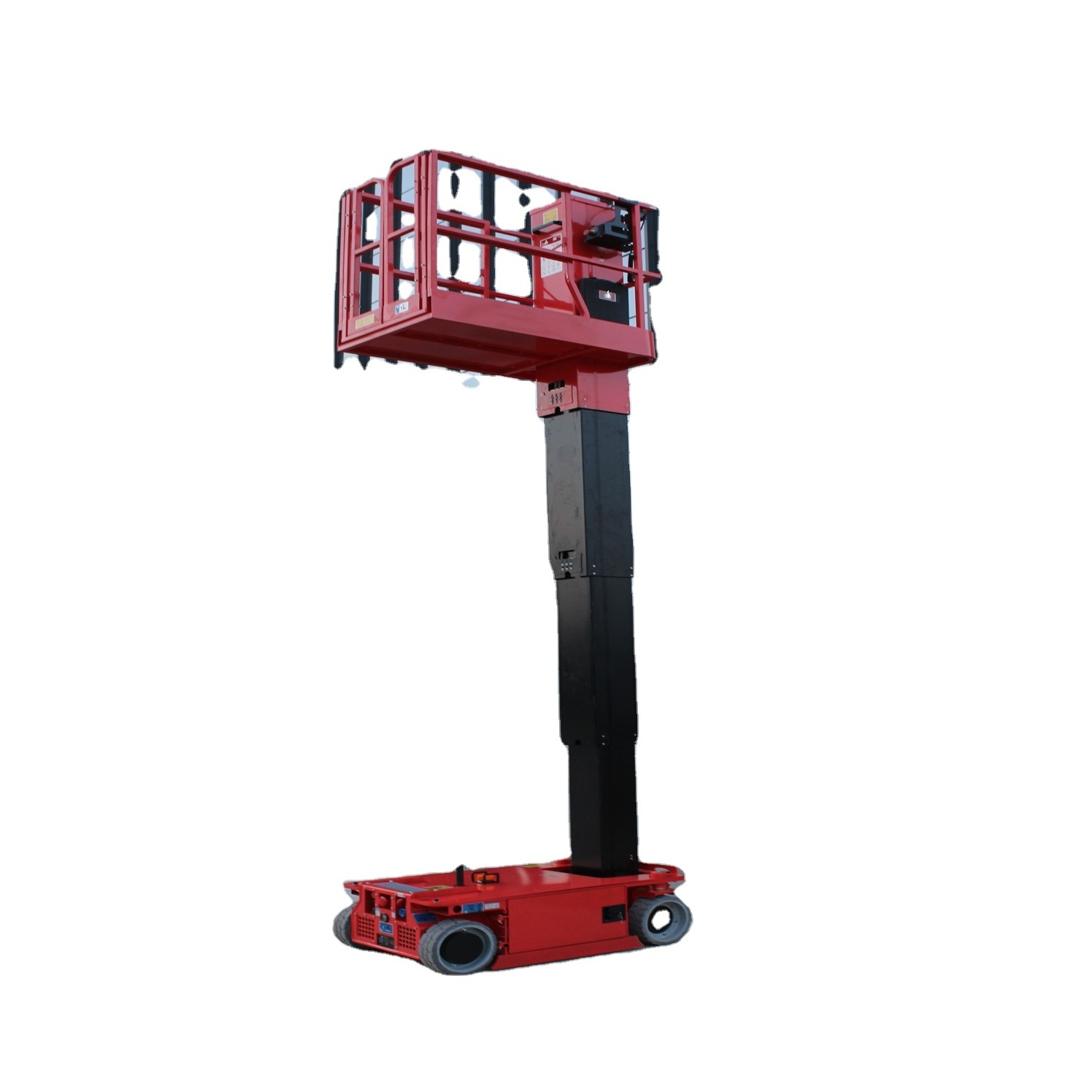

Aluminium Alloy Platform Aerial Lift Equipment
-
Color:
-
Customized
-
Load capacity:
-
150kg
-
Lifting height:
-
6-12m
-
Minimum ground clearance:
-
0.05m
-
Platform:
-
Anti-skid
-
Tire:
-
Pneumatic Tire
-
Power supply::
-
Electric/Manual/pneumatic
-
Application:
-
Widely
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
EW
-
Power:
-
1.1kw
-
Min. Lifting Height:
-
4m
-
Table Size:
-
0.67m x 0.66m
-
Overall Dimensions:
-
1.99*0.78*1.24m
-
Weight:
-
330 kg
-
Marketing Type:
-
New Product 2021
-
Name:
-
Aluminium Alloy Platform Aerial Lift Equipment
-
Color:
-
Customized
-
Load capacity:
-
150kg
-
Lifting height:
-
6-12m
-
Minimum ground clearance:
-
0.05m
-
Platform:
-
Anti-skid
-
Tire:
-
Pneumatic Tire
-
Power supply::
-
Electric/Manual/pneumatic
-
Application:
-
Widely
Product Description
Eternalwin is committed to the safest indoor aerial work platform. Our aerial work platforms are lightweight and small enough that one person can set up the equipment and put it into operation in minutes. It is suitable for almost all high-altitude operations,providing more efficient solutions for internal operations in hotels, airports, properties, factories, warehouses, light construction, maintenance and repair, etc.
We have different models of aerial work platforms to meet any of your needs, such as single mast vertical lift, double masts vertical lift, self-propelled single mast vertical lift, self-propelled double masts vertical lift, self-propelled vertical boom,self-propelled scissor lift, boom lifter, other scissor lifters and so on.
We have different models of aerial work platforms to meet any of your needs, such as single mast vertical lift, double masts vertical lift, self-propelled single mast vertical lift, self-propelled double masts vertical lift, self-propelled vertical boom,self-propelled scissor lift, boom lifter, other scissor lifters and so on.
Specification
|
型号/Model
|
GTWY1-5
|
GTWY1-6
|
GTWY1-8
|
GTWY1-9
|
GTWY1-10
|
GTWY1-12
|
||||||
|
平台规格/Platform
|
|
|
|
|
|
|
||||||
|
最大工作高度
Max. Working Height |
6.7m
|
8.2m
|
9.8m
|
11.2m
|
12.4m
|
14m
|
||||||
|
最大平台高度
Max. Platform Height |
4.7m
|
6.2m
|
7.8m
|
9.2m
|
10.4m
|
12m
|
||||||
|
平台载重
Loading Capacity |
150kg
|
150kg
|
150kg
|
150kg
|
136kg
|
120kg
|
||||||
|
最大工作人数
Occupants |
1
|
1
|
1
|
1
|
1
|
1
|
||||||
|
平台尺寸
Platform Dimension |
0.67m x 0.66m
|
0.67m x 0.66m
|
0.67m x 0.66m
|
0.67m x 0.66m
|
0.67m x 0.66m
|
0.67m x 0.66m
|
||||||
|
整车尺寸/Overall Dimension
|
|
|
|
|
|
|
||||||
|
整车高度
Overall Height |
1.99m
|
1.99m
|
1.99m
|
1.99m
|
1.99m
|
2.68m
|
||||||
|
整车宽度
Overall Width |
0.78m
|
0.78m
|
0.78m
|
0.78m
|
0.78m
|
0.81m
|
||||||
|
整车长度
Overall Length |
1.24m
|
1.24m
|
1.36m
|
1.4m
|
1.42m
|
1.46m
|
||||||
|
支撑范围
Outrigger coverage |
1.7m x 1.7m
|
1.7m x 1.7m
|
1.7m x 1.7m
|
1.8m x 1.8m
|
1.9m x1.8m
|
2m*1.9m
|
||||||
|
整车重量/Weight
|
|
|
|
|
|
|
||||||
|
交流 AC
|
330kg
|
350kg
|
370kg
|
390kg
|
420kg
|
490kg
|
||||||
|
直流 DC
|
355kg
|
375kg
|
395kg
|
415kg
|
445kg
|
515kg
|
||||||
|
动力源/Power
|
|
|
|
|
|
|
||||||
|
交流 AC
|
380V/220V/110V
|
380V/220V/110V
|
380V/220V/110V
|
380V/220V/110V
|
380V/220V/110V
|
380V/220V/110V
|
||||||
|
交流电机
AC Motor |
0.75KW
|
0.75KW
|
0.75KW
|
0.75KW
|
0.75KW
|
0.75KW
|
||||||
|
直流 DC
|
12V
|
12V
|
12V
|
12V
|
12V
|
12V
|
||||||
|
直流电机
DC motor |
1.3KW
|
1.3KW
|
1.3KW
|
1.3KW
|
1.3KW
|
1.3KW
|
||||||
|
充电器
Charger |
12V/15A
|
12V/15A
|
12V/15A
|
12V/15A
|
12V/15A
|
12V/15A
|
||||||
