Quick Details
-
Brand Name:
-
HITOP
-
Fork Length:
-
1220mm
-
Fork Width:
-
175mm
-
Overall Dimensions:
-
3810*1270*2210mm
-
Weight (KG):
-
4270 kg
-
Product Name:
-
diesel forklift
-
Power Mode:
-
Diesel Engine
-
Engine model:
-
Xinchai C490 / ISUZU C240
-
Load Center:
-
500mm
-
Rated Lifting Height:
-
3000~6000mm
-
Rated Lifting Capacity:
-
2 ton 2.5 ton 3 ton 3.5ton 4 ton 5 ton
-
Optional:
-
Full free lift/ triplex mast/ side shifter
-
Tyre Type:
-
Pneumatic tires / Solid tires
-
Color:
-
Customized as customer requirements
Quick Details
-
Min. Lifting Height:
-
3000mm
-
Warranty:
-
3 years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HITOP
-
Fork Length:
-
1220mm
-
Fork Width:
-
175mm
-
Overall Dimensions:
-
3810*1270*2210mm
-
Weight (KG):
-
4270 kg
-
Product Name:
-
diesel forklift
-
Power Mode:
-
Diesel Engine
-
Engine model:
-
Xinchai C490 / ISUZU C240
-
Load Center:
-
500mm
-
Rated Lifting Height:
-
3000~6000mm
-
Rated Lifting Capacity:
-
2 ton 2.5 ton 3 ton 3.5ton 4 ton 5 ton
-
Optional:
-
Full free lift/ triplex mast/ side shifter
-
Tyre Type:
-
Pneumatic tires / Solid tires
-
Color:
-
Customized as customer requirements
Products Description

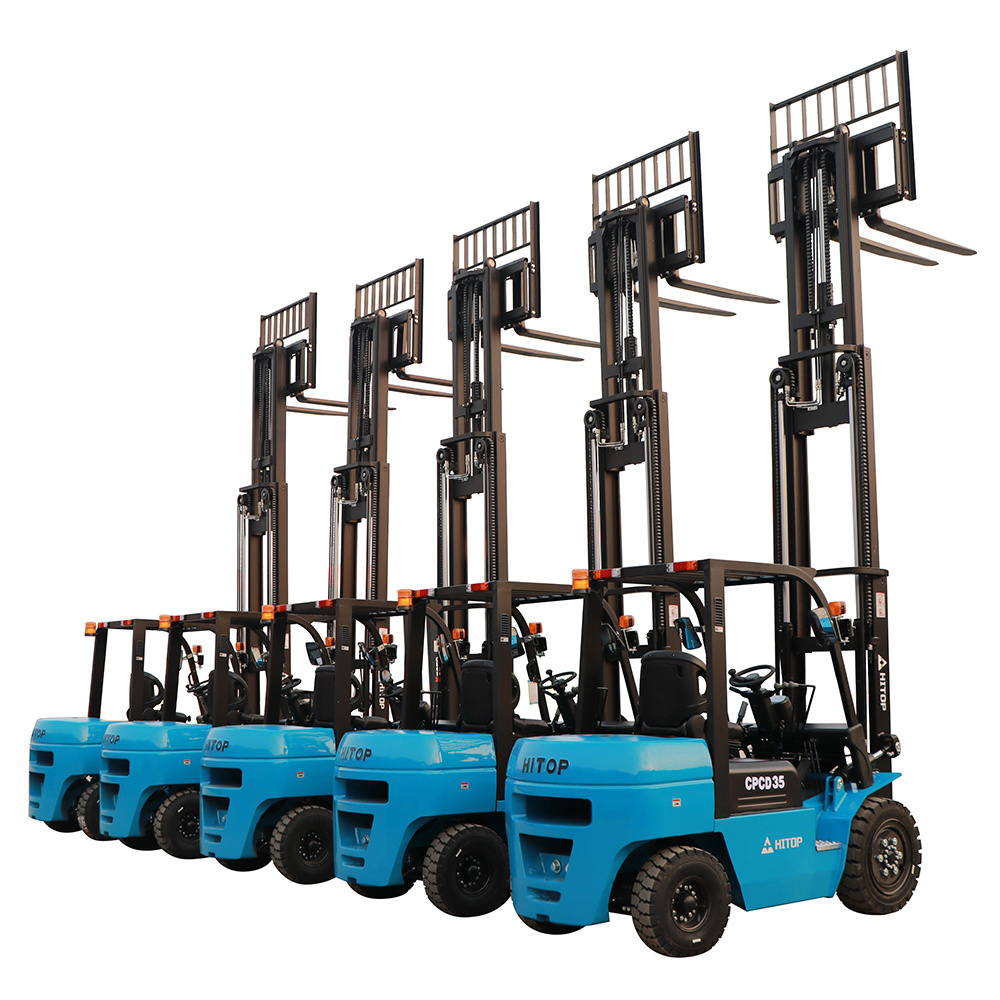

New Powerful 2 Ton 2.5 Ton 3 Ton Mini Diesel Fork Lifter Warehouse 3.5 Ton 5 Ton Diesel Forklift Truck for Sale
Electric and diesel models are the most popular ones. Each one of them is designed for specific applications. Diesel forklifts need diesel fuel to run, they are propelled by a diesel engine. It is more affordable when you purchase one diesel forklift.
Diesel forklifts are larger, more powerful and are mostly used outdoors. They are designed and built to handle rough terrain.
Diesel forklift trucks are ideal for outdoor applications, being able to operate in wet as well as in damp weather. They provide more torque output compared to other options, it can easily handle any hydraulic additions. One real advantage of diesel trucks is they can work longer without running out of fuel. When they do run out, it only takes a few minutes to fill the fuel tank.
Diesel forklifts are larger, more powerful and are mostly used outdoors. They are designed and built to handle rough terrain.
Diesel forklift trucks are ideal for outdoor applications, being able to operate in wet as well as in damp weather. They provide more torque output compared to other options, it can easily handle any hydraulic additions. One real advantage of diesel trucks is they can work longer without running out of fuel. When they do run out, it only takes a few minutes to fill the fuel tank.
|
MODEL
|
|
CPCD25
|
CPCD30
|
CPCD35
|
|||
|
Load capacity kg
|
|
2500
|
3000
|
3500
|
|||
|
Load center mm
|
|
500
|
500
|
500
|
|||
|
Power type
|
|
Diesel
|
Diesel
|
Diesel
|
|||
|
H1 Lifting height (H1) mm
|
|
3000
|
3000
|
3000
|
|||
|
Free lift mm
|
|
150
|
150
|
160
|
|||
|
Tilting angles (forward α-backward β) °
|
|
6/12
|
6/12
|
6/12
|
|||
|
Min. Right angle aisle width mm
|
|
4260
|
4260
|
4260
|
|||
|
Tire
|
Front tire
|
28x9-15-14PR
|
28x9-15-14PR
|
28x9-15-14PR
|
|||
|
|
Rear tire
|
6.5-10-10PR
|
6.5-10-10PR
|
6.5-10-10PR
|
|||
|
Total weight kg
|
|
3600
|
4550
|
4500
|
|||
|
Engine
|
|
Xinchai diesel engine
|
Xinchai diesel engine
|
Xinchai diesel engine
|
|||
|
NOTE
|
|
Optional:China Xinchai, Japannese ISUZU, Yanmar engine and so on.
|
|
|
|||
Standard Configuration of our 2.5 ton forklift diesel forklift ：
1.Chinese Engine
2. Hydraulic / Automatic Transmission
3. Duplex Mast Lifting Height 3000mm
4. Pneumatic Tires
5.1200mm Fork Length
6.Toyota comfortable seat
7.The casting-type steering brige (makes forklift more stable and the performance more reliable)
8.Large flow air filter with high instake, which effectively reduce the resistence and dust into engine,improving engine life.
9.Shimadzu pump and valve, Eaton pipe, Nok hydraulic cylinder seals
10.A set of spare parts ,and some quick -wearing parts free for you
Optional Equipments
1.Janpan engine ISUZU or Mitsubishi,EPA koller engine ,Euro III engine are optional.
2.Lifting Height 3m-7m
3.Full-free Duplex or Triplex Mast
4.Side Shift, Solid Tires, Suspension Seat, fork positioner .
5.Driver's Cabin, Customized Color, air-conditioner, etc.
6.Attachments :paper roll clamp,bale clamp ,rotating clamp ect.
