Quick Details
-
Usage:
-
Position Sensor
-
Theory:
-
Resistance Sensor
-
Material:
-
PC
-
Material surface thickness:
-
0.188mm
-
Output signal:
-
resistance
-
Film thickness:
-
0.5-0.1mm
Quick Details
-
Model Number:
-
YY-01
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
KL Seating
-
Usage:
-
Position Sensor
-
Theory:
-
Resistance Sensor
-
Material:
-
PC
-
Material surface thickness:
-
0.188mm
-
Output signal:
-
resistance
-
Film thickness:
-
0.5-0.1mm

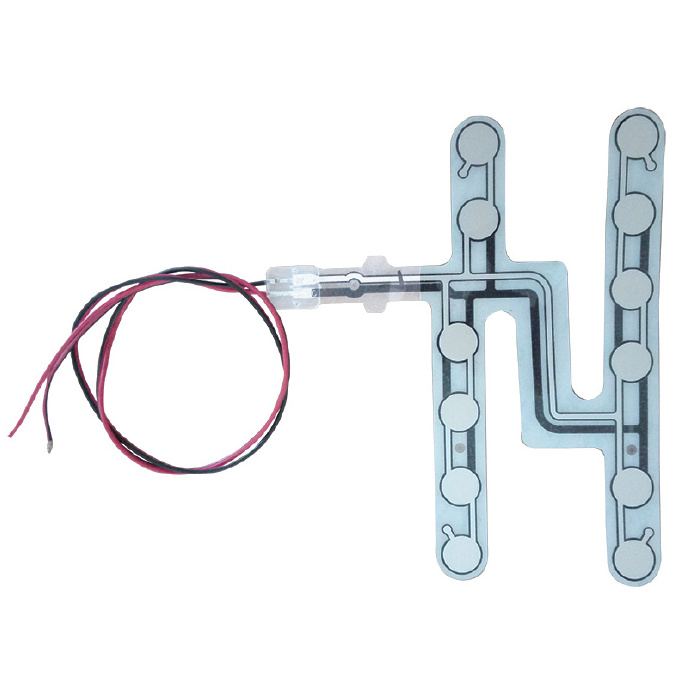

Car Seat Occupancy Sensor for GPS Tracking Device
Car Seat Occupancy Sensor for GPS Tracking Device
Specifications
Surveyors are mainly used in automobile piezoresistive pressure sensor in three areas: engine optimization, injection contr
Auto seat sensor is a membrane touch point sensor and touch point was distributed uniformity on the suffer facade of seat, It is use to apperceive system of auto seat, such as safety belt alarm sensor, Taxi meter automatism….
We can design to different sensor figure and touch point sensitivity according to shape. rigidity and elasticity of car seat.
|
Material |
PC |
|
|
Material surface thickness |
0.188mm |
|
|
Output Signal |
Resistance<100 Ω |
|
|
Film thickness |
0.5+-0.1mm |
|
|
Bottom glue |
PET 3MDouble-sided glue |
|
|
Enviroment Temperature |
-15 °C -80 °C |
|
|
Permanence |
>150000 Time |
|
|
Pressure range single-spot test(Special Poise) |
70g |
100%non-conducting |
|
|
130g |
100%conducting |
|
Connector |
Seal gum |
|
|
To match as the seat |
||
Normal Package : normal export carton or customize
Delivery Port : Shanghai or Ningbo port, China
Delivery Time : Usually it takes 10 to 25 days after receiving your deposit. The specific date will be depended on your order and item.
Shipment Way : By sea(cost-effective), air or express.
Additional Package : If you want to deliver by LCL, we suggest you packed by the pallet.
1. Sample Service : Sample order is available. And the cost of sample will be refunded to you in future order.
2. OEM Service : You can provide your mounting size.
3. Certificate Service : Any certificate about the products and company is available.
4. After-sale Service : Usually it will last for 12 months.
5. Price Term : FOB,CIF,C&F,EXW.
6. Payment Term : T/T,L/C,Western Union,Paypal. etc
