Quick Details
-
Brand Name:
-
UHV
-
Model Number:
-
UHV-403
-
Product name:
-

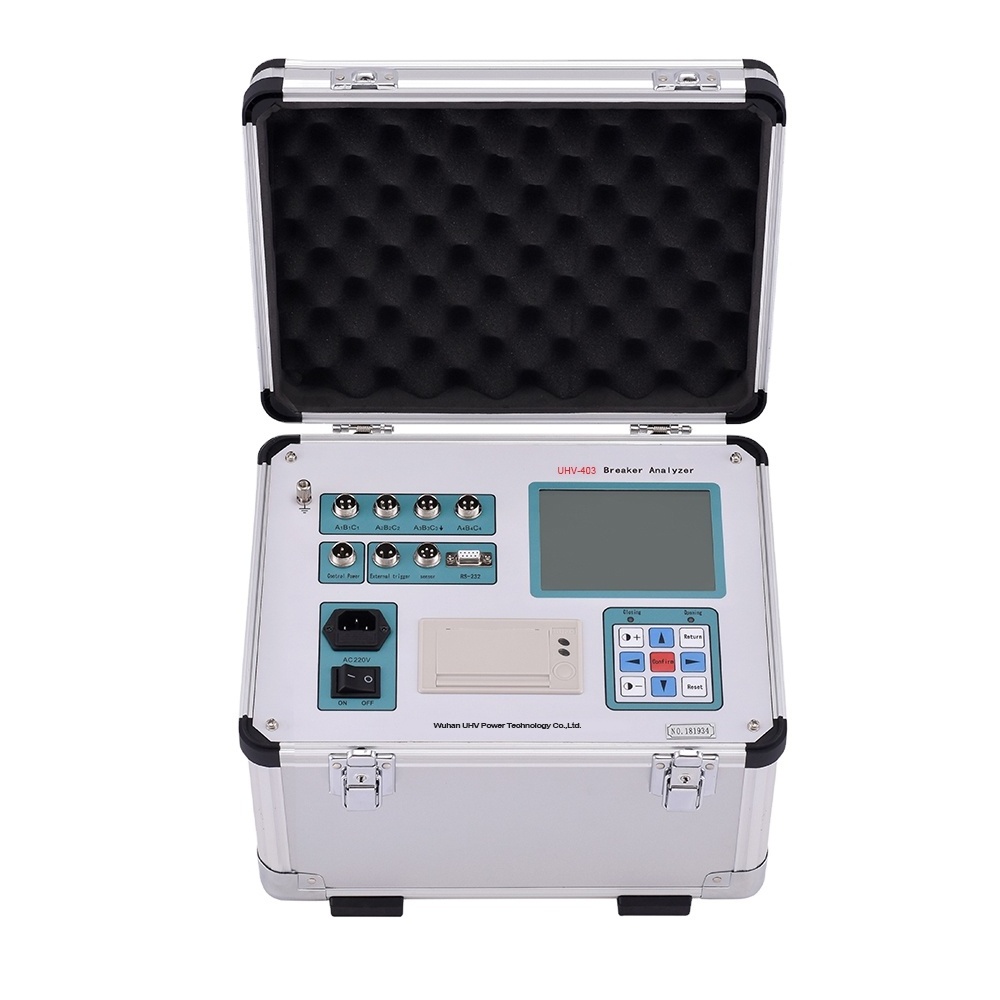

Circuit Breaker Analyzer
-
Input Power supply:
-
220V±10% 50Hz±10%
-
Atmospheric pressure:
-
86~106kpa ℃
-
Temperature:
-
-10~45℃
-
Humidity:
-
≤80%RH
-
Insulation resistance:
-
>2MΩ
-
Output power supply:
-
DC30 ~ 250V digital adjustable / 20A (instantaneous work)
-
Fracture type:
-
12-way metal fracture
-
Dimension:
-
360* 290 *280mm 3
-
Weight:
-
6kg
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
UHV
-
Model Number:
-
UHV-403
-
Product name:
-
Circuit Breaker Analyzer
-
Input Power supply:
-
220V±10% 50Hz±10%
-
Atmospheric pressure:
-
86~106kpa ℃
-
Temperature:
-
-10~45℃
-
Humidity:
-
≤80%RH
-
Insulation resistance:
-
>2MΩ
-
Output power supply:
-
DC30 ~ 250V digital adjustable / 20A (instantaneous work)
-
Fracture type:
-
12-way metal fracture
-
Dimension:
-
360* 290 *280mm 3
-
Weight:
-
6kg
Product Paramenters
|
Use environment
|
Input Power supply
|
220V±10% 50Hz±10%
|
|
|
Atmospheric pressure
|
86～106kpa ℃
|
|
|
Temperature
|
－10～45℃
|
|
|
Humidity
|
≤80%RH
|
|
Safety performance
|
Insulation resistance
|
＞2MΩ
|
|
|
Dielectric strength
|
Power supply on the chassis power frequency 1.5kV withstand voltage for 1 minute, no flashover and arcing
|
|
Basic parameters
|
time
|
Range：16000.0ms，Resolution：0.1ms
error：①within 200ms，0.1ms±1 word ②200ms or above，±2% ③The same period，±0.1ms |
|
|
speed
|
Range：20.00m/s，Resolution0.01m/s
error：①within 0～2m/s，±0.1m/s±1 digital ②2m/s or above |
|
|
stroke
|
Vacuum circuit breaker：Range：50.0mm，Resolution：0.1mm，error：±0.5mm
SF6 circuit breaker：Range：300.0mm，Resolution：0.1mm，error：±2mm Less oil circuit breaker：Range：600.0mm，Resolution：0.1mm，error：±2mm |
|
|
Current
|
Range：20.00A ，Resolution：0.01A
|
|
|
Output power supply
|
12-way metal fracture
|
|
|
Fracture type
|
DC30 ~ 250V digital adjustable / 20A (instantaneous work)
|
|
|
Diemension and Weight
|
Host：360×290×280mm ; 6kg
annex：370mm×280mm×220mm ; 9kg |
Product features
1. time: the inherent score of 12 fractures, closing time, the same period, the same period
2. reclosing: Breaker Analyzer every break of the minute-divide, minute-close, minute-close-point; process time: one minute time, one time, two time, gold short time, no current time value
3. bouncing: closing bounce time of each fracture, number of bounces, bounce process, bounce waveform; amplitude of bounce rebound per fracture
4. speed: just divided, just combined speed, maximum speed, time-stroke characteristic curve
5. itinerary: total stroke, open distance, over travel, overshoot stroke, rebound amplitude
6. current: minute, closing coil, closing current value, current waveform
7. operating voltage: DC30 ~ 250V / 20A digital adjustable circuit breaker action power supply, automatic low-voltage operation test of the circuit breaker, measuring the operating voltage value of the circuit breaker
China Safety Electric Test Equipment Co., Ltd.
China Safety Electric Test Equipment Co., Ltd.
Established in 2021, which are located in Wuhan Optical Valley East Lake High-Tech Development Zone. We are a well-experienced OEM/ODM factory engaged in the research, development, manufacture, sale and service of electric power testing equipment or systems. Including AC Series Resonant Test System, AC/DC/VLF Hipot Test Set, Transformer Tester, Secondary Injection Relay Tester, Cable/Line Tester, Insulation Oil Tester, Circuit Breaker/Switch Tester & SF6 Test Equipment etc. Widely used in electric power,energy, transportation,metallurgical,chemical,mining and water conservancy project.
We have obtained the ISO 9001 quality system certification, OHSAS 18001:2007 Occupational Health and Safety Management System certification and all products conform to the international CE or Chinese state standards.
Our products are widely exported to all over the world and our service are recognized and highly appreciated by world scale customers, we will always provide you the best solution. Looking forward to building a thrust-worthy and long term relationship with you.
FAQ
1. Is your company a sales company or a manufacturer?
China Safety Electric Test Equipment Co., Ltd.
is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2004 and have fifteen years of production experience. Our company has reliable production lines, test rooms and R&D centers.
2. Whether the goods are in stock, whether they can be customized, and how long the delivery time is?
After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.
3. Is the quality guaranteed?
In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.
4. What are the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.
5. What are the cooperative countries or regions?
Products have been successfully exported to the United States, Brazil, Australia, Russia, the Netherlands, Indonesia, Bangladesh, Iran, India, Saudi Arabia, Mongolia, Japan and other countries and regions. In the United States, India, Vietnam and other regions have cooperative distributors, can provide thoughtful services.
