Quick Details
-
Lift Drive:
-
Hydraulic
-
Platform extension size:
-
0.9m
-
Moving:
-
Electric
-
Video outgoing-imspection:
-
Provided
-
Lifting motor:
-
24v DC/0.8KW
-
Certification:
-
CE ISO
-
Working Height:
-
10m
-
Driving force:
-
Electric-hydraulic transmissions
-
Color:
-
Orange yellow or blue
-
Lifting/descending speed:
-
3-5m/min
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
China
-
Weight (KG):
-
3000 kg
-
Lift Drive:
-
Hydraulic
-
Platform extension size:
-
0.9m
-
Moving:
-
Electric
-
Video outgoing-imspection:
-
Provided
-
Lifting motor:
-
24v DC/0.8KW
-
Certification:
-
CE ISO
-
Working Height:
-
10m
-
Driving force:
-
Electric-hydraulic transmissions
-
Color:
-
Orange yellow or blue
-
Lifting/descending speed:
-
3-5m/min
Because each customer has different requirements for the product, the customer's country is different, and the product cost is also different, we are sorry that we cannot display the full amount on the platform. If you need an accurate quotation, please contact us.
COMPANY INFORMATION
Shandong Qiyun Group Co., Ltd. was established in 2014. The company is located in Jiyang, Shandong, which is known as "the hometown of China's hydraulic lifting platform". Initially formed by seven companies specializing in the production and sales of elevator products, it has now developed into a professional group company integrating R&D, production, sales, and export. We not only have all kinds of advanced conventional hydraulic lifts but also customize products according to customer needs.
Shandong Qiyun Group Co., Ltd. has various certification systems such as ISO, CE, SGS, etc. It can undertake OEM and ODM mass production. Now the company is vigorously developing export and recruiting agents and distributors for the world.
Now our products have been sold all over the world and are widely used in various industries and places such as plant maintenance, equipment maintenance, warehousing and logistics, airports and ports, villa exhibition halls, aerial work, etc., and are recognized by our customers.
PRODUCT INTRODUCTION

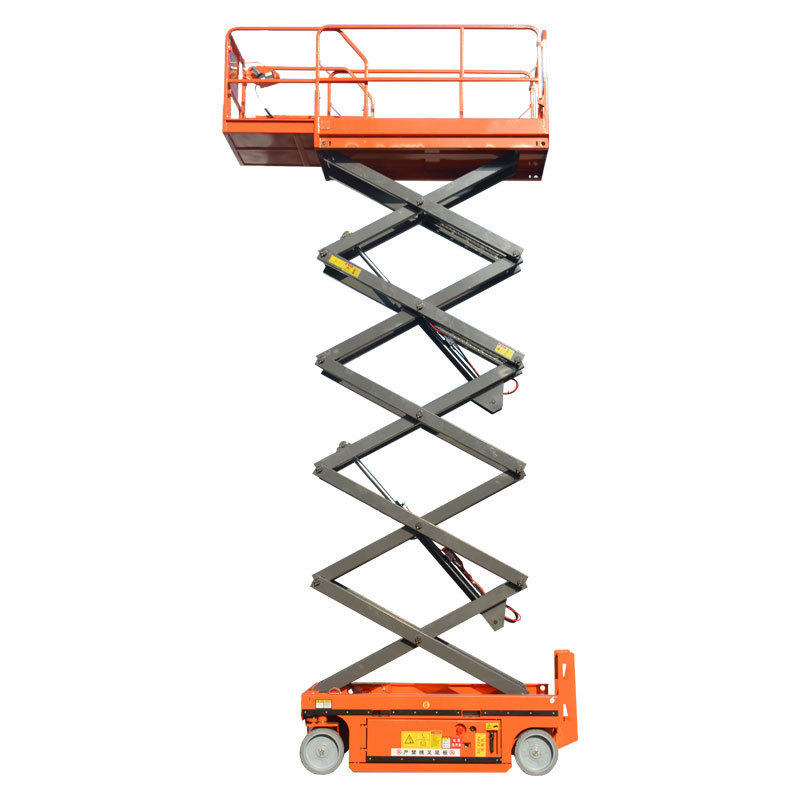

A self-propelled scissor lift can move by itself without external force and an external power source. It can work only with one person and it is very convenient and efficient. It can walk even at full height. It is widely used for building. It is made up of a bottom frame, scissor structure, and guardrail . Its platform height is from 3m to 14m. Load capacity is from 230 to 550 kilograms. The extension of the platform can be 90 centimeters and carry 113 kg. The rack is made of a square tube and can be folded. The scissor structure is made from Q235 manganese steel, and for high configuration, it is made from Q500 manganese steel.
We have three different configurations for your choice. The main differences are materials and parts brand. Welcome to visit our factory.
| Products size | ||||||
| Model | Platform size | Load capacity | Net lifting height | Overall dimensions | Table extension | Machine weight |
| GTJZ-6 | 2.26*1.13 | 550 | 6 | 2.475*1.15*2.158 | 0.9 | 2060 |
| GTJZ-8 | 2.26*1.13 | 450 | 8 | 2.475*1.15*2.286 | 0.9 | 2190 |
| GTJZ-10 | 2.26*1.13 | 320 | 10 | 2.475*1.15*2.414 | 0.9 | 2430 |
| GTJZ-12 | 2.26*1.13 | 320 | 11.8 | 2.475*1.15*2.542 | 0.9 | 2960 |
| GTJZ-14 | 2.64*1.13 | 227 | 13.8 | 2.84*1.39*2.59 | 0.9 | 3320 |
CONVENIENT DESIGN
1. The self-propelled scissor lift can be operated and moved on the platform under the lifting state, which is more convenient and flexible for operation and use.
2. Extendable platform can be quickly spread out to the working point.
3. Foldable guardrail reduces the space occupation of the whole machine.
4. The minimum turning radius (0m inside the wheel) and compact design make it easy to operate in a small space.
5.25% climbing ability, able to climb slope smoothly.
6. Rotary chassis for easy maintenance.
7. Fault code display automatically for convenient maintenance.
