Quick Details
-
Brand Name:
-
Etech
-
Use:
-
FTTH FTTA FTTX
-
Warranty Time:
-
NA
-
Product name:
-

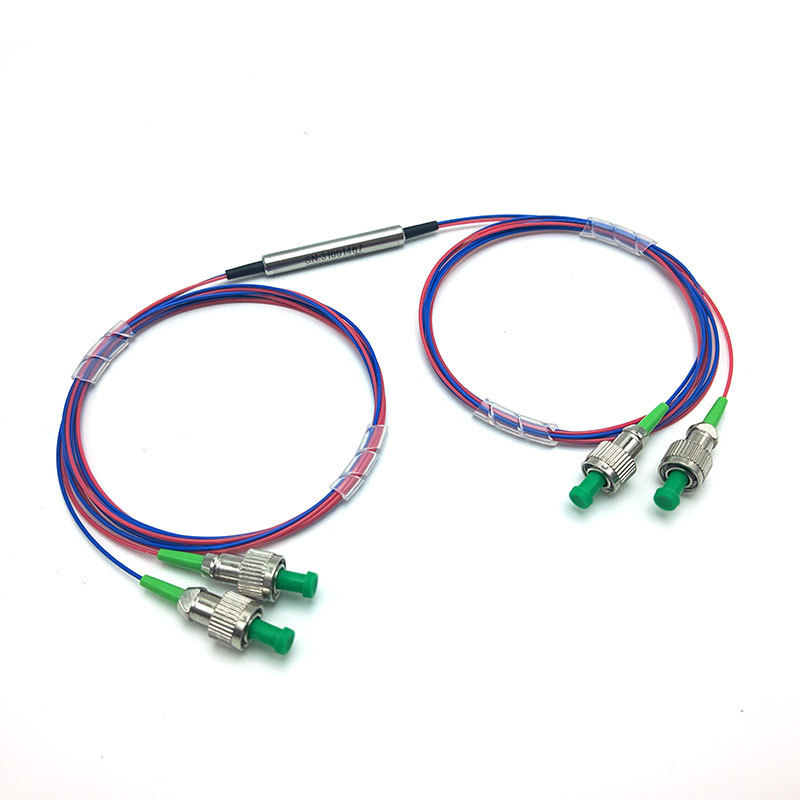

4 Port Fiber Optical Circulator
-
Port number:
-
4
-
Wavelength:
-
1310nm,1550nm
-
Connector Type:
-
SC FC LC ST MU etc
-
Package Style:
-
mini steel tube
-
Cable length:
-
1m or customized
-
Polarization Mode Dispersion:
-
≤0.1
-
Storage temperature:
-
-40~85
-
Operating temperature:
-
0 ~+70
Quick Details
-
Type:
-
FTTx Solutions
-
Model Number:
-
ECR-4
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Etech
-
Use:
-
FTTH FTTA FTTX
-
Warranty Time:
-
NA
-
Product name:
-
4 Port Fiber Optical Circulator
-
Port number:
-
4
-
Wavelength:
-
1310nm,1550nm
-
Connector Type:
-
SC FC LC ST MU etc
-
Package Style:
-
mini steel tube
-
Cable length:
-
1m or customized
-
Polarization Mode Dispersion:
-
≤0.1
-
Storage temperature:
-
-40~85
-
Operating temperature:
-
0 ~+70
Products Description
Features
High isolation
Low insertion loss
High return loss
Low polarization sensitivity
Optical path epoxy free
Application
Fiber optic amplifiers
CATV fiberoptic links
Fiberoptic systems testing
Fiberoptic LAN systems
Telecommunications
High isolation
Low insertion loss
High return loss
Low polarization sensitivity
Optical path epoxy free
Application
Fiber optic amplifiers
CATV fiberoptic links
Fiberoptic systems testing
Fiberoptic LAN systems
Telecommunications
S
p
ecification
|
Parameter
|
|
P Grade
|
|
|
Configuration
|
|
4 port
|
|
|
Operation Wavelength (nm)
|
|
1550± 15
|
|
|
lnsertion Loss (dB) |
Typical
|
0.8
|
|
|
|
Maximum
|
1.2
|
|
|
Typical lsolation (dB)
|
|
≥ 40
|
|
|
Minimum lsolation(dB)
|
|
≥ 40
|
|
|
Cross Talk (dB)
|
|
≥ 50
|
|
|
Polarization Mode Dispersion (ps)
|
|
≤ 0.1
|
|
|
Return Loss (dB)
|
|
≥ 55
|
|
|
Power Handling (mW)
|
|
500
|
|
|
Operating Temperature (° C)
|
|
0 ~+75
|
|
|
Storage Temperature (° C)
|
|
-40 ~ +85
|
|
|
Dimensions (mm)
|
|
Dia 5.5 x 60
|
|
Details Images
Product packaging
Manufacturing Technique
Delivery
FAQ
1. What is your order quantity?
Etech: usually 1 piece, if you have detailed requirements, we can coordinate.
2. What is your delivery date?
Etech: The delivery date is approximately 3-5days, depending on the order quantity.
3. Can you provide samples for customers?
Etech: Yes, but the shipping will be charged on the customer's account.
4. What is your price?
Etech: We offer competitive price with good performance.
5. Do you offer OEM services?
Etech: We accept OEM, ODM. Cable sizes and materials can be customized.
