Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HUADONG
-
Filter Rating:
-
10%-30%
-
Thickness:
-
2-16mm
-
Length:
-
up to 5.8m
-
Width:
-
unequal
-
material::
-
Metal,sainless steel/low carbon steel
-
Slot Size::
-
0.1-15mm(achieved upon request)
-
OD::
-
25-600mm
-
Certification::
-
ISO/CE
-
connection type::
-
weld/thread/flange
-
advantage::
-
from direct factory
-
v wire:
-
1.5*2-3.5*6.8mm
Quick Details
-
Weight (KG):
-
50
-
Marketing Type:
-
New Product 2023
-
Core Components:
-
support rod, Wire
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HUADONG
-
Filter Rating:
-
10%-30%
-
Thickness:
-
2-16mm
-
Length:
-
up to 5.8m
-
Width:
-
unequal
-
material::
-
Metal,sainless steel/low carbon steel
-
Slot Size::
-
0.1-15mm(achieved upon request)
-
OD::
-
25-600mm
-
Certification::
-
ISO/CE
-
connection type::
-
weld/thread/flange
-
advantage::
-
from direct factory
-
v wire:
-
1.5*2-3.5*6.8mm
J ohnson V wire screen profile
Wire wapped Screens consist of V-shape or wedge shape profile wire and the longitudinal support rods.
The rod can be round wire, triangular wire or trapezoid wire. the wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.
The v or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous
slot opening and have more open area, and it can reduce the speed of the water entering to avoid
the sand entering the Well Screens under the great pressure, so it can filter sand better.
Specification
|
SIZE (inch) |
O.D (mm) |
SLOT (inch) |
LENGTH (m) |
Collapse Strength (psi) |
Tensile Weight (ton) |
Wire size (mm) |
RODS (mm) |
|
4 |
114.3 |
0.040 |
3 |
395 |
6 |
2.2*3.0 |
3.8mm/32 |
|
4 |
114.3 |
0.040 |
3 |
395 |
6 |
2.3*3.0 |
3.8mm/32 |
|
6 |
168.3 |
0.040 |
3 |
252 |
8 |
2.3*3.5 |
3.8mm/32 |
|
8 |
219.1 |
0.010 |
3 |
399 |
10.5 |
3.0*5.0 |
3.8mm/48 |
|
8 |
219.1 |
0.020 |
3 |
370 |
10.5 |
3.0*5.0 |
3.8mm/48 |
|
8 |
219.1 |
0.040 |
3 |
323 |
10.5 |
3.0*5.0 |
3.8mm/48 |
|
10 |
273.1 |
0.010 |
3 |
206 |
11 |
3.0*5.0 |
3.8mm/50 |
|
10 |
273.1 |
0.020 |
3 |
191 |
11 |
3.0*5.0 |
3.8mm/50 |
|
10 |
273.1 |
0.040 |
3 |
167 |
11 |
3.0*5.0 |
3.8mm/50 |
Advantages
1.
Screens with high open area
are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2.
Low cost operation
Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level’s down, thus to save energy consumption.
3.
Reduce the abrasion of the pump
Under the same condition, high open area can make the speed of groundwater’s entering into the screen much slower than any other filtration apparatus, which will avoid sand’s entering into screen because of high pressure, thus reduce the abrasion of the pump.
4.
Extend the life span of wells
Comparatively, groundwater’s entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.

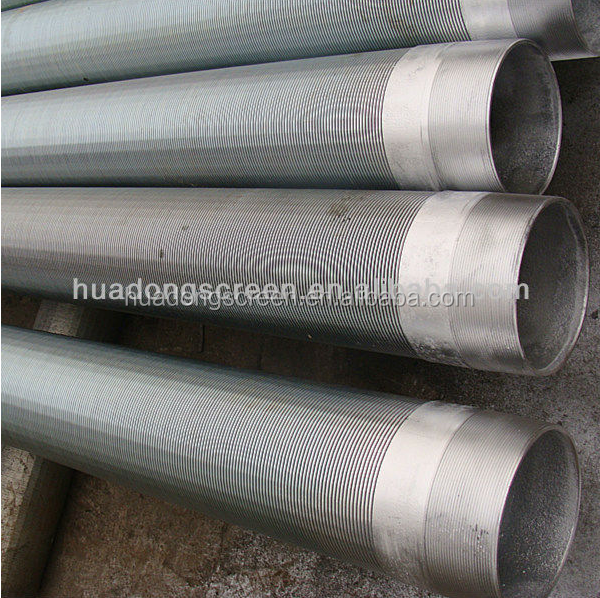

Product display
The reason why you choose us:
Professional technology, Completed testing equipment
We have 20 years experience in this field, we go in for technical innovations to improve the quality of products. in recent years, our products not only to be high-quality, safe and reliable, but also of beautiful appearance.
Small profits but quick turnover
Our Scale Production will offer you a lower price, which can help our customer to get more profite without to pay a heavy price.
Perfect After Sale Service10 years' warranty
With a comprehensive after- sale system , and 10 years of Warranty a comprehensive solution to our customers to worry about .Also it is a important reason why so many customer to choose us.
Thank you very much for noticing my information. Warmly welcome all clients from all over the world. Looking forward to win-to-win and long term cooperation.
