500-1000kg/h chicken nuggets production line AMF600-IV

500-1000kg/h chicken nuggets production line AMF600-IV

FOB Reference Price: Get Latest Price

≥1 Sets

US $90000

≥3 Sets

US $84000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Hiwell

Voltage:: 220V/380V/440V, 220V / 380V / 415V /440v

Power:: 15.12KW

Dimension(L*W*H):: 3170X1176X2430MM

Weight:: 1400 KG

Marketing Type:: Hot Product 2021

Material:: Stainless Steel SUS304

Name:: 500-1000kg/h chicken nuggets production line

Function:: forming and outputing the patties

Usage:: burger produciton line forming machine

Keywords:: burger machine

Processing:: chciken nuggets forming and output

After-sales Service Provided:: yes

Capacity:: 500-1000kg/h

Quick Details

Application:: fast food factory, meat burger patty vegan patties

Production Capacity:: 70 strokes/min

Place of Origin:: Shandong, China

Brand Name:: Hiwell

Voltage:: 220V/380V/440V, 220V / 380V / 415V /440v

Power:: 15.12KW

Dimension(L*W*H):: 3170X1176X2430MM

Weight:: 1400 KG

Marketing Type:: Hot Product 2021

Material:: Stainless Steel SUS304

Name:: 500-1000kg/h chicken nuggets production line

Function:: forming and outputing the patties

Usage:: burger produciton line forming machine

Keywords:: burger machine

Processing:: chciken nuggets forming and output

After-sales Service Provided:: yes

Capacity:: 500-1000kg/h

500-1000kg/h chicken nuggets production line AMF600-IV

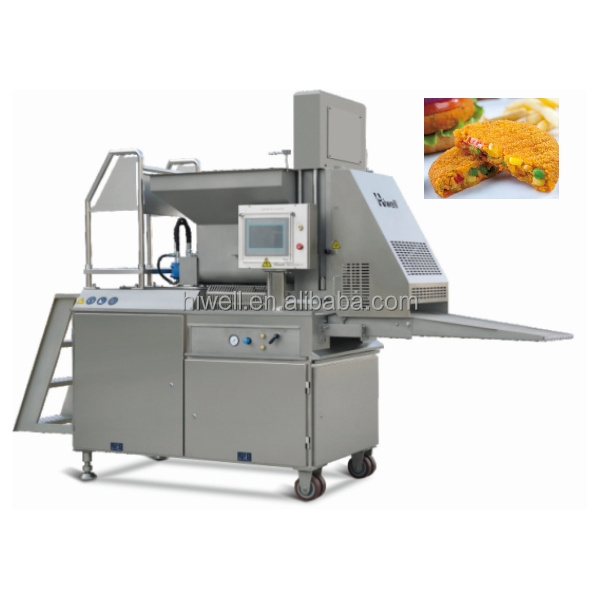

Automatic Multi Forming machine AMF600-IV (automatic hamburg patty and nuggets forming machine) can automatically perform various procedures such as meat filling, forming and outputting, and combine a fully automatic prepared food line when connecting with the batter, preduster, fryer, cooker, instant freezer and packing machine. It adopts the method of four-screw feeding system, greatly reduces the cutting of the material, and has better features of high production capacity and stable quality.

Easy and convenient replacement of food and the accurate portion control realize the cost control of the production.

Widely handles in the forming procedure of meat, poultry, fish, shrimp and the potato, tuber crops. And it can be applied in the
fields of all kind of minced/sliced products for premier meat texture taste.

Remark: To meet the needs of the production, parts, pallet, special cleaning cart, products with filling can be customized.

In addition, the machine can produce high quality diversified PET food.

Advantages:

Electric apparatus parts: Using original Germany SIEMENS PLC processor with touch screen operation, Chinese/English operating system and automatic failure alarm system.
Safe device: Magnetic protection switch (safe cover).
Hydraulic parts: Adopting the VICKERS, STAUFF, PARKER, INTERGRADTE HYDRAULIC original parts to guarantee the stable running of the whole machine.
Pneumatically system: Adopting the completely Germany FESTO original system.
Stainless steel made and portion non-metal material, safe and reliable, in conformity with the standard of HACCP, and got the CE authorization.

Advantages:

1. It can be suitable for metal forming plates
2. The protective grade for the electric apparatus parts reach to IP67
3. The speed increases to 70 stokes /min
4. Weight error margin 1.5%
5. New user interface
6. To avoid the operation mistake ,with high safe guarantee.

Forming plates

High quality imported nonmetal material guarantee a long service life. You can also choose alloy material.
Accurate CAD simulation design.
Advanced manufacturing equipment can ensure gap between metal spacer and forming plate, minimize the material leakage during forming processing.

Knockout units

The knockout units can ensure quick removal of the formed products from the plates orderly. Water or air knockout units can be optionally designed, making the knocking-off and cleaning both easy.

Mould calculation

Through the way of Android phone software and viewing our website (www.hiwell.cc/en/designl.asp), it can calculate the product weight (or confirm the product thickness and overall dimension through the product weight )and is convenient for developing new product.

Application:

Specialized fast food conditioning solutions for meat, seafood and vegetables.

Model selection:

Why choose us?

* The leadership of process technology for the food industry in China.
* Nearly 20 years of professional equipment production experience.
* HIWELL has 50+ patents,and the industry standard is drafted by Hiwell.
* CE certification by Germany TüV.
* Fast reaction times and high levels of competence.
* The updated techniques and experienced manufacturing process are the necessary for running of the equipment constantly.

Our Certification:

Production Flow:

CNC Machine

Bending

Metal Polishing

Germany Trumpf laser cutting

Welding

Our Service:

Pre-sale service:

1> Provide the free consultation of the equipment
2> Provide the standard device and the flow chart
3> According to the clients’ special requirement, offering the reasonable plan and free design helping to select the equipment.
4> Welcome to visit our factory or the domestic clients’ factory.

Services during the sales:

1> Help client design the factory and offering professional advice, free engineering drawing for the factory layout.
2> Inspect the machine before leaving the factory.
3> Oversea install and debug the equipment.
4> Train the first-line operator.

After sale services:

1> 24 hours online service
2> Engineers available to service machinery overseas
3> Provide technical exchanging

FAQ:

Q: 1. How many free mold following with hamburger patty & chicken nuggets forming machine?
A: There are two sets with machine. The extra mold you have to pay.

Q: 2. How long is the warranty period?
A: 1 year

Q: 3. Can you offer the customized machine?
A: Yes. We can offer comprehensive solution to help you after you offer your details requirements.

Q: 4. What is the payment method?
A: TT 30% as downpayment, TT 70% balance before shipment.
