4.Adjustable speed of cutting and length of paper tube;
5.Suit for paper tube, PP pipe, Plastic film roll,
Gold foil,
Meltblown non-woven roll.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
OSKI
-
Voltage:
-
380v 50hz 3phase
-
Power:
-
2.2kw
-
Dimension(L*W*H):
-
1.89*0.92*1.33m
-
Weight:
-
470 kg, 470kg
-
Name:
-
Paper Tube Core Cutter Automatic Paper Tube Core Cutter
-
Model:
-
SKQZ-1000
-
Speed:
-
100-120 Pcs/min
-
Keyword:
-
Paper Tube Core Cutte Cutting Paper Pipe Machine Cardboard Tube Cutter
-
Color:
-
red/white
-
After-sales Service Provided:
-
Spare Parts Video Technical Support
-
Control system:
-
PLC+Touch Screen
-
Automation:
-
Fully Atuomatic
-
Size:
-
1.89*0.92*1.33m
Quick Details
-
Production Capacity:
-
120 pcs/min
-
Product Type:
-
paper tube cutting machine
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
OSKI
-
Voltage:
-
380v 50hz 3phase
-
Power:
-
2.2kw
-
Dimension(L*W*H):
-
1.89*0.92*1.33m
-
Weight:
-
470 kg, 470kg
-
Name:
-
Paper Tube Core Cutter Automatic Paper Tube Core Cutter
-
Model:
-
SKQZ-1000
-
Speed:
-
100-120 Pcs/min
-
Keyword:
-
Paper Tube Core Cutte Cutting Paper Pipe Machine Cardboard Tube Cutter
-
Color:
-
red/white
-
After-sales Service Provided:
-
Spare Parts Video Technical Support
-
Control system:
-
PLC+Touch Screen
-
Automation:
-
Fully Atuomatic
-
Size:
-
1.89*0.92*1.33m
Product Description

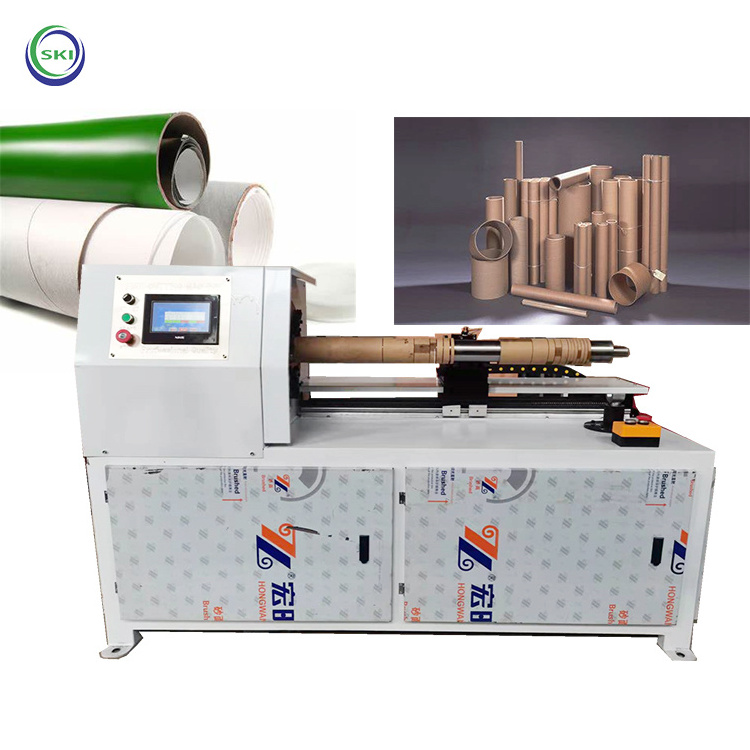

Paper Tube Core Cutter Automatic Paper Tube Core Cutter Cutting Paper Pipe Machine Cardboard Tube Cutter
1.High capacity：100-120pcs/min;
2.Best system: PLC control system with touch screen(English), adjust data easily;
3.Simple structure: one worker can operate easily, save time and labor;
Specification
|
Model
|
SKQZ-1000
|
Speed control
|
servo motor
|
|||
|
Paper tube length
|
10-2500mm
|
Feed mode
|
Pneumatic
|
|||
|
Paper tube diameter
|
50-200mm
|
Power
|
2.2kw
|
|||
|
Paper tube thickness
|
1-20mm
|
Weight
|
470kg
|
|||
|
Number of cutter
|
1 or multi blade
|
Size
|
1890*920*1330mm
|
|||
|
Paper Tube Core Cutter Automatic Paper Tube Core Cutter Cutting Paper Pipe Machine Cardboard Tube Cutter
|
|
|
|
|||
Detailed Image
1. The machine size can be customized according to your require, like
site constraints, need smaller size machine;
2. The machine color can be adopted according to your company style.
3.The machine can cut different size paper core through changing mold, so we need your accurate diameter of paper core to make mold, can equip extra mold with cheap price.
Full Copper Motor
PLC system with touch screen
Cutting resolution up to 0.01mm
Why Choose Us
Machine will be packed in wooden case to make sure the machine is in perfect condition when you receive it.
Professional team make the best shipping plan to save time and costs. We'll send you documents, like BL, PL, Invoice, CO etc.
Company&Certifications
Welcome to Zhengzhou Oski Machinery Co., Ltd.
Zhengzhou Oski Machinery Co., Ltd. is a factory with many years of production experience and good raw material supply, so the
price is very competitive; In addition, all raw materials are 100% new, ensuring the overall quality and service life of the
machine. Test the machine before leaving the factory to ensure the normal operation of the machine. Send spare parts to you for
replacement to reduce the international transportation cost of customers later.
Workshop
FAQ
|
MOQ
|
Minimum order quantity is 1 set, More quantity more discount.
|
|
Machine Voltage
|
We can customize the voltage as your request. Like 110v/220v/380v/415v, 1 or 3 phases.
|
|
Payment methods
|
Alibaba online order, T/T bank transfer, WeChat, Alipay, L/C, etc.
|
|
Warranty time
|
Our warranty time is 2 years. Free spare parts within 2 years. After warranty, we still supply online after-sales service.
|
|
Production time
|
The machine is generally in stock, the production time is about 3-7 days, and the transportation will be arranged for you as soon as possible.
|
|
Machine quality
|
All machines are brand new, and the quality of the machines is our top priority. Before leaving the factory, we will test the machines to ensure that they can work normally.
|
