Quick Details
-
Size:
-
13000*2500*3300mm
-
Place of Origin:
-
Shandong, China
-
Axle:
-
13 Ton Fuwa Brand
-
Suspension System:
-
Mechanical Supension
-
Function:
-
Transport Heavy Duty Equipment
-
Brake System:
-
WABCO Valve
-
Tire Type:
-
11.00R20 12PR,12R22.5 12PR
-
King pin:
-
2"(50mm)or3.5"(90mm) JOST
-
Twist Locks:
-
12 Sets (lifting
-
Packing:
-
Spare Parts
-
Leaf Spring:
-
10 Pcs Thicken Leaf Spring
-
Rim:
-
8.00-20 /8.5-20/8.8-20/8.5-22.5/9.0-22.5
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
33700kg
-
Brand Name:
-
jiayun
-
Size:
-
13000*2500*3300mm
-
Place of Origin:
-
Shandong, China
-
Axle:
-
13 Ton Fuwa Brand
-
Suspension System:
-
Mechanical Supension
-
Function:
-
Transport Heavy Duty Equipment
-
Brake System:
-
WABCO Valve
-
Tire Type:
-
11.00R20 12PR,12R22.5 12PR
-
King pin:
-
2"(50mm)or3.5"(90mm) JOST
-
Twist Locks:
-
12 Sets (lifting
-
Packing:
-
Spare Parts
-
Leaf Spring:
-
10 Pcs Thicken Leaf Spring
-
Rim:
-
8.00-20 /8.5-20/8.8-20/8.5-22.5/9.0-22.5
Product Parameters
|
Detailed configuration introduction (support for customized selection)
|
|
|
|
|||
|
Product name
|

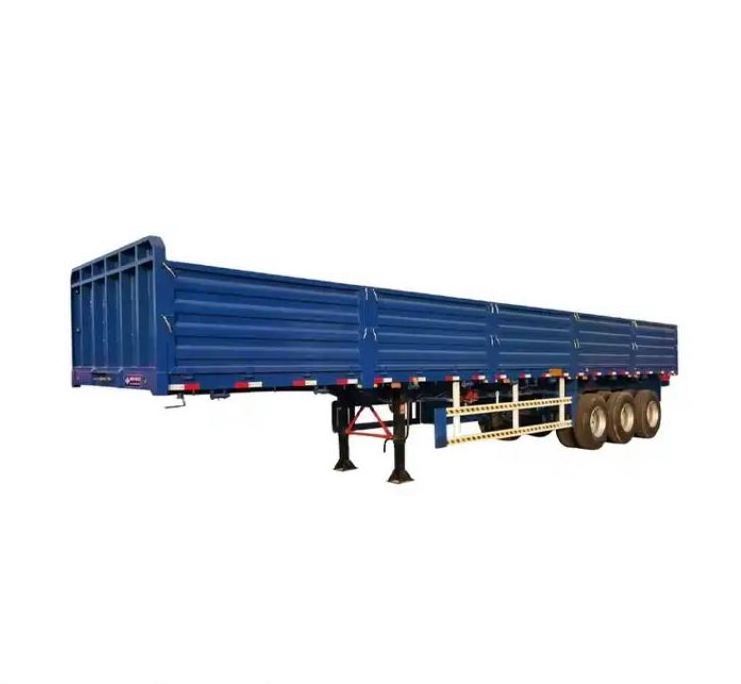

Railing semi-trailer
|
Product model
|
LFY9400LBE
|
|||
|
Outer dimension (L x W x H) (mm)
|
13000,12500,12000×2500,2550×3300,3100,2900,2700,2500
|
Interior dimensions (L W x H) (mm)
|
12830,12330,11830×2470,2450,2430,2420,2400,2380,2350,2300×600,550
|
|||
|
Gross mass (kg)
|
40000
|
Quality of service (kg)
|
6300,6000,5800
|
|||
|
Support device type
|
YX-D28T
|
Number of steering shafts (units)
|
/
|
|||
|
Tyre specification
|
11.00R20 12PR,12R22.5 12PR
|
Number of tires (PCS)
|
4/4/4
|
|||
|
Trailer design maximum speed (km/h)
|
/
|
Side guard
|
contain
|
|||
|
Rear lower guard
|
contain
|
Reflective body marking
|
contain
|
|||
|
Number of tail markers
|
2
|
Brake type (front/rear)
|
Drum type/drum type/drum type
|
|||
|
Pneumatic brake system compressed air drying, oil and waterseparation device
|
contain
|
Automatic brake clearance adjustment device
|
contain
|
|||
|
Brake lining replacement alarm devict
|
contain
|
Number of pressure test connectors (Air tanks) (PCS)
|
2
|
|||
|
Number of pressure test connectors (brake chamber) (PCS)
|
6
|
Type of mechanical connection device
|
KZ10
|
|||
|
Specifications for the tractor seat matching the semi-trailer
|
No. 50
|
Height of traction pin seat plate from ground (mm)
|
1300
|
|||
|
Front turning radius of semi-trailer (mm)
|
1684,1751,1821,1894,1969,1665,1733,1803,1877,1953
|
The front turning radius of the tractor matching the semi-trailer (zmm)
|
2120
|
|||
|
Semi-trailer clearance radius (mm)
|
2300
|
The rear turning radius of the tractor matching the semi-trailer (mm)
|
2200
|
|||
|
Braking response time C (s)
|
0.4
|
The horizontal distance between the center axis of thetraction pin and the final end of the semi-trailer (mm)
|
11900,11800,11700,11600,11500,11200,10700
|
|||
|
Suspension type
|
Non-self-contained leaf springs
|
|
|
|||
Q1.Why did you choose us?
A: Our company's reputation is very high, the company's products are
of high quality and durable, and the company enjoys a high reputation
abroad.
Q2.Which markets do you export your vehicles to?
A:SoutheastAsia, Africa, Oceania, Middle East countries and so on.
Q3 . If you want to get an offer, what information should you let me
know?
A: Please let us know your purpose, road condition, type of goods, tons
of your cargo, size and quantity of trailers, etc.You provide information about more accurate models and prices.
Q4.What can you buy from us?
A: Dump trailers, flat trailers, full trailers, fence trailers, barn trailers,
container trailers, tank trailers, vehicle carriers, van trailers, all kinds of
special vehicles, dump trucks, tractors, trailer parts and so on.
Q5.Can we print our own brand on the vehicle?
A: Of course, we can support OEM and ODM services.
Q6. Can we print our own brand on the vehicle?
A: Of course, we can support OEM and ODM services.
Q7. Do you recruit agents for your products?
A: Yes, we are willing and welcome for you to contact us to do
business.
|
|
