Quick Details
-
Weight:
-
3500 KG, 3500kg
-
Product name:
-
Soil sampler borehole drilling rig environmental survey equipment
-
Core drilling diameter:
-
40-120mm
-
Drilling depth:
-
30m
-
Walking speed:
-
25 km/h
-
Climb ability:
-
30 degree
-
Min.ground clearance:
-
250mm
-
Working pressure:
-
1.45-2.5Mpa
-
Air consumption:
-
15-27
-
Rotation:
-
42-80 RPM
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HW
-
Dimension(L*W*H):
-
3400*1500*2400mm
-
Weight:
-
3500 KG, 3500kg
-
Product name:
-
Soil sampler borehole drilling rig environmental survey equipment
-
Core drilling diameter:
-
40-120mm
-
Drilling depth:
-
30m
-
Walking speed:
-
25 km/h
-
Climb ability:
-
30 degree
-
Min.ground clearance:
-
250mm
-
Working pressure:
-
1.45-2.5Mpa
-
Air consumption:
-
15-27
-
Rotation:
-
42-80 RPM
Product Description

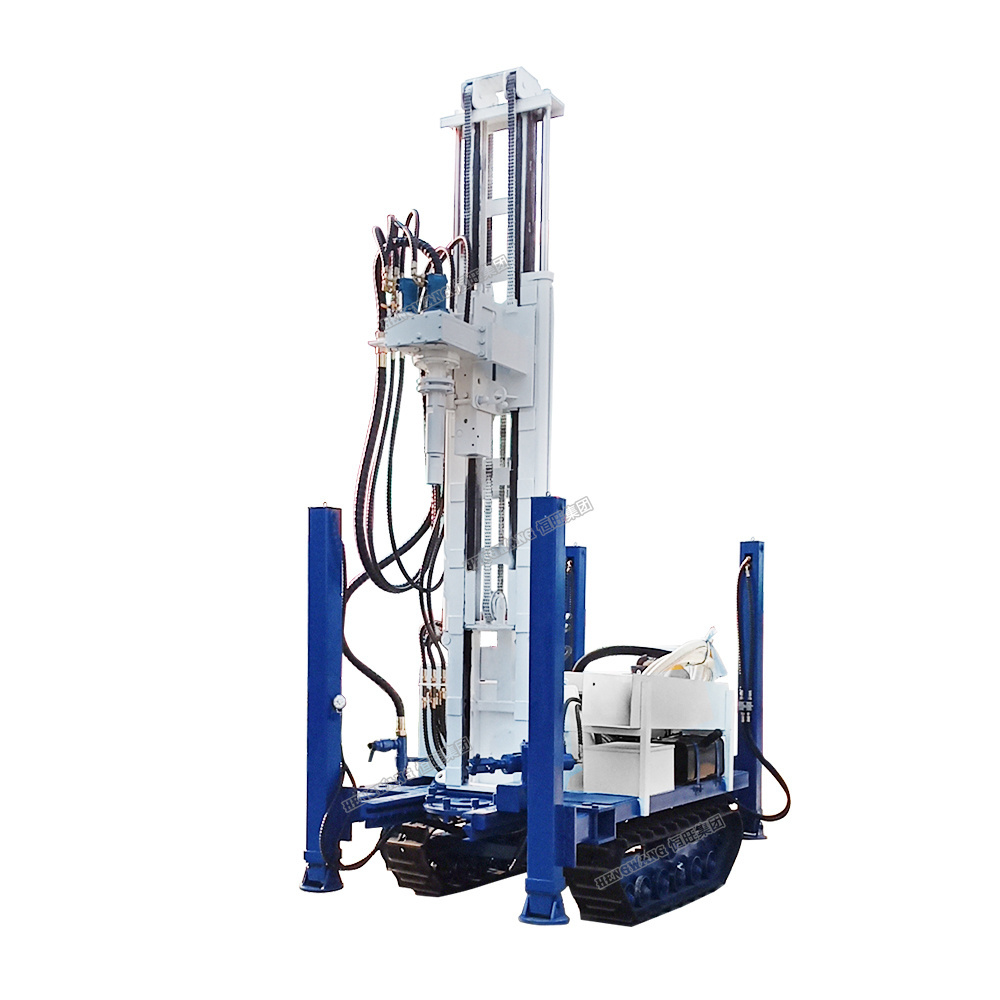

Soil sampler borehole drilling rig environmental survey equipment
Crawler-type environmental sampling drilling rig machine, static environmental penetration equipment for environmental protection,suitable for multiple geological prospecting, environmental protection, low noise, good coring effect, compact structure, fast advance, flexible movement, wide application area and other advantages.
Crawler environmental sampling rig is a highly efficient and multi-functional exploration equipment, which is mainly applicable to the preliminary geological exploration work of multiple projects. The crawler-type environmental sampling rig uses new hydraulic technology, supporting high-torque hydraulic motor rotation and large-diameter hydraulic cylinder propulsion. Famous factory engines provide power for the hydraulic system and extend the life of the diesel engine. The unique pump set design facilitates maintenance and reduces maintenance costs.Centralized control hydraulic console is convenient for operation.
This series of environmental sampling rigs use excavator crawler chassis, with strong off-road performance. The independent module design allows the rig to be easily installed on the truck, increasing its mobility. The two-speed slewing and advancement speeds allow the rig to explore at different speeds in different formations. The combined positioner can be adjusted and replaced according to different types of drill rods and core tubes to ensure accurate and reliable positioning. The hoisting mechanism facilitates the lifting of the drill rod and core tube,reducing labor intensity.
Specification
|
Model
|
HW-E30 environmental sampling machine
|
|
Core drilling diameter
|
40-120mm
|
|
Drilling depth
|
30m
|
|
Walking speed
|
25 km/h
|
|
Climb ability
|
30 degree
|
|
Min.ground clearance
|
250mm
|
|
Working pressure
|
1.45-2.5Mpa
|
|
Air consumption
|
15-27
|
|
Engine
|
42kw
|
|
Rotation
|
42-80 RPM
|
|
Weight
|
3500kg
|
|
Dimension
|
3400*1500*2400mm
|
Detailed Image
Application
