Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Keeya
-
Model Number:
-
XGN15-12
-
Material:
-
Stainless Steel, Stainless Steel
-
Rated voltage:
-
3kV-40.5kV
-
Rated current:
-
up to 1250A
-
Breaking Capacity:
-
40kav
-
Rated frequency:
-
50/60Hz
-
Protection Level:
-
Enclosure IP4X
-
Application:
-
Indoor, outdoor, substation
-
Certificate:
-
CE ISO CCC IEC
-
SWITCHGEAR Rated voltage:
-
12/24/40.5kv
-
SWITCHGEAR Rated current:
-
630A,1250A
Quick Details
-
Voltage:
-
10
-
Current:
-
630
-
Size:
-
2900
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Keeya
-
Model Number:
-
XGN15-12
-
Material:
-
Stainless Steel, Stainless Steel
-
Rated voltage:
-
3kV-40.5kV
-
Rated current:
-
up to 1250A
-
Breaking Capacity:
-
40kav
-
Rated frequency:
-
50/60Hz
-
Protection Level:
-
Enclosure IP4X
-
Application:
-
Indoor, outdoor, substation
-
Certificate:
-
CE ISO CCC IEC
-
SWITCHGEAR Rated voltage:
-
12/24/40.5kv
-
SWITCHGEAR Rated current:
-
630A,1250A
Product Description
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
Brand Name
|
Keeya
|
|
Model Number
|
XGN15-12
|
|
Color
|
white
|
|
Voltage
|
10
|
|
Current
|
630
|
|
Material
|
Stainless Steel
|
|
Size
|
950, 500, 1600
|
|
Rated voltage
|
3kV-40.5kV
|
|
Rated current
|
up to 1250A
|
|
Breaking Capacity
|
40kav
|
|
Rated frequency
|
50/60Hz
|
|
Protection Level
|
Enclosure IP4X
|
|
Application
|
Indoor, outdoor, substation
|
|
Material
|
Stainless Steel
|
|
Certificate
|
CE ISO CCC IEC
|
Structural Features.

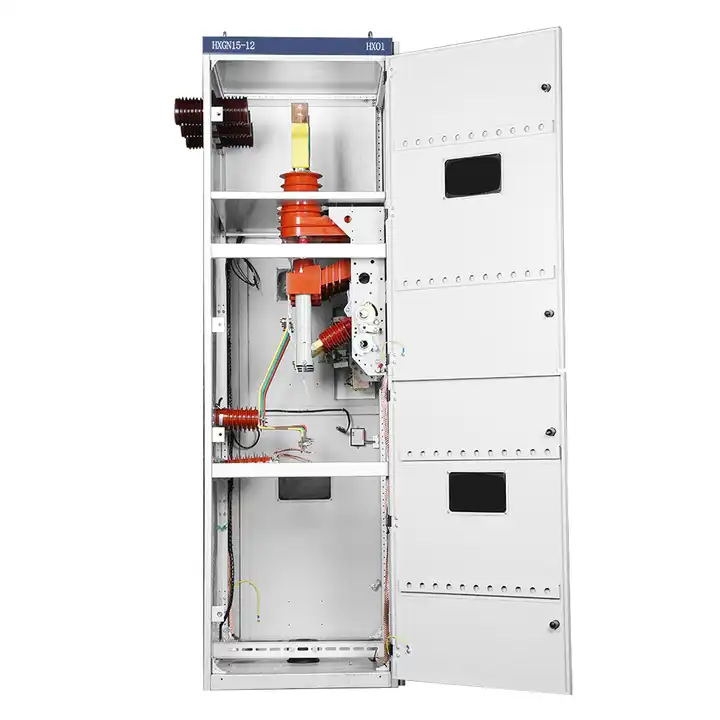

1.XGN15-12 switchgear is a metal-enclosed box structure, and the cabinet frame is welded by angle steel and copper plate. 2.The cabinet is divided into a circuit breaker room. bus room. cable room and relax room. and each room is separated by a steel plate. 3. The front and rear doors of the switchgear are installed off the wall and maintained on both sides 4. There is a pressure relief channel on the ton of the switch cabinet. In case of an internal arc fault. the pressure and gas can be released from the pressure relief channel to ensure the safety of operators. 5. The switchgear has perfect and mature "mechanical five prevention" and simple and clear operation procedures 6.ZN28A-12 ZN63A-12. VS1 and other series vacuum circuit breakers are used as the main circuit breaker of the switch cabinet. Other types of circuit breakers can also be equipped as required Ct19 spring operating mechanism 7. The disconnector adopts gn30-10 rotary disconnector and gn22-10 high current disconnector.
