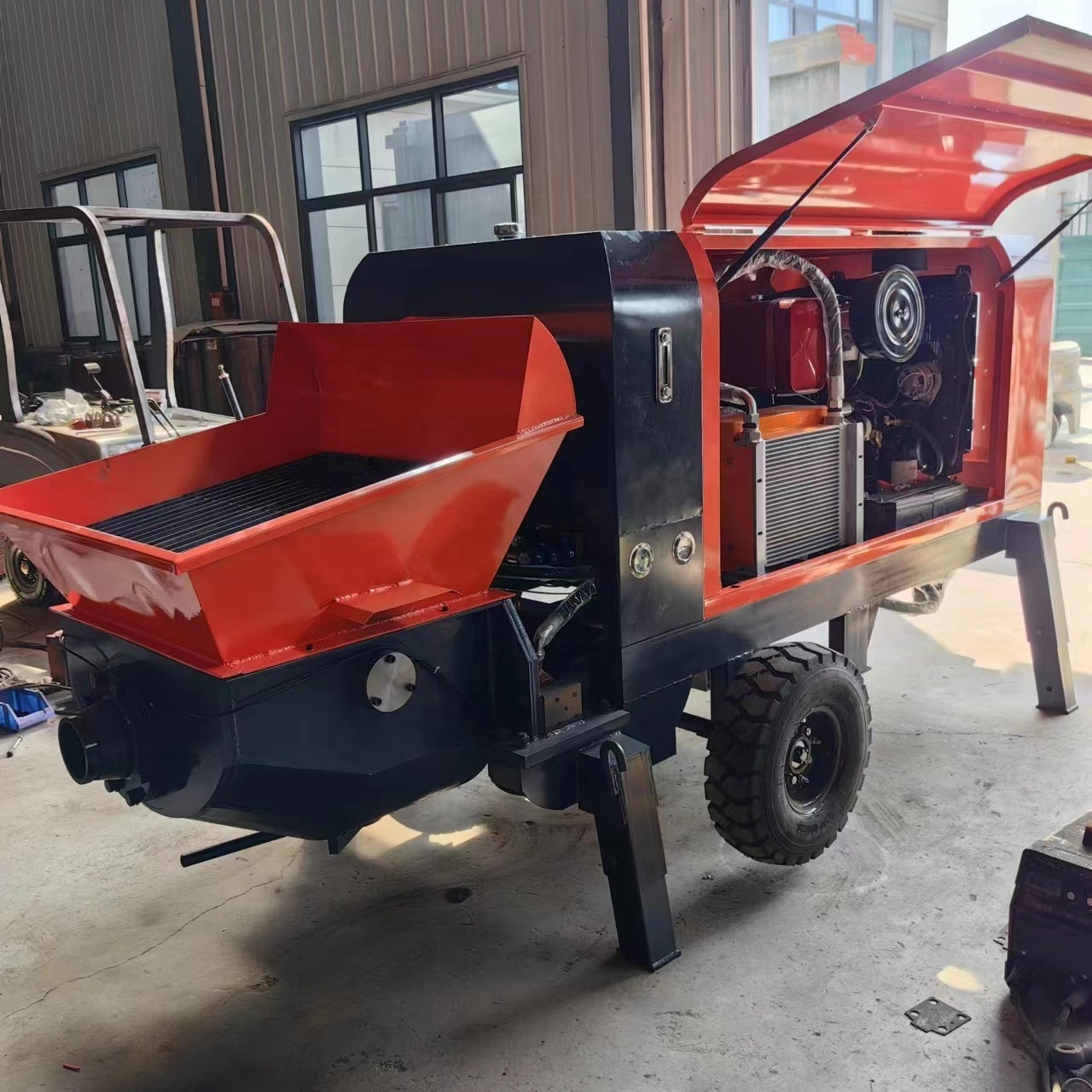

High speed small diesel concrete pump with steel pipe and hose fittings concrete pump machine price

High speed small diesel concrete pump with steel pipe and hose fittings concrete pump machine price

FOB Reference Price: Get Latest Price

≥1 Sets

US $5000

≥10 Sets

US $4000

≥15 Sets

US $2800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Productivity:: 20M³/H

Place of Origin:: Shandong, China

Brand Name:: AOLAI

Weight:: 1600 kg

Dimension(L*W*H):: 3600x1400x1500mm

Product name:: Concrete Pump Truck

Keyword:: Conveying Concrete Equipment

Name:: Motar Concrete Pump

Application:: Construction Engineering

Model:: AL-P30

Concrete pump type:: Diesel Pump

Type:: Construction Device

Concrete pump:: Pumping Concrete Machine

Other name:: Concrete Shotcrete Machine

Usage:: Building Project

Quick Details

Power Type:: Diesel

Max. vertical conveying distance:: 100M

Max. horizontal conveying distance:: 200M

Productivity:: 20M³/H

Place of Origin:: Shandong, China

Brand Name:: AOLAI

Weight:: 1600 kg

Dimension(L*W*H):: 3600x1400x1500mm

Product name:: Concrete Pump Truck

Keyword:: Conveying Concrete Equipment

Name:: Motar Concrete Pump

Application:: Construction Engineering

Model:: AL-P30

Concrete pump type:: Diesel Pump

Type:: Construction Device

Concrete pump:: Pumping Concrete Machine

Other name:: Concrete Shotcrete Machine

Usage:: Building Project

Portable small concrete pump concrete pump price concrete pump mini for sale

Concrete Pumps are the most favored method of transferring liquid concrete nowadays and are a common appliance on building sites now. The invention of the concrete pump has increased the efficiency of building projects, especially when it comes to high-rises buildings.

Application scope of concrete pump

Transportation of floor heating, heat insulation, lightweight foamed cement, mortar, and small aggregate concrete; Conveying (spraying) refractory and thermal insulation materials; Transportation (spraying) of greening soil in ecological environment construction; Transportation (spraying) of plain concrete and fiber concrete in various engineering constructions; Pressure grouting of various foundation piles. To The adopted s-pipe valve reversal can meet the transportation of fine stone concrete; the glasses plate and the cutting ring are made of high-hard wear-resistant alloy materials, which have a longer life; the outlet pressure is high, which can meet the transportation requirements of high-rise buildings and long-distance construction; hydraulic The oil cooling adopts a water-cooled system, which has good cooling effect and is easy to use; it has a reverse pump function to minimize pipeline blockage; it is equipped with a manual centralized lubrication system to ensure the service life of rotating parts; the electrical box is equipped with a wired remote control handle for easy operation.

Products Description

The main features of concrete pump: Hydraulic system: The pumping circuit adopts an open system, and the hydraulic pump adopts a Kawasaki large displacement axial plunger swash plate variable pump to ensure the hydraulic system has strong impact performance, low temperature rise and convenient maintenance; the distribution circuit adopts a constant pressure variable control system , Hydraulic control reversing, reducing the impact of system reversing and improving the service life of hydraulic components. Pumping system: The use of a large-diameter concrete cylinder with good wear resistance, a small installation angle and an optimized design of the hopper, make it have strong suction performance. The S pipe distribution valve is assembled with a floating wear ring to automatically adjust the gap to ensure good sealing performance and easy replacement of the distribution valve. The main oil cylinder adopts a proximity switch to pick up the reversing signal in a non-contact state, which is reliable and easy to adjust; at the same time, it is equipped with a buffer replenishing device, and the piston is equipped with a metal ring seal to ensure sealing and reliability. The concrete cylinder piston adopts split wear-resistant polyurethane rubber, which has low impact and good wear resistance. The pumping system of the whole machine has the characteristics of high reliability, low operating cost and good maintainability. Mine concrete pumps are widely used in construction facilities such as high-rise buildings, highways, water conservancy, bridges and freight yards.

Product Specification

	AL-20	AL-25	Al-30	Al-40	Al-50
Delivery volume:	8-10m³/h	10-12m³/h	12-15m³/h	15-20m³/h	20-25m³/h
Maximum vertical conveying distance:	40m	60m	100m	120m	150m
Maximum horizontal conveying distance:	100m	150m	260m	350m	400m
Fuel tank capacity:	75 liters	120 liters	120 liters	150 liters	180 liters
Working form:	s tube valve type	s tube valve type	s tube valve type	s tube valve type	s tube valve type
Through aggregate:	<2cm	<2cm	<3cm	≤3cm	<4cm
Maximum pressure:	15MPa	18MPa	20mpa	<4cm	<4cm
Bore*Stroke:	120*550	140*650	140*850	160*1000	200*1100
Main oil pump:	63 oil pump	80 oil pump	100 oil pump	112 oil pump	140 oil pump
Motor:	22KW	30KW	37KW	45KW	55KW
Weight:	1000Kg	1500Kg	2000Kg	2400Kg	2800Kg
Machine size	280011001300mm	360013001400mm	380013001400mm	400015001400mm	440015001500mm

Applicable scene

Our Company

Packaging And Shipping

Our Service

Before sale

1. Quick response 2. Professional technical consulting services 3. Provide a variety of related information about the product

On sale

1. Delivery on schedule 2. Strict factory acceptance 3. Use negotiated or suitable packaging for transportation

After sale

1.24 hours technical support 2. Long warranty 3. Sufficient spare parts guarantee

FAQ

1: What kind terms of payment can be accepted? A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted 2: What certificates are available in Machinery? A: For the certificate, we have CE, ISO,EPA(USA),CCC 3: What about the delivery time? A: 7-20 days after receiving the deposit. 4: What about the warranty time? A: 12 months after shipment or 2000 working hours, whichever occuts first. 5. What about the Minimum Order Quantity? A: The MOQ is 1 pcs 6.What about the service? 1). Quick response to every inquiry. 2). Professtional and detailed answer to any of customer's questions. 3). Strict QC and in time delivery. 4). Offer all relative material for customer to know and better use the machine. 5). Periodically after service follow up, offer any necessary support if needed. 6).For the new machine, within determined limits, the manufacture guarantees warranty for a period of 12 months after bought or 20 00 working hours(whichever comes first). 7).The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture. 8).The repairation or replacement for the parts should not exceed the warranty period. 9).The warranty is valid on the condition of all the terms listed in the contract was observed.
