Quick Details
-
Brand Name:
-
Yunyi
-
Product name:
-
Mini stainless steel nitrogen metering needle valve 1/4 ferrules
-
Standard or Nonstandard:
-
can custom according to clients' need
-
Max pressure:
-
6000psi, 3000Psi
-
Medium:
-
liquid or gas
-
Body material:
-
ss304
-
Size:
-
1/8" 1/4" 3/8" 1/2"
-
Applicable medium:
-
Gas or liquid
-
MOQ:
-
1 pc
-
Weight:
-
1kg
-
warranty:
-
12 months
Quick Details
-
Port Size:
-
1/8" 1/4" 3/8" 1/2"
-
Warranty:
-
1 year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Yunyi
-
Product name:
-
Mini stainless steel nitrogen metering needle valve 1/4 ferrules
-
Standard or Nonstandard:
-
can custom according to clients' need
-
Max pressure:
-
6000psi, 3000Psi
-
Medium:
-
liquid or gas
-
Body material:
-
ss304
-
Size:
-
1/8" 1/4" 3/8" 1/2"
-
Applicable medium:
-
Gas or liquid
-
MOQ:
-
1 pc
-
Weight:
-
1kg
-
warranty:
-
12 months
Mini stainless steel nitrogen metering needle valve 1/4 ferrules
Description Mini stainless steel nitrogen metering needle valve 1/4 ferrules
Mini stainless steel nitrogen metering needle valve 1/4 ferrules is one kind of needle valve, with nice appearance, reasonably structured,
long life features, mainly suitable for corrosion resistance and corrosive chemical medium with high temperature and high pressure, it can achieve the purpose of control flow through precision adjustment.

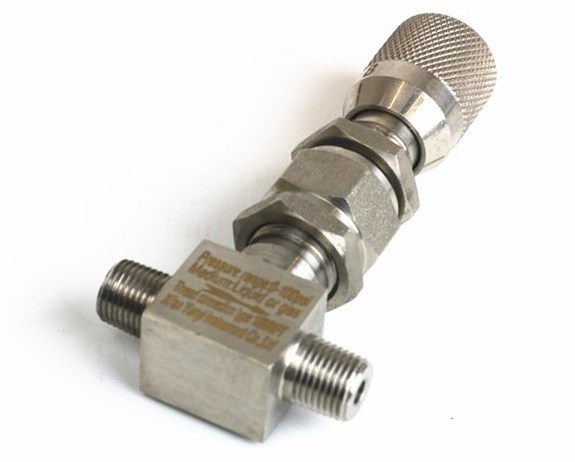

Detailed Images Mini stainless steel nitrogen metering needle valve 1/4 ferrules
|
|
|
|
Specification Mini stainless steel nitrogen metering needle valve 1/4 ferrules
| Material | 304 stainless steel, 316 stainless steel |
| Type | Needle type |
| Drive mode | Manual |
| Flow direction | single |
| Nominal diameter | DW2—DW10 |
| Nominal pressure | 1.0MPa—16.0MPa |
| Max working pressure | 6000PSI |
| Working temperature | -23 °C to 204°C (-10°F to 400°F) |
| CV value | 0.004 or others |
| Connection type | Ferrule-type, thread type or weld type |
| Medium | gas or liquid |
| Weight | About 200g |
Features Mini stainless steel nitrogen metering needle valve 1/4 ferrules
1.needle valve micro metering valve
2.Instrument needle valve
2.working pressures up to 6000 psig (318 bar)
Applications Mini stainless steel nitrogen metering needle valve 1/4 ferrules
Mainly suitable for corrosion resistance and corrosive chemical m edium with high temperature and
high pressure, it can achieve the purpose of control flow t hrough precision adjustment.
Selection Guide Mini stainless steel nitrogen metering needle valve 1/4 ferrules
1. What's the pressure range do you need?
2. What's the your medium temperature? normal temperature or high temperature?
3. What's the thread connection type do you need?
