Products
NC20 Cooling Tower Splash Trickle Grid
NC20 Cooling Tower Splash Trickle Grid
NC20 Cooling Tower Splash Trickle Grid
NC20 Cooling Tower Splash Trickle Grid
NC20 Cooling Tower Splash Trickle Grid
NC20 Cooling Tower Splash Trickle Grid
NC20 Cooling Tower Splash Trickle Grid
NC20 Cooling Tower Splash Trickle Grid

NC20 Cooling Tower Splash Trickle Grid

FOB Reference Price: Get Latest Price
≥500 Square meters
US $0.67
≥2000 Square meters
US $0.65
≥5000 Square meters
US $0.63
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Power:
0
Place of Origin:
Tianjin, China
Brand Name:
LATINO
Dimension(L*W*H):
Customer asked
Weight:
1.45 KG
Application:
Cooling tower
Brand:
LATINO
keyword:
cooling tower net fill
connection:
wedged joint
special heating exchange area:
125㎡ per cubic meter
Flute:
19mm
Length*width:
908 mm * 450 mm
Usage life:
≥20 years

Quick Details

Cooling Type:
Counter Flow
Material:
PP
Voltage:
0
Power:
0
Place of Origin:
Tianjin, China
Brand Name:
LATINO
Dimension(L*W*H):
Customer asked
Weight:
1.45 KG
Application:
Cooling tower
Brand:
LATINO
keyword:
cooling tower net fill
connection:
wedged joint
special heating exchange area:
125㎡ per cubic meter
Flute:
19mm
Length*width:
908 mm * 450 mm
Usage life:
≥20 years

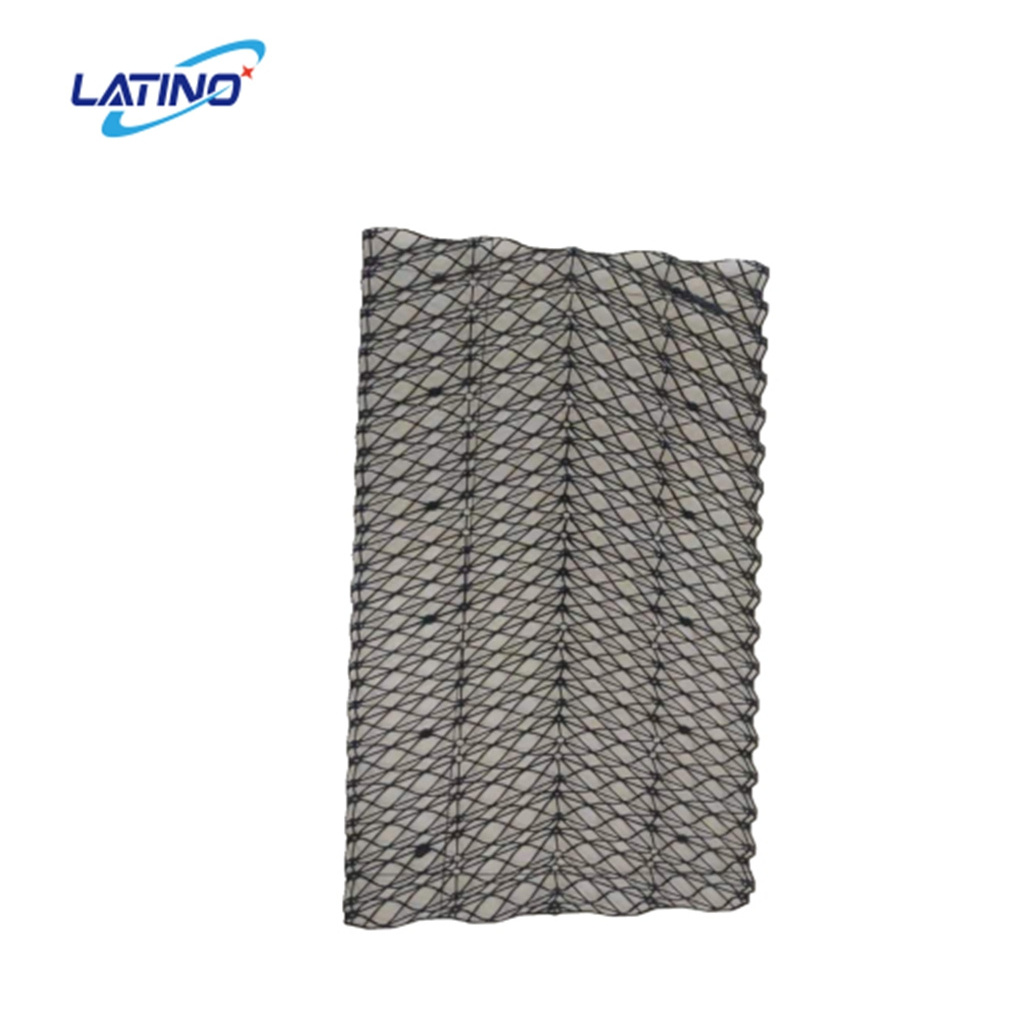

NC20 Cooling Tower Splash Trickle Grid

The Net fill (Non-glued assembly fill) have been specially designed for medium to strongly polluted cooling water, the focus of the development being on a high stability as well as on easy and economical installation. Therefore these fills are built from mechanically joint grids and are easily cleaned. The Net grid packings are high-performance fills which provide an optimized pressure drop.

Features:

1) Products suitable for inferior water qualities

2) Chemical and high temperature resistance of Polypropylene

3) High stability

4) Cleaning with high pressures cleaners possible

5) Long service life

6) Impact resistant

7) Environmentally friendly

8) Economical installation

Technical Data:

1) Length: 900mm

2) Width: 450mm

3) Flute: 19mm

4) Special heating exchange area: 125 square meter / cubic meter

5) Thickness: 1.8mm

6) Conection: wedged joint

7) Maximum total suspended solid: 300 ppm continuoous operation and can be bear under 500 ppm within 10 hours

8) Usage life: ≥ 20 years

Product pictures:

Relevant cooling tower fill:

Our service

1. Provide the inspection and expediting service if you re also purchasing other items in China at the same time;

2. Special packaging design and loading optimization,if needed;

3. LATINO can also help customers to provide quality cost-effective sourcing agency service in dry cooling area and wet cooling area;

4. Quality guarantee is 12 months;

FAQ

Q1. Are you a factory or a trading company?
A: We have our own factory, and separated the exporting business out as a separate company in the free zone of China.
Q2. How to define the product price?
A: PVC material is based on the thickness,vicat point, color, density,fire classification, packing and quantity.
Q3. Do you keep the stock of your products?
A: Yes, we maintain a certain amount of standard products inventory, in time to meet your needs.
Q4. Whether you have the ability to accept the product customization?
A: Products can be customized, we can make the new thermoforming or extruding mode based on your drawings and we can sign a confidentiality agreement about your patented product, pls contact us for any further information.
Q5. How to reassure those who doubt the product quality and actual situations?
A: A professional system can ensure the whole latest development which will be monitored by you through the reports in the diffferent stages.
