Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
deye, DEYE
-
Model Number:
-

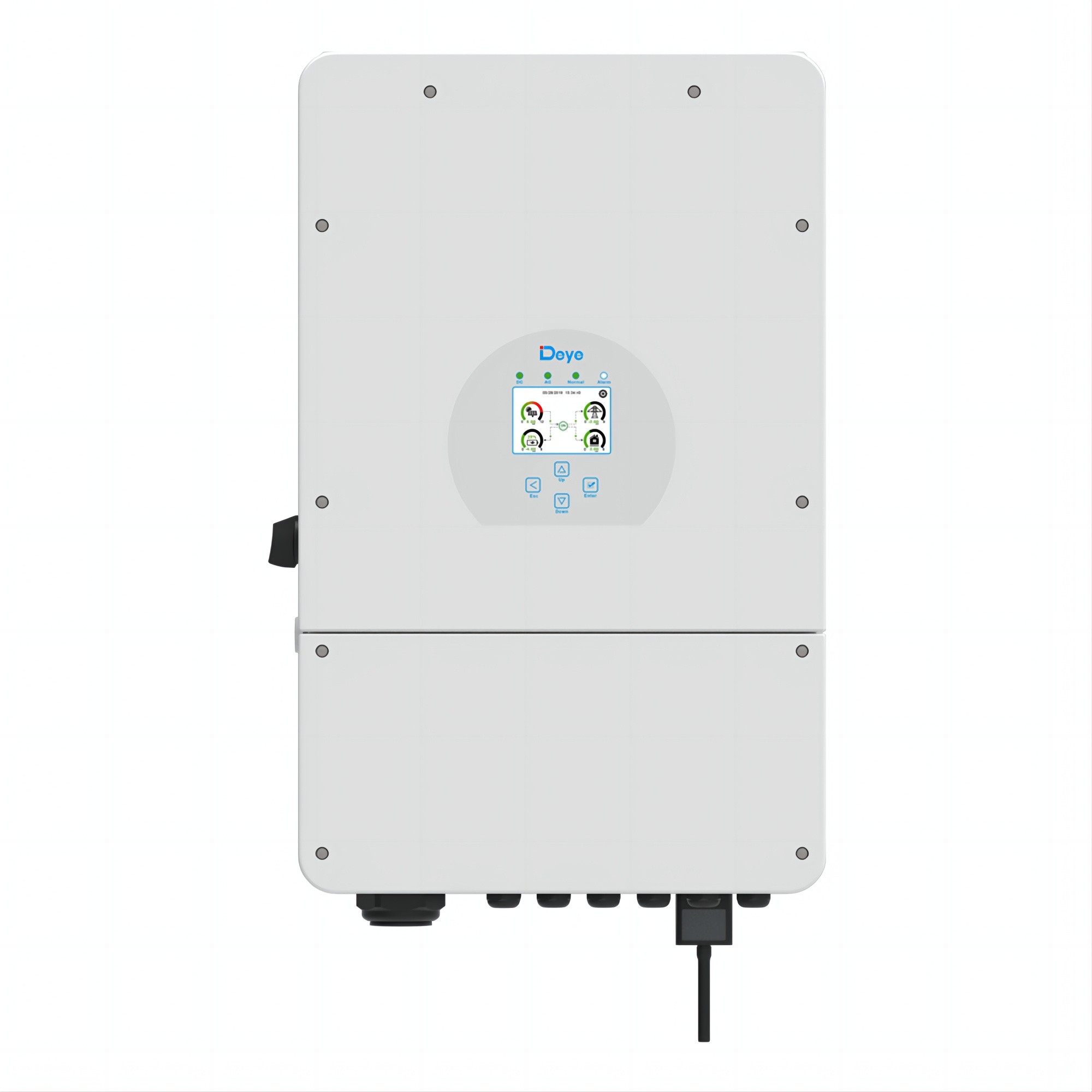

SUN-8K-SG01LP1-EU
-
Input Voltage:
-
125V-425V
-
Output Voltage:
-
120 / 240Vac, 208Vac, 230Vac
-
Output Current:
-
33.4A / 35A
-
Output Frequency:
-
50 / 60Hz
-
Size:
-
420/670/233mm
-
Certificate:
-
SAA/CE/TUV/VDE/CEI
-
Warranty:
-
5Years
-
Weight:
-
32KG
-
Norminal AC voltage; range [V]:
-
120 / 240Vac , 208Vac, 230Vac
-
Rated grid frequency(Hz):
-
50/60
-
Displacement power factor:
-
0.8 leading ... 0.8 lagging
-
Communication with BMS:
-
RS485; CAN
-
Protection Degree:
-
IP65
-
Cooling concept:
-
Natural
-
Topology:
-
Transformerless
-
LCD display:
-
LED-2
-
Installation Style:
-
Wall-mounted
Quick Details
-
Output Type:
-
Single, DUAL
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
99.90%
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
deye, DEYE
-
Model Number:
-
SUN-8K-SG01LP1-EU
-
Input Voltage:
-
125V-425V
-
Output Voltage:
-
120 / 240Vac, 208Vac, 230Vac
-
Output Current:
-
33.4A / 35A
-
Output Frequency:
-
50 / 60Hz
-
Size:
-
420/670/233mm
-
Certificate:
-
SAA/CE/TUV/VDE/CEI
-
Warranty:
-
5Years
-
Weight:
-
32KG
-
Norminal AC voltage; range [V]:
-
120 / 240Vac , 208Vac, 230Vac
-
Rated grid frequency(Hz):
-
50/60
-
Displacement power factor:
-
0.8 leading ... 0.8 lagging
-
Communication with BMS:
-
RS485; CAN
-
Protection Degree:
-
IP65
-
Cooling concept:
-
Natural
-
Topology:
-
Transformerless
-
LCD display:
-
LED-2
-
Installation Style:
-
Wall-mounted
Product Paramenters
|
Model
|
SUN-8K -SG01LP1-US/EU
|
|
Battery Input Data
|
|
|
Battery Type
|
Lead-acid or Li-lon
|
|
Battery Voltage Range (V)
|
40~60
|
|
Max. Charging Current (A)
|
190
|
|
Max. Discharging Current (A)
|
190
|
|
External Temperature Sensor
|
Yes
|
|
Charging Curve
|
3 Stages / Equalization
|
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS
|
|
PV String Input Data
|
|
|
Max. DC Input Power (W)
|
10400
|
|
Rated PV Input Voltage (V)
|
370 (125~500)
|
|
Start-up Voltage (V)
|
125
|
|
MPPT Voltage Range (V)
|
150-425
|
|
Full Load DC Voltage Range (V)
|
200-425
|
|
PV Input Current (A)
|
26+26
|
|
Max. PV ISC (A)
|
34+34
|
|
Number of MPPT / Strings per MPPT
|
2/2+2
|
|
AC Output Data
|
|
|
Rated AC Output and UPS Power (W)
|
8000
|
|
Max. AC Output Power (W)
|
8800
|
|
AC Output Rated Current (A)
|
36.4
|
|
Max. AC Current (A)
|
40
|
|
Max. Continuous AC Passthrough (A)
|
50
|
|
Peak Power (offff grid)
|
2 time of rated power, 10 S
|
|
Power Factor
|
0.8 leading to 0.8 lagging
|
|
Output Frequency and Voltage
|
50 / 60Hz; L1/L2/N(PE) 120/240Vac (split phase), 208Vac (2/3 phase),
L/N/PE 220/230Vac (single phase)
|
|
Grid Type
|
Split phase; 2/3 phase; Single Phase
|
|
DC injection current (mA)
|
THD<3% (Linear load<1.5%)
|
|
Effiffifficiency
|
|
|
Max. Effiffifficiency
|
97.6%
|
|
Euro Effiffifficiency
|
97%
|
|
MPPT Effiffifficiency
|
99.9%
|
|
Protection
|
|
|
Integrated
|
PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Surge protection
|
|
Certififications and Standards
|
|
|
Grid Regulation
|
CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98,
VDE 0126-1-1, RD 1699, C10-11
|
|
Safety EMC / Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
|
|
General Data
|
|
|
Operating Temperature Range (℃)
|
-45~60℃, >45℃ derating
|
|
Cooling
|
Smart cooling
|
|
Noise (dB)
|
<30 dB
|
|
Communication with BMS
|
RS485; CAN
|
|
Weight (kg)
|
32
|
|
Size (mm)
|
420W×670H×233D
|
|
Protection Degree
|
IP65
|
|
Installation Style
|
Wall-mounted
|
|
Warranty
|
5 years
|
Product packaging
