High Quality Photo Control Switch Electric Photo Cell Street Light Photocell Photocontrol

The twist-lock type photocontrols are manufactured as per UL773 and ANSI C136.10 standards. They are mainly used in automatically controlling the outdoor lighting fixtures with mating receptalces. According to different internal control modes, the photocontrol products can be divided into three types which are thermal type, electromagnetic type and electronic type. The electromagnetic type and electronic type can be used in multi-voltage occasions but the thermal type is not suitable for multi-voltage use. And according to the operating characteristics, the electromagnetic type acts instantly and the electronic type and thermal time act with time delay.

If the photocontrol is temporarily not to be used, the shorting cap can be used instead and the lighting fixtures can be controlled by ordinary switch and if the lighting fixture is temporarily not to be used, the open cap can be used instead of the photocontrol.

SPECIFICATIONS AND CHARACTERISTICS:

ANSI C136.10 & UL773 Standard

Volts & Cover Color – 50/60Hz

- Gray standard for 120VAC

- Maroon standard for 240VAC

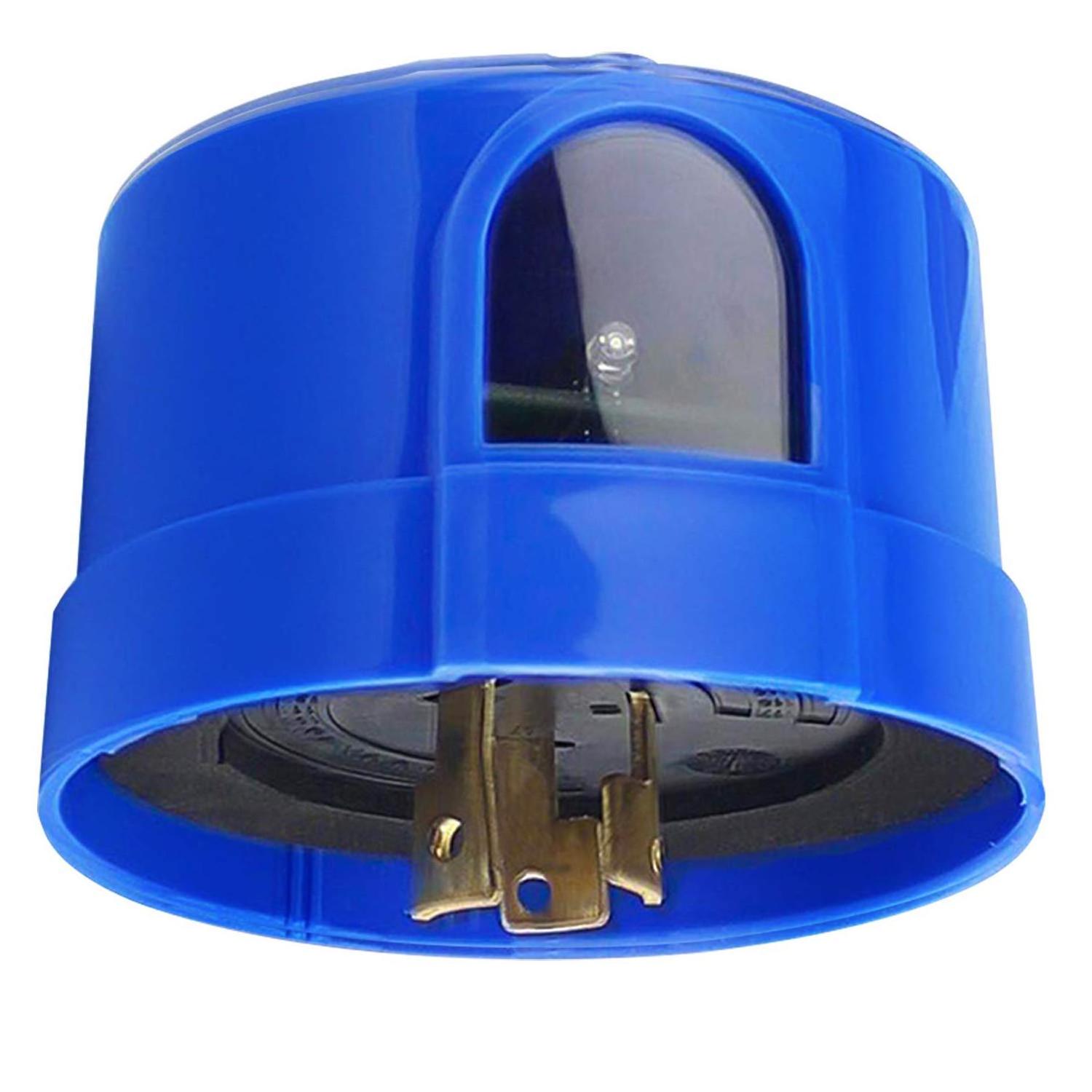

- Blue standard for 120/240VAC (105-305VAC)

Load Rated:

Turn-On Light Level: 10 Lux

Turn-Off Light Level: 35±5 Lux

Optional Range of Turn On to Turn Off Ratio: 1:3 to 4

Turn-On Time Delay: 3-10s

Turn-Off Time Delay: 3-10s

Operating Temperature: -40℃ to +70℃

Relay: 30A

MOV Surge Protection: 90J, 160J, 320J, 360J (4 options)

Energy Consumption: Less than 1Watt (120V<0.5W)

Electrical Life: 5,000 operations at ANSI specified load test levels

Sensor Type: Silicon Photocell

Housing: UV stabilized impact resistant polycarbonate (PC)

Failure Mode: Fail On (standard), Fail Off (for your option)

Size: 80mm
