Quick Details
-
Ejector Stroke(mm):
-
160 mm
-
Ejector Force(kN):
-
70 kN
-
Theoretical Shot Volume(cm³):
-
770 cm³
-
Injection Rate (g/s):
-
215 g/s
-
Injection Weight (g):
-
690 g
-
Screw Speed (rpm):
-
1 - 180
-
Screw diameter (mm):
-
56 mm
-
Screw L/D Ratio:
-
21.6
-
Weight (KG):
-
8000
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
530 mm
-
Model Number:
-
BST-2600A
-
Brand Name:
-
BEST MACHINE
-
Power (kW):
-
40.5 kW
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
yes
-

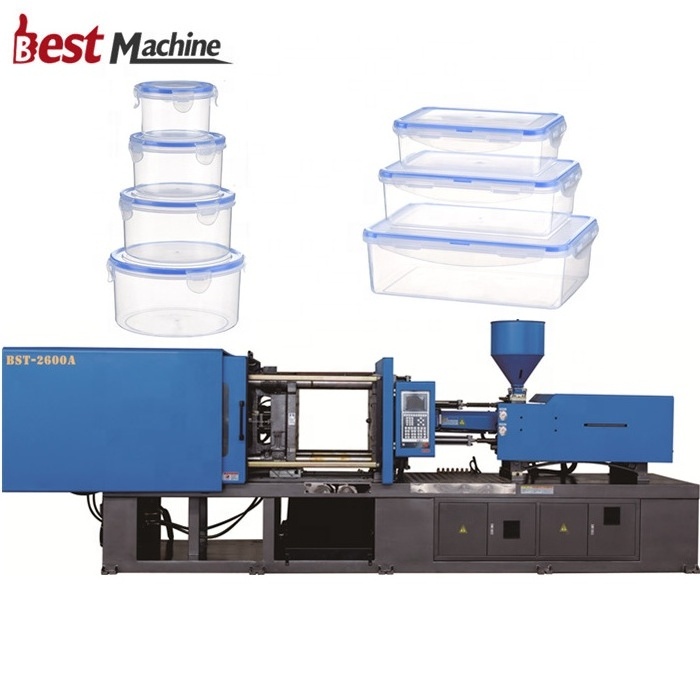

Product name:
-
plastic moulding machine for food container
-
Function:
-
Plastic food container making
-
OIL TANK CAPACITY:
-
350L
-
Injection pressure:
-
178MPa
-
Machiner Dimensions:
-
6.1*1.7*1.8m
-
Machine weight:
-
8T
-
Color:
-
Blue \ Customized
-
BRAND:
-
Best Machine
-
Voltage:
-
380V/ 50Hz 3P+N+E (alterable)
-
Space Between Tie Bars:
-
554*554mm
-
Clamping Force (kN):
-
2600 kN
-
Certification:
-
ISO9001:2000
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
554 mm
-
Distance between Tie Bars(Height)(mm):
-
554 mm
-
Mold Height(mm):
-
200 - 550 mm
-
Ejector Stroke(mm):
-
160 mm
-
Ejector Force(kN):
-
70 kN
-
Theoretical Shot Volume(cm³):
-
770 cm³
-
Injection Rate (g/s):
-
215 g/s
-
Injection Weight (g):
-
690 g
-
Screw Speed (rpm):
-
1 - 180
-
Screw diameter (mm):
-
56 mm
-
Screw L/D Ratio:
-
21.6
-
Weight (KG):
-
8000
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
530 mm
-
Model Number:
-
BST-2600A
-
Brand Name:
-
BEST MACHINE
-
Power (kW):
-
40.5 kW
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
yes
-
Product name:
-
plastic moulding machine for food container
-
Function:
-
Plastic food container making
-
OIL TANK CAPACITY:
-
350L
-
Injection pressure:
-
178MPa
-
Machiner Dimensions:
-
6.1*1.7*1.8m
-
Machine weight:
-
8T
-
Color:
-
Blue \ Customized
-
BRAND:
-
Best Machine
-
Voltage:
-
380V/ 50Hz 3P+N+E (alterable)
-
Space Between Tie Bars:
-
554*554mm
-
Clamping Force (kN):
-
2600 kN
-
Certification:
-
ISO9001:2000
Pictures Of Finished Products Made By Our Machine
The specifications are as follows:
- Imported advanced computer systems, Chinese, English, Russian, Spanish, French, Arabic interface.
- C an save 100 sets of mould parameters.
- Advanced clamping structure and injection parts, precision hydraulic system and circuit design.
- Suitable for producing different types of precision small parts.
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement
.
- Quality:12 month Quality guarantee ,Free spare parts replacement,(NOT include man-made sabotage)
- Service:We provide free advanced training and maintenance in china factory,and 24 hours on-line or phone service if you requ e st we also can pro vid e installation and training abroad,until customer's satisf a ction
- Delivery time: 60 days after advance payment
|
MODEL
|
|
BST-2600A
|
|
|||
|
INJECTION UNIT
|
|
A
|
B
|
|||
|
Screw Diameter
|
mm
|
54
|
56
|
|||
|
Shot Size(Theoretical)
|
cm
3
|
720
|
770
|
|||
|
Shot Weight
|
g
|
650
|
690
|
|||
|
Injection Pressure
|
MPa
|
190
|
178
|
|||
|
Injection Rate
|
g/s
|
200
|
215
|
|||
|
Screw L/D Ratio
|
L/D
|
22.5
|
21.6
|
|||
|
Screw Speed
|
r.p.m
|
0-180
|
|
|||
|
Nozzle Diameter
|
srmm
|
20
|
|
|||
|
CLAMPING UNIT
|
|
|
|
|||
|
Clamp Tonnage
|
KN
|
2600KN
|
|
|||
|
Toggle Stroke
|
mm
|
530
|
|
|||
|
Mould Thickness
|
mm
|
200-550
|
|
|||
|
Space Between Tie-bars
|
mm
|
554*554
|
|
|||
|
Ejector Stroke
|
mm
|
160
|
|
|||
|
Ejector Tonnage
|
KN
|
70
|
|
|||
|
Ejector Number
|
Piece
|
9
|
|
|||
|
Hole Diameter
|
mm
|
160
|
|
|||
|
OTHERS
|
|
|
|
|||
|
Heat Power
|
KW
|
15.5
|
|
|||
|
Max. Pump Pressure
|
MPa
|
16
|
|
|||
|
Pump Motor Power
|
KW
|
25
|
|
|||
|
Valve Size
|
mm
|
16
|
|
|||
|
Machine Dimension
|
m
|
6.1*1.7*1.8
|
|
|||
|
Machine Weight
|
T
|
8
|
|
|||
|
Oil Tank Capacity
|
L
|
350
|
|
|||
