Quick Details
-
Rolling thinckness:
-
0.5-1.5mm
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Longshun
-
Voltage:
-
380/220/400
-
Dimension(L*W*H):
-
8.75*2.23*2.35 m
-
Weight:
-
12000 kg
-
Feeding width:
-
600mm
-
Certification:
-
CE
Quick Details
-
Type:
-
Arching Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
1000sqm per day
-
Rolling thinckness:
-
0.5-1.5mm
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Longshun
-
Voltage:
-
380/220/400
-
Dimension(L*W*H):
-
8.75*2.23*2.35 m
-
Weight:
-
12000 kg
-
Feeding width:
-
600mm
-
Certification:
-
CE

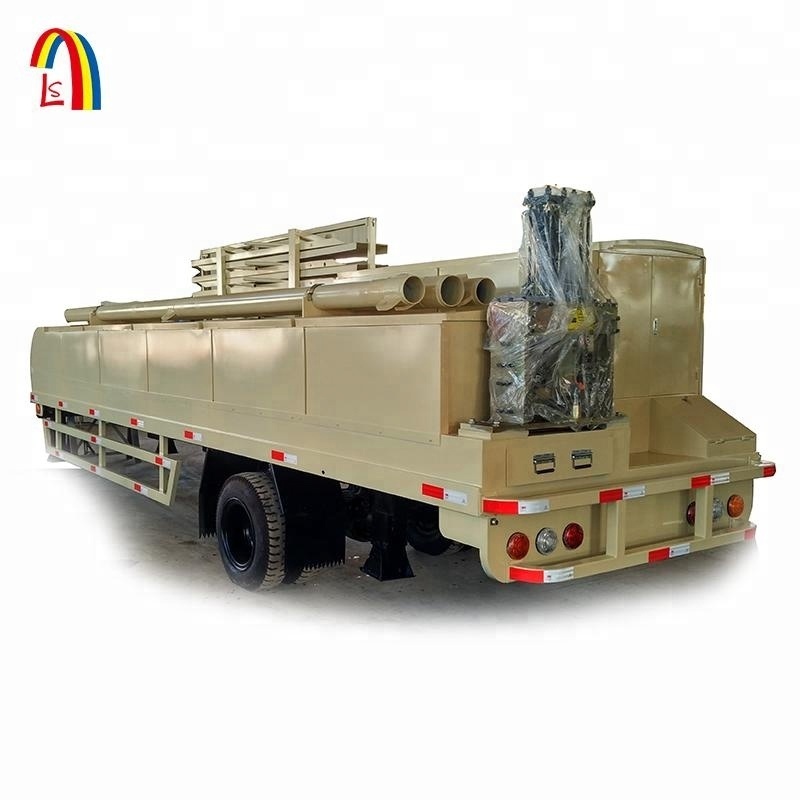

Longshun K Arch Span LS600-305 Standard Type
This machine is movable and used to produce arched steel roofing sheets. Buyers normaly use it to build Garage, steel Sheds / Gergola, Tool house, Warehouse, Plane hangar, Storage, Stable, Chicken house, Hotel, Agricuture warehouse and so on.
- The available material for Arch roof forming machine are PPGI, GI, GL, PPGL and so on.
- Material Thickness: 0.4-1.5 mm
- Material width: 600 mm
- Effective width:305mm
- Max building span: 28 meters
Arch roof roll forming machine real photos: ( by the way, we are real factory direct)
Machine model:
LS600-305
Finished roofing sheets profile drawing
Finished buildings
LSABM
| LS600-305 | LS914-610 | LS1000-680 | LS1250-800 |
| LS600-305 With Generator | LS914-610 With Generator | LS1000-680 With Generator | LS1250-800 With Generator |
Full Hydraulic LSABM
| LS600-305H | LS914-610H | LS1200-800H |
LSUBM
| LSUBM600-305 | LSUBM914-610 | LSUBM1000-550 |
Screw-join Arch Steel Buling Machine
| LS914-610S | LS1000-680S |
Steel Coils
| PPGI (prepainted galvanized steel coil) | PPGL(prepainted galvalume steel coil) | Galvanized steel coil |
