Quick Details
-
Weight:
-
60g/m2
-
Width:
-
1m
-
Mesh Size:
-
3*3mm, 5*5mm
-
Standing Temperature:
-
350
-
Name:
-
Fiberglass Mesh
-
Specification:
-
60g/m2
-
Material:
-
Fiberglass
-
Length:
-
50m/roll
-
Colors:
-
White or customization
-
Label:
-
HoYarn or Free provided for customers
-
Certificate:
-
ROHS,ISO9001
-
Print logo on mesh:
-
Yes
-
Sample:
-
Free
Quick Details
-
Application:
-
Wall Materials
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Hoyarn
-
Weight:
-
60g/m2
-
Width:
-
1m
-
Mesh Size:
-
3*3mm, 5*5mm
-
Standing Temperature:
-
350
-
Name:
-
Fiberglass Mesh
-
Specification:
-
60g/m2
-
Material:
-
Fiberglass
-
Length:
-
50m/roll
-
Colors:
-
White or customization
-
Label:
-
HoYarn or Free provided for customers
-
Certificate:
-
ROHS,ISO9001
-
Print logo on mesh:
-
Yes
-
Sample:
-
Free
Product Description

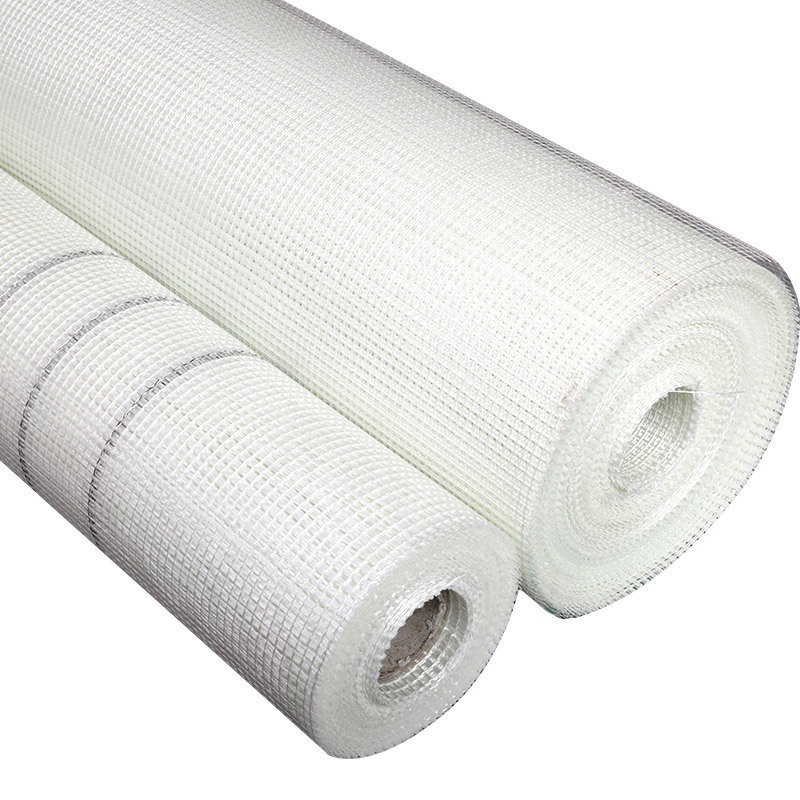

Product Introduction
Fiberglass alkali-resistant mesh cloth, made of medium alkali fiberglass woven fabric and alkali-free fiberglass woven fabric and applied with alkali-resistant coating, is an ideal engineering material in the construction industry. Mesh cloth is widely applied to wall reinforcement, external wall insulation, roof waterproofing, etc.
Features
Corrosion resistance
Good alkali resistance
High tensile strength
Smooth surface and flat
|
Product Name
|
Alkali Resistant Fiberglass Mesh Cloth
|
|
Specification
|
45grams --1000 grams per square meter
|
|
Mesh Size
|
3*3mm,4*4mm,5*5mm,8*8mm,10*10mm,etc.
|
|
Material
|
Fiberglass
|
|
Color
|
White, Yellow, Orange or as clients’ request
|
|
Length
|
25m,40m, 50m or as clients’ request
|
|
Features
|
Corrosion resistance
Good alkali resistance High tensile strength Smooth surface and flat |
|
Usage
|
wall reinforcement, external wall insulation, roof waterproofing
|
|
Alkali Content
|
Medium
|
Product Details
Technical Data
A-Grade Fiberglass Mesh
|
Specification
|
Weight
(g/m2) |
Mesh(mesh/inch)
|
|
Model of Raw Yarn
(tex) |
|
||
|
|
|
Warp
|
Weft
|
Warp
|
Weft
|
||
|
75g 5*5
|
75±5
|
5±0.5
|
5±0.5
|
67
|
250
|
||
|
110g 5*5
|
110±5
|
5±0.5
|
5±0.5
|
97*2
|
282
|
||
|
145g 5*5
|
145±5
|
5±0.5
|
5±0.5
|
130*2
|
375
|
||
|
180g 4*4
|
180±5
|
4±0.5
|
4±0.5
|
160*2
|
315
|
||
|
Specification
|
Fiber Diameter
(μm) |
|
Resin Content
(%) |
Fracture Strength
（N/50mm) |
|
Surface Treatment
|
||
|
|
Warp
|
Weft
|
|
Warp
|
Weft
|
|
||
|
75g 5*5
|
11
|
13
|
13±2
|
900
|
1200
|
Lotion
|
||
|
110g 5*5
|
11
|
13
|
18±2
|
1300
|
1700
|
Lotion
|
||
|
145g 5*5
|
11
|
13
|
15±2
|
1500
|
2100
|
Lotion
|
||
|
180g 4*4
|
11
|
13
|
14.5±2
|
1600
|
2900
|
Lotion
|
||
