Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
1200 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
ZTE
-
Place of Origin:
-
Guangdong, China
-
Product Type:
-
5G Wireless CPE Router
-
Network mode:
-
5G NSA/SA+4G
-
5G Baseband:
-
SDX62
-
5G NSA/SA:
-
n1/3/5/7/8/20/28/38/40/41/71/77/78
-
4G LTE:
-
B1/3/5/7/8/18/19/20/28/32/34/38/39/40/41/42/43/71
-
WIFI:
-
WiFi6,4.8Gbps 128 WiFi users
-
LED indicator:
-
Power,WIFI,Network mode, Lan
-
Interfaces:
-
WAN/LAN/RJ11 tel/power adapter port
-
VPN:
-
PP2P/L2TP/IPSec
-
IPv4,IPv6:
-
Support
Quick Details
-
Max. LAN Data Rate:
-
1900Mbps
-
With Modem Function:
-
Yes
-
Wi-Fi Supported Frequency:
-
5G
-
2.4G Wi-Fi Transmission Rate:
-
1200 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
ZTE
-
Place of Origin:
-
Guangdong, China
-
Product Type:
-
5G Wireless CPE Router
-
Network mode:
-
5G NSA/SA+4G
-
5G Baseband:
-
SDX62
-
5G NSA/SA:
-
n1/3/5/7/8/20/28/38/40/41/71/77/78
-
4G LTE:
-
B1/3/5/7/8/18/19/20/28/32/34/38/39/40/41/42/43/71
-
WIFI:
-
WiFi6,4.8Gbps 128 WiFi users
-
LED indicator:
-
Power,WIFI,Network mode, Lan
-
Interfaces:
-
WAN/LAN/RJ11 tel/power adapter port
-
VPN:
-
PP2P/L2TP/IPSec
-
IPv4,IPv6:
-
Support
Product Specification
|
Item
|
Sub Item
|
Description
|
|
Basical Information
|
Type
|
5G CPE Router
|
|
|

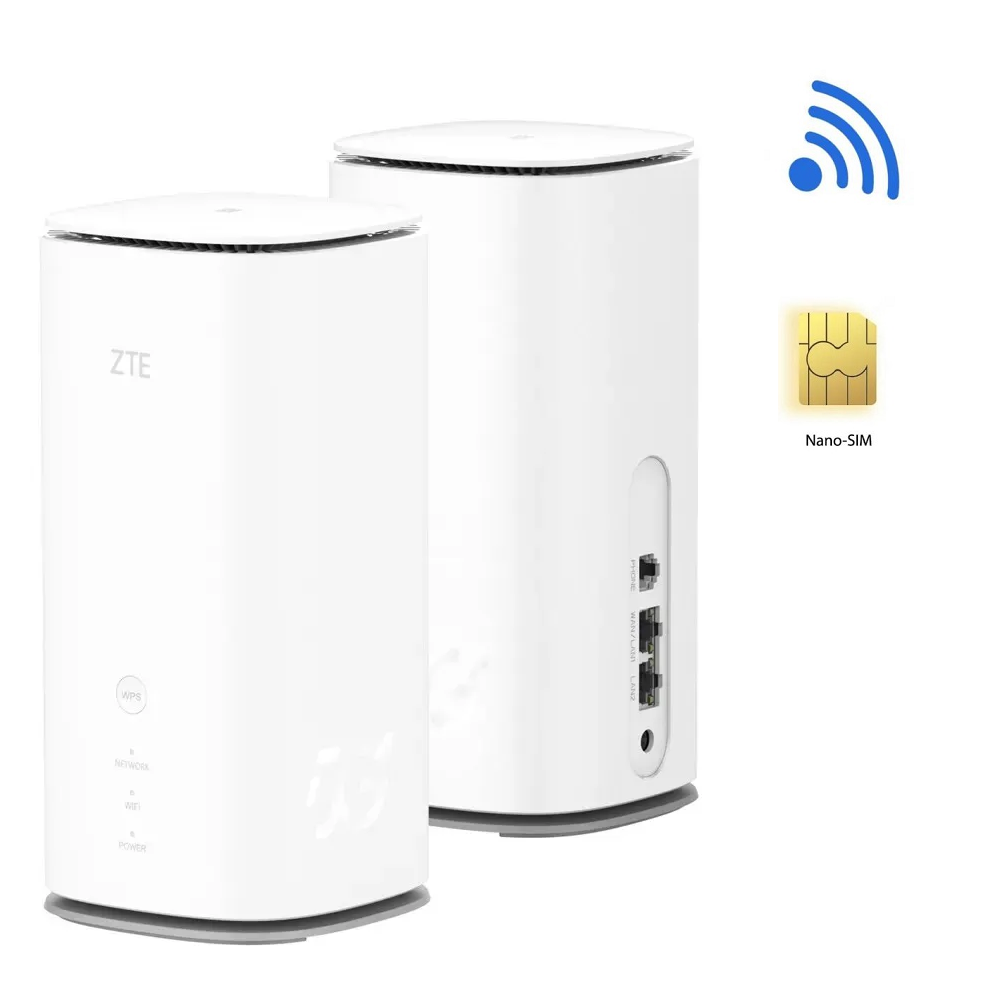

Model Name
|
ZTE MC888 pro
|
|
|
Dimension
|
100*100*205mm
|
|
|
5G Baseband
|
SDX62
|
|
Working band
|
5G NR
|
n1/3/5/7/8/20/28/38/40/41/71/77/78
|
|
|
4G LTE
|
B1/3/5/7/8/18/19/20/28/32/34/38/39/40/41/42/43/71
|
|
|
WIFI
|
WiFi6,4.8Gbps;
2.4G/5G,802.11 a/b/g/n/ac/ax, 128 WiFi users |
|
Speed
|
Maximum Data Throughput
|
5G NSA/SA(DL/UL) 3.8Gbps/900Mbps
4G LTE Cat19(DL/UL) 1.6Gbps/200Mbps |
|
|
CPU
|
ARM
|
|
|
LED indicator
|
Power,WIFI,Network mode, Lan
|
|
|
|
1X 4FF SIM slot
|
|
|
|
1X Nano SIM slot
|
|
|
|
1X RJ11 tel port(VoLTE&CSFB)
|
|
|
|
1X power adapter port
|
|
|
Buttons
|
Reset, WPS, Power
|
|
|
Power supply
|
AC (input): 100V-240V 50Hz/60Hz, DC (output): 12V/2A
|
|
|
Management
|
via Web UI: 192.168.0.1
|
|
|
Language
|
English,Chinese
|
|
|
WIFI Mode
|
AP/STATION mode
|
|
|
WIFI Security
|
OPEN&WPA-PSK&WPA2-PSK&WPA-PSK/WPA2-PSK;
|
|
|
Band selection
|
Support
|
|
|
VPN
|
PP2P/L2TP/IPSec
|
|
|
IPv4,IPv6
|
Support
|
|
|
Firewall
|
Mac/IP address filter, Port forwarding, WiFi Black/Whilte list
|
|
|
Other feature
|
SMS,Phone Book, Data Statistics,USSD,DHCP,DNS,DMZ
|
