Quick Details
-
Brand:
-
TORVEN
-
Color:
-
BLACK
-
Material:
-
LCP
-
Card Type:
-

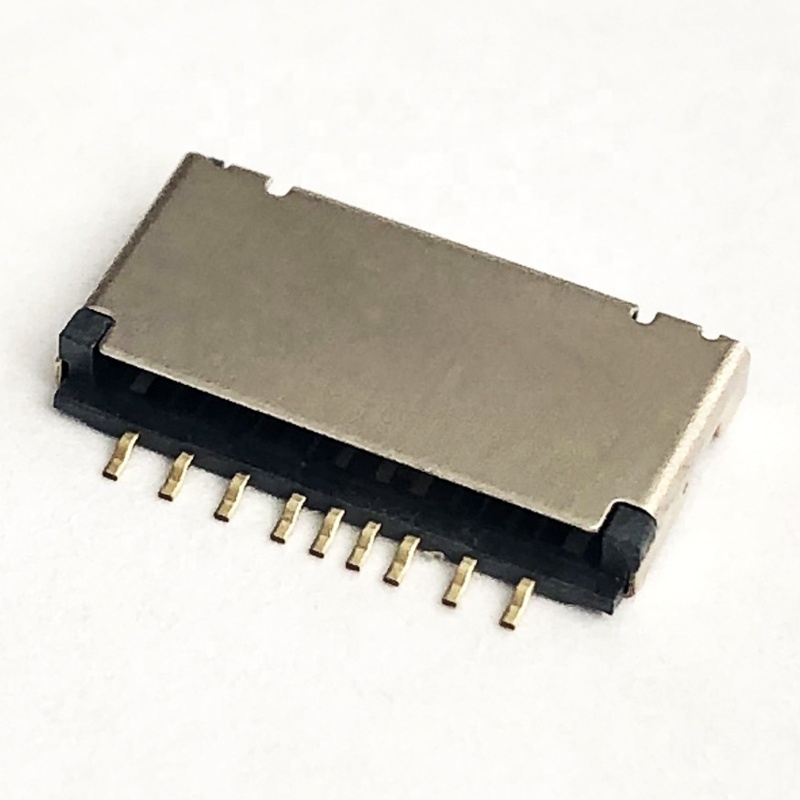

Micro SD Card Connector
-
Number of Positions:
-
9 Pin
-
Current Rating:
-
0.5A
-
Voltage Rating:
-
5V
-
Contact Resistance:
-
50mΩ
-
Insertion Force:
-
9.8N max.
-
Extraction Force:
-
9.8N max.
-
Mounting Type:
-
Surface Mount
-
Terminal Durability:
-
10,000 Cycle
-
Operating Temperature:
-
-40°C+60°C
Quick Details
-
Model Number:
-
TF-10608-03AR0-H150
-
Type:
-
ADAPTER
-
Place of Origin:
-
Guangdong, China
-
Brand:
-
TORVEN
-
Color:
-
BLACK
-
Material:
-
LCP
-
Card Type:
-
Micro SD Card Connector
-
Number of Positions:
-
9 Pin
-
Current Rating:
-
0.5A
-
Voltage Rating:
-
5V
-
Contact Resistance:
-
50mΩ
-
Insertion Force:
-
9.8N max.
-
Extraction Force:
-
9.8N max.
-
Mounting Type:
-
Surface Mount
-
Terminal Durability:
-
10,000 Cycle
-
Operating Temperature:
-
-40°C+60°C
Product Description
Specification
|
brand:
|
TORVEN
|
|
country of origin:
|
Guangdong, China
|
|
model:
|
TF-10608-03AR0-H150
|
Material:
Housing:LCP, UL94V-0 color: black,
Orbit: LCP, UL94V-0 color: black,
Contact:Phosphor bronze, tin 200u" at solder tail, selective gold on contact area,
Shell: Stainless, gold on contact area over nickel
Electrical Characteristics:
Voltage: 100V AC(rms)/DC
Current rating: 0.5A
Operating temperature: -40°C~+60°C
Insulation resistance: 1000M ohms min. at 500V DC
Withstanding voltage: 500V AC/1 minute
Contact resistance: 100m ohm max.
Mechanical Charateristics:
Mating durability: 7000 cycles
Insertion force: 2.0Kgf max.
Extraction force: 0.5Kgf min.
Mating cycle: 10000 cycles at the speed rate of 400~600 cycles/h,
without distrotion of plastic and serious wear and tear on terminals, no signal break.
