Quick Details
-
Brand Name:
-
YUJIE
-
Fork Length:
-
1150mm
-
Fork Width:
-
165mm
-
Overall Dimensions:
-
1530*550*1220
-
Weight (KG):
-
500 kg
-
After-sales Service Provided:
-
No overseas service provided
-
Weight:
-
80kg
-
Wheel:
-
Customer Demanded
-
Color:
-
Customer Demanded
-
Type:
-
Other
-
Feature:
-
High Efficiency
-
Advantage:
-
High Loading Capacity
Quick Details
-
Min. Lifting Height:
-
80mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUJIE
-
Fork Length:
-
1150mm
-
Fork Width:
-
165mm
-
Overall Dimensions:
-
1530*550*1220
-
Weight (KG):
-
500 kg
-
After-sales Service Provided:
-
No overseas service provided
-
Weight:
-
80kg
-
Wheel:
-
Customer Demanded
-
Color:
-
Customer Demanded
-
Type:
-
Other
-
Feature:
-
High Efficiency
-
Advantage:
-
High Loading Capacity
Zhejiang Yujie Intelligent Equipment Co.,Ltd is a manufacturer that have more than 10 years of production experience and development. We mainly supply stacker ,manual hydraulic forklift,jar handle machine and so on.
Company is ISO 9001:2008 certificate,which can ensure quality and efficiency.
Today, the company has grown into a well-known domestic warehouse transport vehicle manufacturing enterprise.
It covers over 30000 square meters and our produsts are more and more popular.
Product Parameter

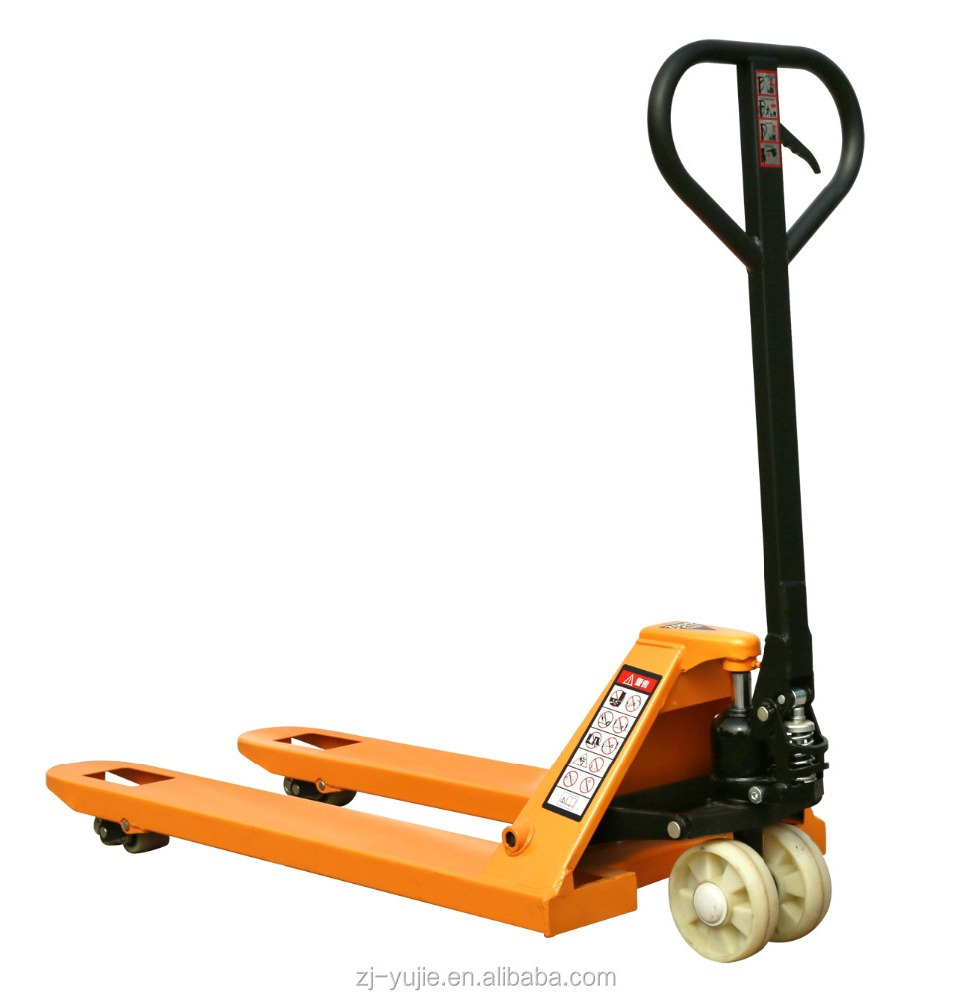

Manual hydraulic jar handle machine is one of the easy lifting equipments. With good quality and easy to use.
|
Manual hydraulic jar handle machine
|
|
|
|
|
||||
|
Model
|
|
JY-DC-01-2000
|
JY-DC-01-2500
|
JY-DC-01-3000
|
||||
|
Load Capacity
|
kg
|
2000
|
2500
|
3000
|
||||
|
Wheel base
|
mm
|
1300
|
1300
|
1300
|
||||
|
Front Wheel
|
|
Φ80*75
|
Φ80*75
|
Φ80*75
|
||||
|
Rear Wheel
|
|
Φ180*50
|
Φ180*50
|
Φ180*50
|
||||
|
Min.Fork Ground Clearance
|
mm
|
80/85
|
80/85
|
80/85
|
||||
|
Fork Lift Height
|
mm
|
200
|
200
|
200
|
||||
|
Width of Fork
|
mm
|
550/685
|
550/685
|
550/685
|
||||
|
Length of Fork
|
mm
|
1150/1220
|
1150/1220
|
1150/1220
|
||||
|
Overall Height
|
mm
|
1220
|
1220
|
1220
|
||||
|
Overall Length
|
mm
|
1530/1600
|
1530/1600
|
1530/1600
|
||||
|
Min.Turning Raduis
|
mm
|
1600
|
1600
|
1600
|
||||
|
Net Weight
|
Kg
|
70/80
|
80/85
|
85/90
|
||||
Advantages
1. Manual hydraulic trucks with light weight, easy to handle.
2. Manual hydraulic trucks can lift the fork and let the handle at the neutral position.
1. What's the warranty?
A: All main parts have 1 year warranty. Any technology questions can contact us any time.
2. What's the delivery time?
A: Normally after the order requirements 15-30 business days.
3. How about the package?
A: Normally the stacker reclaimer with bare package.
Can customized.
More questions about the manual hydraulic jar handle machine can leave us a message or contact us directly.
