- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
LEFOO
-
Model Number:
-
LF16
-
Max. Current:
-
Consult the seller
-
Max. Working Pressure:
-
Consult the seller
-
Pressure range:
-
20~80PSI and 40~100PSI
-
Application:
-
water pump
-
Connection size:
-
1/4NPT, 3/8NPT, G1/4, R1/4 and so on.
-
Electrical voltage:
-
120VAC/240VAC
-
Media:
-
Water
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
240VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LEFOO
-
Model Number:
-
LF16
-
Max. Current:
-
Consult the seller
-
Max. Working Pressure:
-
Consult the seller
-
Pressure range:
-
20~80PSI and 40~100PSI
-
Application:
-
water pump
-
Connection size:
-
1/4NPT, 3/8NPT, G1/4, R1/4 and so on.
-
Electrical voltage:
-
120VAC/240VAC
-
Media:
-
Water
Products Description

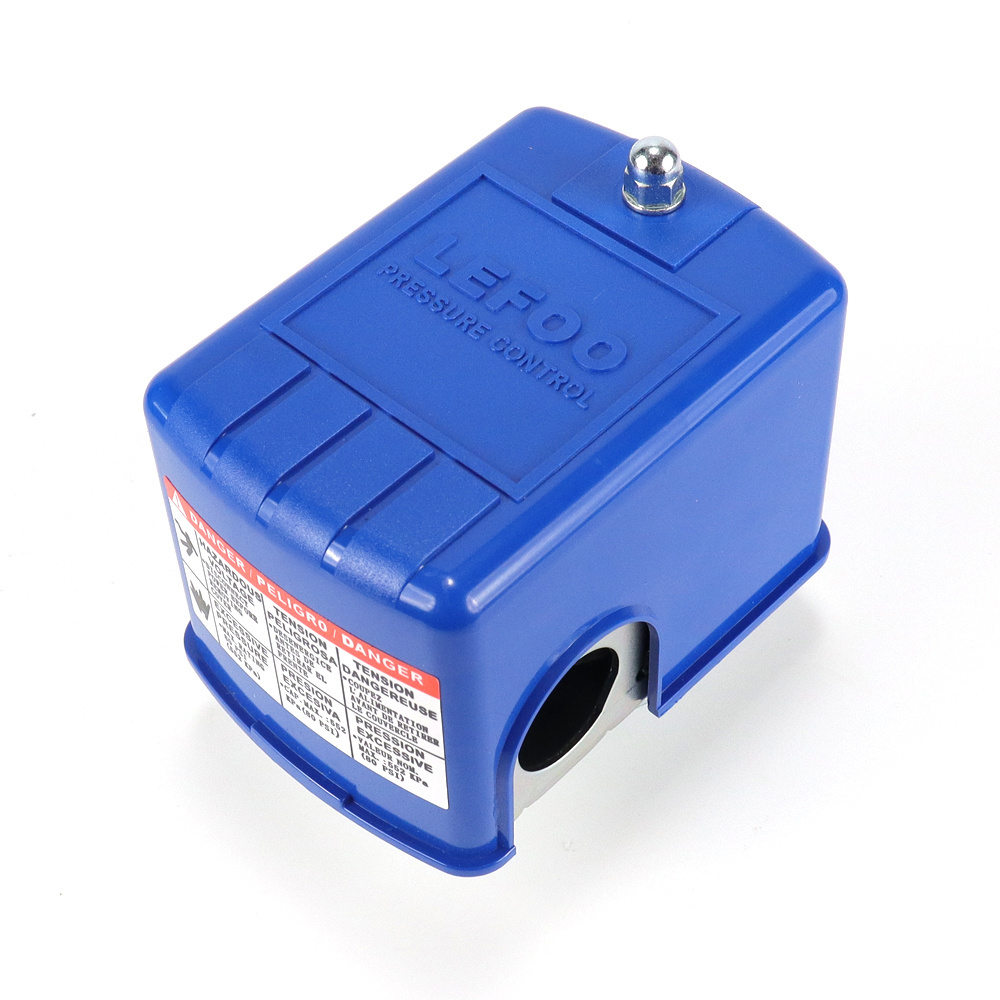

LF16
pressure switches
provide time tested, reliable control for automatic water systems. The switch is universally acceptable for use as original equipment on water well pumps or pumping systems.
|
Number
|
Connection Type
|
|
Connection Size
|
|
|
1
|
single port
|
female
|
1/4NPT
|
|
|
2
|
/
|
male
|
3/8NPT
|
|
|
3
|
/
|
/
|
R1/4
|
|
|
4
|
/
|
/
|
R3/8
|
|
|
5
|
/
|
/
|
G1/4
|
|
|
6
|
/
|
/
|
G3/8
|
|
|
Model
|
Min On
(Cut-In)
psi
|
Min Off
(Cut-Out)
psi
|
Differential
psi
|
Factory
Setting
psi
|
Electrical Rating
|
|
|
Contact
Arrange- ment |
Connection
|
||
|
|
|
|
|
|
1Phase
|
|
3Phase
|
|
|
||
|
|
|
|
|
|
120VAC
|
240VAC
|
240VAC
|
|
|
||
|
LF16
|
20
|
80
|
15-30
|
20-40
|
2HP
|
3HP
|
5HP
|
NC
|
1/4 Male
or Female NPT |
||
|
|
|
|
15-30
|
30-50
|
|
|
|
|
|
||
|
|
|
|
15-35
|
40-60
|
|
|
|
|
|
||
|
|
40
|
100
|
20-35
|
70-100
|
|
|
|
|
|
||
|
LF16-1
|
20
|
80
|
15-30
|
20-40
|
1.5HP
|
2HP
|
3HP
|
|
|
||
|
|
|
|
15-30
|
30-50
|
|
|
|
|
|
||
|
|
|
|
15-35
|
40-60
|
|
|
|
|
|
||
|
|
40
|
100
|
20-35
|
70-100
|
2HP
|
3HP
|
5HP
|
|
|
||
Conversion: 1kgf/cm²=14.2psi 1bar=14.5psi Other connections are available on request.
