Quick Details
-
Market Segement:
-
Engineering transportation
-
Engine Capacity:
-
4 - 6L
-
Gross Vehicle Weight:
-
6001-14000 kg
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Online support, Free spare parts
-
Brand Name:
-
howo
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
8214x2496x3386
-
Cargo Tank Dimension:
-
3600x2300x1200mm
-
Product name:
-
15Ton 4x2 Howo Dump Truck price
-
Certification:
-
BV ISO CCC WMI
-
Engine model:
-
WD615.47
-
Transmission:
-
HW19710
-
Fuel tanker capacity:
-
300L
-
Max. speed (km/h):
-
75
-
Type:
-
new tipper trucks
-
Wheel base:
-
3625+1350
-
Driving type:
-
4x2 6x4 8x2 8X4
-
Cabin:
-
HW76 Comfortable Cabin
Quick Details
-
Condition:
-
New
-
Horsepower:
-
251 - 350hp
-
Emission Standard:
-
Euro 2
-
Market Segement:
-
Engineering transportation
-
Engine Capacity:
-
4 - 6L
-
Gross Vehicle Weight:
-
6001-14000 kg
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Online support, Free spare parts
-
Brand Name:
-
howo
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
8214x2496x3386
-
Cargo Tank Dimension:
-
3600x2300x1200mm
-
Product name:
-
15Ton 4x2 Howo Dump Truck price
-
Certification:
-
BV ISO CCC WMI
-
Engine model:
-
WD615.47
-
Transmission:
-
HW19710
-
Fuel tanker capacity:
-
300L
-
Max. speed (km/h):
-
75
-
Type:
-
new tipper trucks
-
Wheel base:
-
3625+1350
-
Driving type:
-
4x2 6x4 8x2 8X4
-
Cabin:
-
HW76 Comfortable Cabin

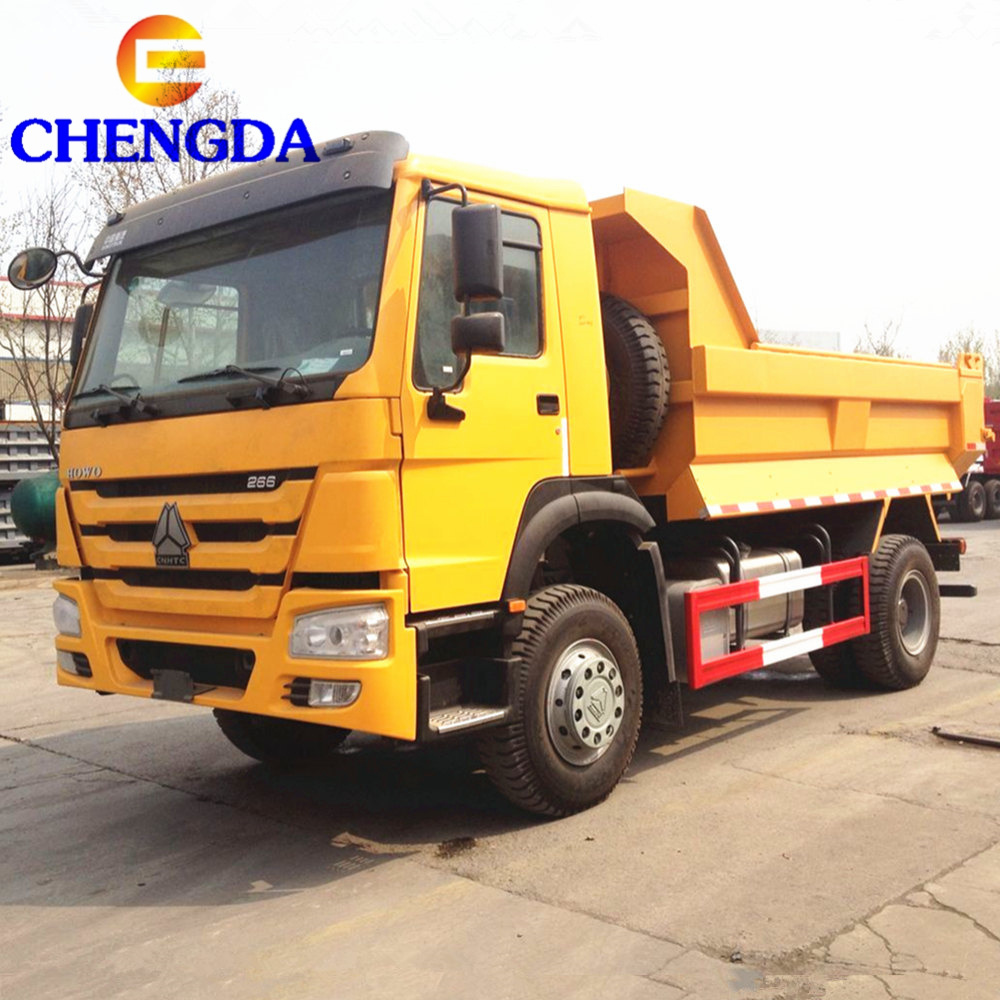

Sinotruk 15 Ton 4x2 Howo Dump Truck
|
Truck Model |
ZZ3157N3647A |
||||
|
Truck Brand |
SINOTRUK –HOWO |
||||
|
Dimension(Lx W x H)(unloaded)(mm) |
8214x2496x3386 |
||||
|
Cargo body size (L*W*H, mm) |
5400x2300x1400 |
||||
|
Cargo body thickness(mm) |
bottom:8mm, side:6mm, |
||||
|
Lift type of Carriage |
Ventral lifting |
||||
|
Approaching angle/Departure angle(°) |
19/26 |
||||
|
Overhang(front/rear) (mm) |
1500/1739 |
||||
|
Wheel base (mm) |
3625+1350 |
||||
|
Max speed(km/h) |
75 |
||||
|
Curb weight(kg) |
12290 |
||||
|
Loading Weight(kg) |
30000 |
||||
|
Fuel tanker capacity |
300L with locking fuel cap |
||||
|
Fuel consumption(L/100km) |
32 |
||||
|
Clutch |
Single-plate dry clutch Φ420mm |
||||
|
Engine Model (Steyr technology, made in China) |
Model |
WD615.47,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and inter cooling |
|||
|
Horse Power, max(kw/rpm) |
371HP,247/2200 |
||||
|
Emission Standard |
EURO 2 |
||||
|
Transmission |
Model |
HW 19710,10 forwards and 2 reverse |
|||
|
Brake system
|
Service brake |
Dual circuit compressed air brake |
|||
|
Parking brake |
spring energy, compressed air operating on rear wheels |
||||
|
Auxiliary brake |
Engine exhaust brake
|
||||
|
Steering system |
Model |
ZF8098 hydraulic steering with power assistance |
|||
|
Front axle |
HF9 , Steering with double T-cross section beam Loading capacity:9000KG |
||||
|
Rear axle |
HC16, Casting axle housing, central double reduction with differential locks between axles and wheels |
||||
|
Color |
Optional |
||||
|
Tire |
12.00R20 10+1 spare pieces |
||||
|
Electrical system
|
Operating voltage |
24V,negative grounded |
|||
|
Starter |
24V,7.35KW |
||||
|
Alternator |
28V,1500W |
||||
|
Batteries |
2*12V.165Ah |
||||
|
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light. |
|||||
|
Cab |
HW76 cab, (one sleeper,with air-condition), all-steel forward control,70ºhydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. |
||||
Dump truck can be transported by bulk cargo ship, put the trucks on the deck:
RoRo ship, drive the truck in the cabin of ship:
Dump truck also can be shipped by flat rack,one truck use one flat rack:
