Quick Details
-
Brand Name:
-
ELP
-
Model Number:
-
ELP-USBFHD06H-RL36
-
Network:
-
USB2.0
-
IR Camera:
-
Infrared camera module
-
Low light:
-
min illumination 0.01lux
-
Max.resolution:
-
1920 x 1080
-
High Definition:
-
1080P(Full-HD)
-
Sensor:
-
CMOS IMX322 Color Sensor
-
Lens (mm):
-
3.6mm lens
-
Dimensions (L x W x D)(mm):
-
38X38mm, 32x32mm
-
usb cable:
-
1m(2/3/5m optional)
Quick Details
-
Function:
-
Built-in Mic
-
Data Storage Options:
-
Full HD
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ELP
-
Model Number:
-
ELP-USBFHD06H-RL36
-
Network:
-
USB2.0
-
IR Camera:
-
Infrared camera module
-
Low light:
-
min illumination 0.01lux
-
Max.resolution:
-
1920 x 1080
-
High Definition:
-
1080P(Full-HD)
-
Sensor:
-
CMOS IMX322 Color Sensor
-
Lens (mm):
-
3.6mm lens
-
Dimensions (L x W x D)(mm):
-
38X38mm, 32x32mm
-
usb cable:
-
1m(2/3/5m optional)

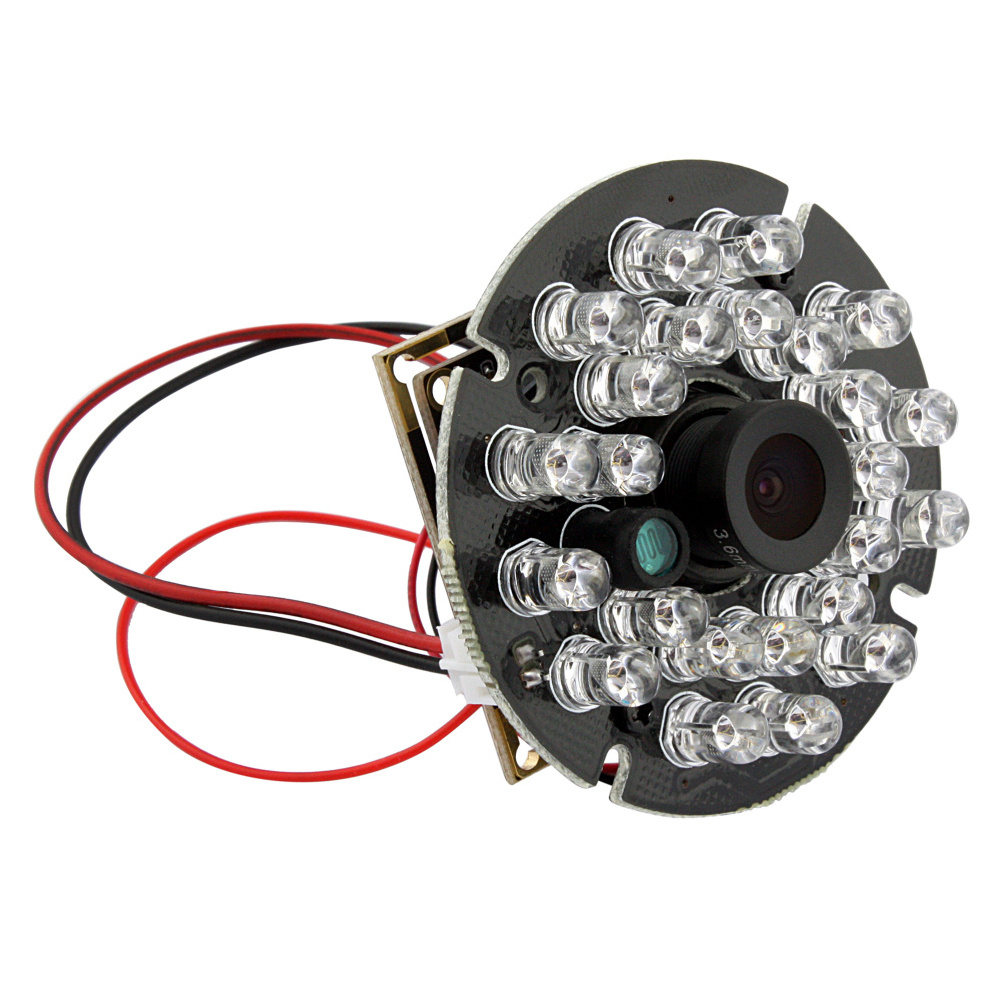

ELP 1080P Sony IMX322 IR Board Night Vision UVC H.264 30fps Low light 0.01Lux Mini Webcam HD USB Camera Module With 3.6mm lens
Model: ELP-USBFHD06H-RL36
1. Ultra Low light Camera, Minimum illumination 0.01lux
2. Support otg protocal
4. Max resolution :1920*1080P ,2.0 Megapixel
5. Highly advanced Sony IMX322 Sensor
6. Compression format : H264 /MJPEG / YUV2(YUYV)
7. White balance Function: Resolve color reduction and tone processing issues
8. Equiped with 3.6mm lens
| Model | ELP-USBFHD06H-RL36 |
| Sensor | Sony IMX322 |
| Lens Size | 1/2.9 inch |
| Pixel Size | 12.8X11.6 mm |
| image area | 2000(H)X1121(V) approx. 2.24 M pixels |
| Max. Resolution | 1080P |
| Compression format | H264 /MJPEG / YUV2(YUYV) |
| Resolution & frame |
H264:
320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps / 800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps |
|
MJPEG:
320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps |
|
|
YUV:
320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 15 fps |
|
| S/N Ratio | 42dB |
| Dynamic Range | 86dB |
| Sensitivity | 5.0V/lux-sec@550nm |
| Mini illumination | 0. 01 lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Connecting Port type | USB2.0 High Speed |
| Free Drive Protocol | USB Video Class(UVC) |
| Support OTG Protocol | USB2.0 OTG |
| AEC | Support |
| AEB | Support |
| AGC | Support |
| Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
| Gain, White balance, Backlight Contrast, Exposure | |
| Lens Parameter | Megapixel 3.6mm lens ,other lens optional |
| Digital audio | Need customize (MOQ 500pcs) |
| LED board power connector | Support 2P-2.0mm socket |
| Power supply | USB BUS POWER 4P-2.0mm socket |
| Power supply | DC5V |
| Operating Voltage | 140mA~190mA |
| Working current | -10~70℃ |
| Working temperature | -20~85℃ |
| Board size /Weight | 38X38mm(Compatible 32X32mm)/ about 30g |
| Cable | Standard 1M / optional 2M,3M,5M |
| Operating system request | Win7 Win8 |
| Linux 2.6 or above | |
| Android 4.0 or above |
