Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
sanlian
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
32000*3600*3200mm
-
Weight:
-
26000 KG
-
Material:
-
Plastic
-
Computerized:
-
Yes
-
Bag type:
-
Cement Bag
-
Machine Type:
-
Extruding machine
-
Automatic Grade:
-
Automatic
-
Power:
-
160KW
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
None
-
Certification:
-
CE
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
33:1
-
Screw Speed (rpm):
-
1000 rpm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
sanlian
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
32000*3600*3200mm
-
Weight:
-
26000 KG
-
Material:
-
Plastic
-
Computerized:
-
Yes
-
Bag type:
-
Cement Bag
-
Machine Type:
-
Extruding machine
-
Automatic Grade:
-
Automatic
-
Power:
-
160KW
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
None
-
Certification:
-
CE
Products Description

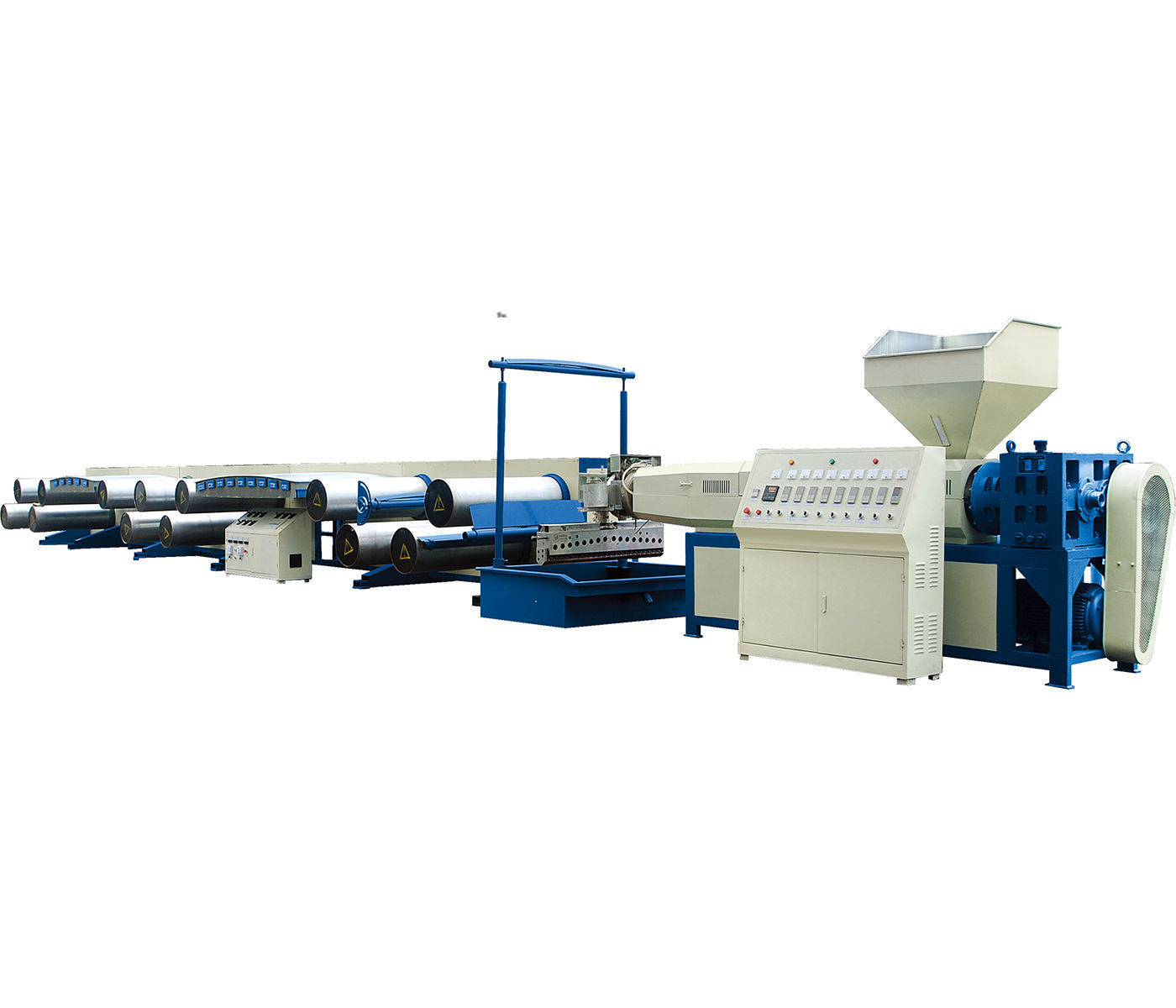

China high speed Plastic Extrusion making Machine bag production line Flat Yarn Extruder Machine flat emitter drip tape machine
Performance And Characteristics:
High speed flat film tape extruder is designed and developed on the basis of foreign advanced technology, use computer control and monitoring to make operation more easy and improve the stability of machine operation. Tape cutting unit use new adjustable structure to extend the blade operation life. Updated film lifting and traction unit structure is more fit to high speed flat film tape extruder demands. The main electrical components adopt international brand products, international Federal Insurance. The main technical indicators of this machine have reached the international advanced level, with fast speed, high output, low energy consumption, good tapes quality, beautiful appearance, smooth running, sensitive and reliable control, excellent manufacturing technology, convenient operation, safety and reliability. This machine is suitable for producing various specifications of tapes by PP or PE.
Main Technical Data
|
Type
|
SJ-PLG1000
|
SJ-PLG1200
|
SJ-PLG1500
|
SJ-PLG1800
|
|
Max. Output of Extruder (kg/h)
|
300
|
320
|
400
|
550
|
|
Screw Diameter (mm)
|
100
|
105
|
120
|
135
|
|
Screw L/D Ratio
|
33:1
|
33:1
|
33:1
|
33:1
|
|
Screw Rotational Speed (r/min)
|
20-120
|
20-120
|
20-120
|
20-120
|
|
Die Length(mm)
|
1000
|
1200
|
1500
|
1800
|
|
Plastic Tape Fiber Density (Tex)
|
60-200
|
60-200
|
60-200
|
60-200
|
|
Max Line Speed(m/min)
|
400
|
400
|
400
|
400
|
|
Winders Number(spindles)
|
180
|
216
|
252
|
324
|
|
Installation Dimensions (LWH)mm
|
38000×4100×3200
|
40000×4100×3200
|
43000×4100×3200
|
48000×4100×3200
|
Note: the price on website is just only for reference, about the actual price, please feel free to contact us.
