Quick Details
-
Voltage:
-
220V(120V)
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
MEM
-
Model Number:
-
TQA-4050, Double Station
-
Dimensions(L*W*H):
-
1080*730*590mm
-
Weight:
-
120 KG
-
Core Components:
-
Heat plate
-
Platen Size:
-
40*50 cm
-
Plate size:
-
40*50cm
-
power:
-
220V/2700W,120V/1800W
-
Time range:
-
0-999s
-
Automatic press:
-
Yes
-
Temperature range:
-
0-250℃(480℉)
-
Controller:
-
Digital Time & Temp. Controller
-
Working mode:
-
Pneumatic
-
Pressure:
-
0-0.8Mpa(0-110psi)
-
Keywords:
-
Heat press machine
Quick Details
-
Condition:
-
New
-
Plate Type:
-
Flatbed Printer
-
Color & Page:
-
Multicolor
-
Voltage:
-
220V(120V)
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
MEM
-
Model Number:
-
TQA-4050, Double Station
-
Dimensions(L*W*H):
-
1080*730*590mm
-
Weight:
-
120 KG
-
Core Components:
-
Heat plate
-
Platen Size:
-
40*50 cm
-
Plate size:
-
40*50cm
-
power:
-
220V/2700W,120V/1800W
-
Time range:
-
0-999s
-
Automatic press:
-
Yes
-
Temperature range:
-
0-250℃(480℉)
-
Controller:
-
Digital Time & Temp. Controller
-
Working mode:
-
Pneumatic
-
Pressure:
-
0-0.8Mpa(0-110psi)
-
Keywords:
-
Heat press machine
Products Description

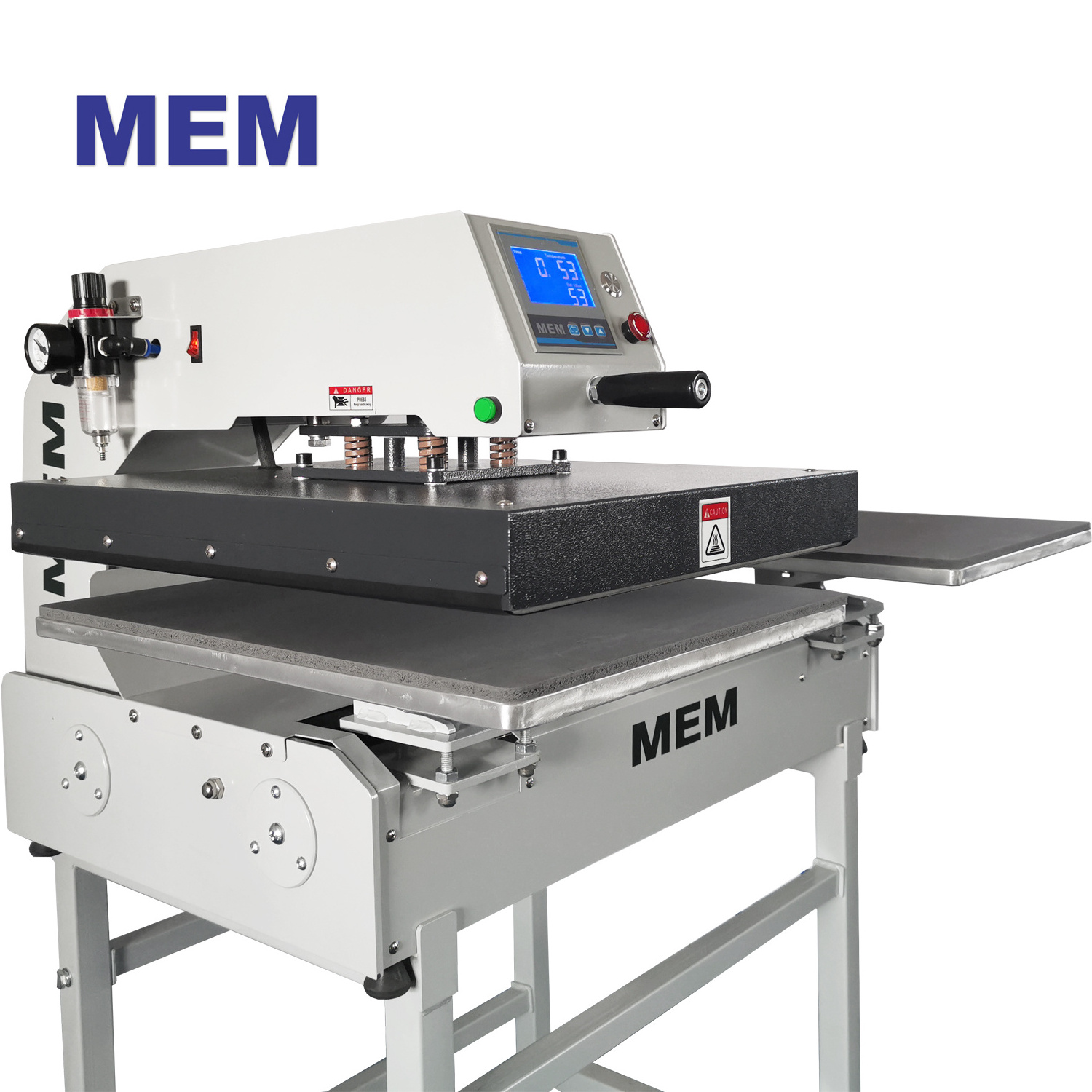

TQA-4050 Semi Automatic Double Station Pneumatic Heat Press Machine
Features
1) Digital temperature and time controller
2) External fuse for safe use and fast change
3) Adjustable press pressure
4) High power quick heat plate.
5) High efficient double station heat press machine
6) Heat plate automatically rise when transfer is done.
7) Optional laser positioning system and foldable workbench are available.
1) Digital temperature and time controller
2) External fuse for safe use and fast change
3) Adjustable press pressure
4) High power quick heat plate.
5) High efficient double station heat press machine
6) Heat plate automatically rise when transfer is done.
7) Optional laser positioning system and foldable workbench are available.
Technical Paramenters
|
Model
|
TQA-4050
|
|
Brand
|
MEM
|
|
Machine Type
|
Pneumatic heat press machine
|
|
Controller
|
Digital temperature and time controller
|
|
Voltage
|
110V/220V
|
|
Power
|
1800W/2700W
|
|
Time Range
|
0-999sec.
|
|
Max. Temp.
|
260°C (500°F)
|
|
Heat plate size
|
40x50cm(36x38cm)
|
|
Dimensions(L*W*H)
|
1080*750*590mm
|
|
Shipping Dimensions(L*W*H)
|
1220x800x720 mm
|
Details Images
Pressure Regulating Valve & Solenoid Valve
Pressure regulating valve
Instruction:
1) Pull pressure adjusting knob and rotate to adjust press pressure.
2) Push the drain valve to release water from air filter.
Solenoid valve
Instruction:
Rotate speed adjusting knob to adjust heat plate press speed.
Instruction:
1) Pull pressure adjusting knob and rotate to adjust press pressure.
2) Push the drain valve to release water from air filter.
Solenoid valve
Instruction:
Rotate speed adjusting knob to adjust heat plate press speed.
Temperature & Time Controller
Brand: MEM
Instruction:
1) Press setting button once to enter Temperature Setting Mode and press again to enter Timer Setting mode.
Instruction:
1) Press setting button once to enter Temperature Setting Mode and press again to enter Timer Setting mode.
2) Press up and down button to set desired temperature & time.
Product Applications
Recommend Products
FAQ
1. Is your company manufacturer or trading company?
We are manufacturer, we design and manufacture heat press machines, tunnel tryers and screen printing machines in Shenyang, China.
We have more than 20 years experiences in printing field.
2. Do you provide OEM service?
Yes, we could do OEM and print your logo on the machines.3. Are the machines CE Approved?
All our machines have CE certification.
4. Our country's voltage and plug are different. How do you solve it?
We will customize the voltage and plug type for you.
5. Do you inspect finished products?
Yes. Each step of production will be inspected by our QC department.
6. How about the guarantee?
Warranty is 1 year including all the parts.
7. Are the machines CE Approved?
All our machines have CE certification.8. Our country's voltage and plug are different. How do you solve it?
We will customize the voltage and plug type for you.
9. Do you inspect finished products?
Yes. Each step of production will be inspected by our QC department.
We are manufacturer, we design and manufacture heat press machines, tunnel tryers and screen printing machines in Shenyang, China.
We have more than 20 years experiences in printing field.
2. Do you provide OEM service?
Yes, we could do OEM and print your logo on the machines.3. Are the machines CE Approved?
All our machines have CE certification.
4. Our country's voltage and plug are different. How do you solve it?
We will customize the voltage and plug type for you.
5. Do you inspect finished products?
Yes. Each step of production will be inspected by our QC department.
6. How about the guarantee?
Warranty is 1 year including all the parts.
7. Are the machines CE Approved?
All our machines have CE certification.8. Our country's voltage and plug are different. How do you solve it?
We will customize the voltage and plug type for you.
9. Do you inspect finished products?
Yes. Each step of production will be inspected by our QC department.
