Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LUDIAO
-
Voltage:
-
380V, 50 Hz.
-
Dimension(L*W*H):
-
2850x2250x2300mm
-
Weight:
-
2000 kg, 2000 Kg
-
Marketing Type:
-
High quality with cheap price
-
Product name:
-
Marble Cutter Machine
-
Function:
-
Stone Engraving Carving Cutting
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Application:
-
Stone Marble Granite Quartz Sandstone
-
Keyword:
-
Multi-blade Stone Cutter Machine
-
Usage:
-
Granite Marble Stone Processing
-
Control system:
-
DSP/MACH 3/NC STUDIO
-
Cutting materials:
-
Marble Granite Quartz Tile Artificial Stone
-
Feature:
-
High Cutting Efficiency
Quick Details
-
Type:
-
Stone Engraving Machine
-
Power:
-
5.5 KW
-
Cutting thickness (max):
-
400mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LUDIAO
-
Voltage:
-
380V, 50 Hz.
-
Dimension(L*W*H):
-
2850x2250x2300mm
-
Weight:
-
2000 kg, 2000 Kg
-
Marketing Type:
-
High quality with cheap price
-
Product name:
-
Marble Cutter Machine
-
Function:
-
Stone Engraving Carving Cutting
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Application:
-
Stone Marble Granite Quartz Sandstone
-
Keyword:
-
Multi-blade Stone Cutter Machine
-
Usage:
-
Granite Marble Stone Processing
-
Control system:
-
DSP/MACH 3/NC STUDIO
-
Cutting materials:
-
Marble Granite Quartz Tile Artificial Stone
-
Feature:
-
High Cutting Efficiency
Product Description

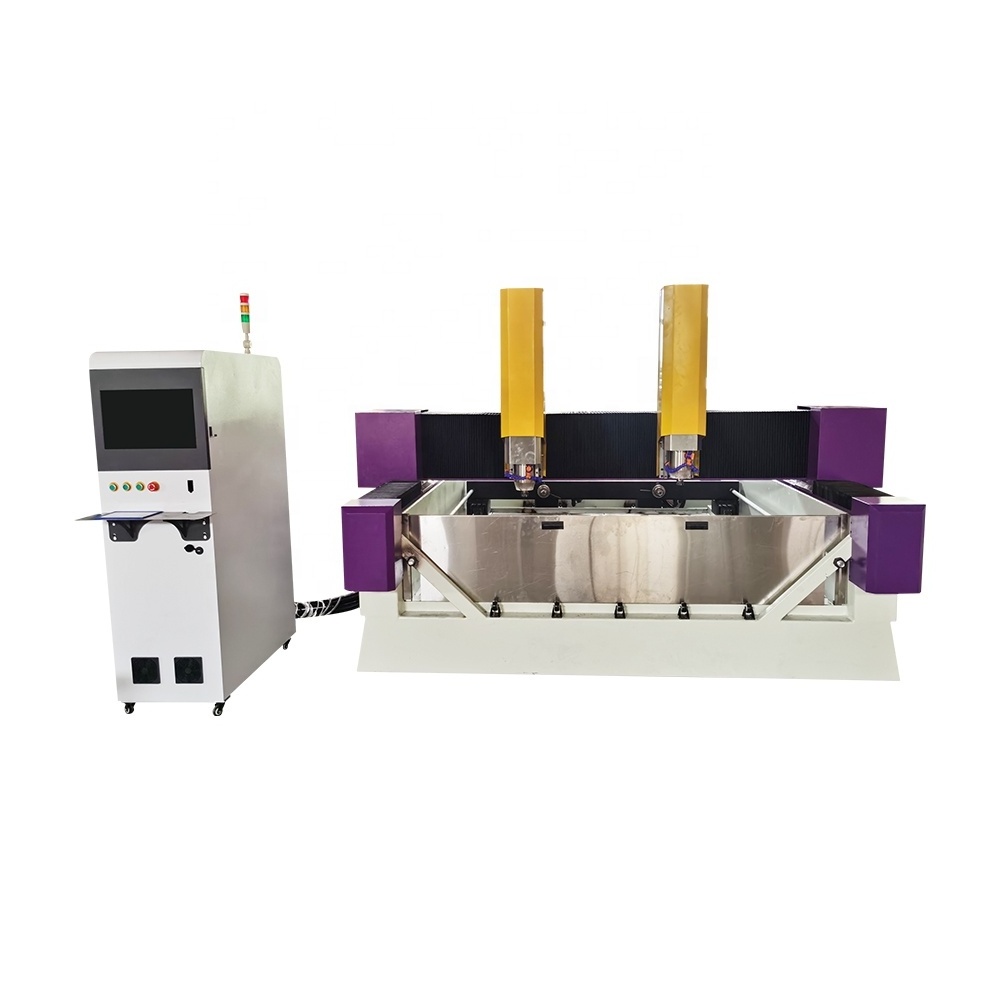

DOUBLE HEAD INDEPENDENT CYLINDER PLANE STONE ENGRAVING MACHINE
robust and durable
stable performance
high efficiency
|
Product model
|
1825 double head independent cylinder planeheavy duty stone engraving machine
|
|
Processing area
|
1800 *2500* 400mm; processing stone diameter0-300mm,processing length 0-2000mm
|
|
Spindle
|
motor using 5.5kw water cooling stone spindle
|
|
Servo motor
|
using Leadshine 1500w servo motor
|
|
Control system
|
Taiwan LNC 4 axis linkage system
|
|
Guide rail
|
Taiwan 25 square guide rail, rack precision helicalteeth
|
|
Machine speed
|
running speed 25m/min;processing speed 15m/min
|
|
Software operating environment
|
windows x /7/10 system, etc
|
Application
Used for engraving common stone such as marble, lapis lazuli, jade, and even hard stone such as granite. It is suitable for stone, tombstone processing，advertising, decorative decoration, handicraft industry, etc.
Usually used for engraving and processing of tombstone, tile backdrop, road and bridge exterior wall relief decoration.
Product Details
Can be equipped with 8-40 cm rotary axis to complete 360 degree 3D engraving of stone.
Can be retrofitted with 2-6 engraving heads to improve the efficiency of bulk relief engraving.
The bed adopts thickened large square tube welded bed reinforced without deformation，reliable performance,durable.
Cable line adopts double sheath high flexible shielded cable. CNC special cable, anti-interference, anti-static. With high flexibility, long time use will not break.
Electric oil injection pump
Fully automatic oil injection and control pump，low noise， high efficiency,easy operation, alarm in advance when the oil level is insufficient.
Machine oil divider
Adopt volumetric oil row，which can deliver lubricating oil to each lubrication point according to the specified amount, so that all sliders can get equal amount of lubricating oil, with good lubrication effect.
Double-sheathed high-flexible shielded cable
The outer side adopts flame retardant PVC sheath; Shielding layer adopts tinned shielding mesh; Inside with reinforced anti-pull rope;Flexible cable adopts oxygen-free copper wire Strong anti-interference and wear-resistance, good oil-proof and water-proof.
Voltage protector
Can set the value of over voltage and under voltage and action time; LCD screen can display voltage value, fault status and record fault function.Protect other electrical accessories of the machine from damage.
High quality inverter
The inverter adopts strong cooling fan and humanized control panel.Energy-saving，powerful,intelligent control,maintain constant voltage,long service life.
France Schneider relay
The service life is 5-10 times longer than ordinary relays; free 3-year warranty
Omron limit
High detection accuracy, good stability.rugged and reliable housing, long service life, high sensitivity, fast frequency response,high repetitive positioning accuracy.
Reducer block
The reducer block is installed at the back of the reducer to improve the stability of the reducer during operation; effectively avoid the gap between the tooth shaft and the rack at a later stage.
About us
Jinan Ludiao CNC Equipment Co.Ltd.
was established in 2011 specializing in the production of various
CNC engraving machines cnc routers, stone machines, various woodworking machinery
and so on.We also produce various fiber laser cutting machines, laser welding machines, laser cleaning machines etc. At present the company has more than 30 patents and is rated as a national high-tech enterprise; We have been engaged in import and export business for 12 years and have export qualification such as EU CE certification and IS09001 management system certification.The annual production and sales of various types of machinery and equipment about 3000 sets;The factory area is 15000 square meters;The company has joined more than 20 large exhibitions.we have a perfect product design and development, production, sales and after-sales service team, can provide customers with quality service. All parts of our machines are made of famous brands at home and abroad and all of our products have undergone strict quality inspection to ensure product quality.the products have been hot-sold to more than 40 countries and regions. and have been well received by clients.Welcome new and old clients to visit our factory and discuss cooperation.
Factory
Packaging and Delivery
Related Machine
Certificates
FAQ
1.I need a CNC router, can you give me some suggestions ?
A: Sure, we will give suggestions of the most suitable machine. Before that.we need to know some information, such as effective processing area,materials, etc., to determine the main parameters.
2.Which kind of materials can be processed on this machine ?
A:Wood,mdf, stone, acrylic, glass, plastic, foam, aluminium, copper, and almost all kinds of non-steel materials.
3. Are you a factory or trading company ?
A:We are the manufacturer and we have 10 years factory experience.
As only the machine made by ourselves, the quality can be trusted, and the most important thing is that we can do better after-sales service. We know how to fix the problem of every part easily,so welcome to visit to our factory.
4. How should I pay for my order ?
A: You need to pay 30% as prepayment at first, then we will start to make production.When the machine is completed, we will send pictures or videos to you, and then you need to pay the balance. We will ship the machine to you after we receive your full payment.
5.How long is the delivery time ?
For standard machines, it will be 7-10 days; For non-standard machines and customized machines according to clients' specific requirements, it will be 15 to 30 days.
