Quick Details
-
Circulation Type:
-
Indirect / Closed Loop (Active)
-
Capacity:
-
300
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
M&T
-
Model Number:
-
MSWT-1
-
Material:
-
Stainless-steel SUS304, 316L,duplex
-
Color:
-
White/Silver-grey/Blue/Red/Stainless-steel
-
Heating source:
-
solar/heat pump/ electric heater/gas boiler
-
Design:
-
Can be customized
-
Coil material:
-
copper/stainless steel/ aluminum
-
Electric heating type:
-
1.5-9KW
-
Certification:
-
ce,WaterMark
Quick Details
-
Warranty:
-
1 Year
-
Application:
-
Hotel, Household
-
Type:
-
Flat-Plate
-
Circulation Type:
-
Indirect / Closed Loop (Active)
-
Capacity:
-
300
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
M&T
-
Model Number:
-
MSWT-1
-
Material:
-
Stainless-steel SUS304, 316L,duplex
-
Color:
-
White/Silver-grey/Blue/Red/Stainless-steel
-
Heating source:
-
solar/heat pump/ electric heater/gas boiler
-
Design:
-
Can be customized
-
Coil material:
-
copper/stainless steel/ aluminum
-
Electric heating type:
-
1.5-9KW
-
Certification:
-
ce,WaterMark

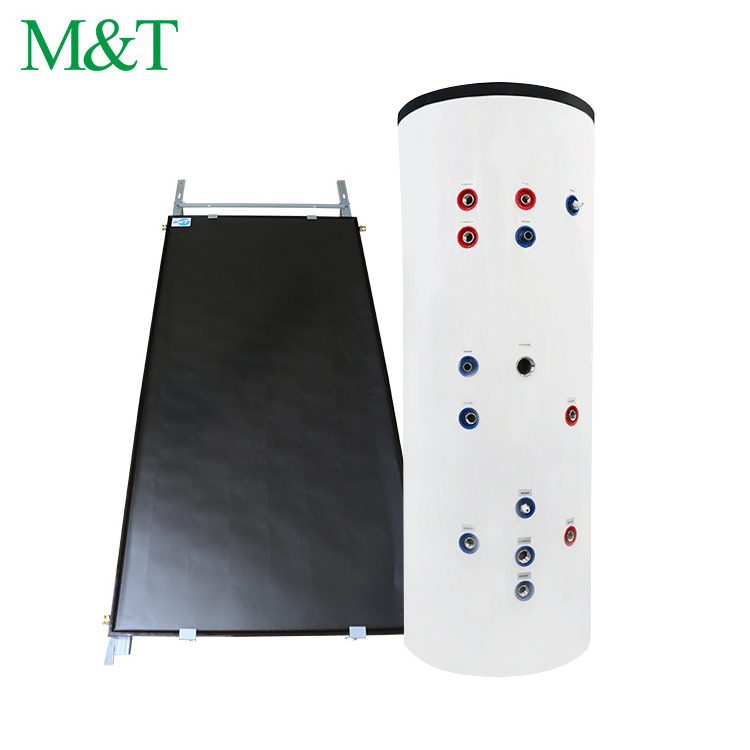

Flat panel 100 500 1000 liter water boiler solar water heater for family
Advantage:
Solar water heating is the conversion of sunlight into heat for water heating using a solar thermal collector, Solar water heaters use the solar energy from the sun to generate heat (not electricity) which can then be used to heat water for showering, space heating, industrial processes.
• Combined with solar heation system, heat pump, electrical heater and other heating source
• Use the Sun to Heat Your Water to save your energy costs;
• Heating element back-up;
• Optional coils to fast the efficiency of heat transferring;
• Optional water connections according to customers requests;
• High dencity polyurethane foam reduces heat loss and energy costs for maximum efficiency
Capacity | L | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |
Inner tank diameter | mm | Φ370 | Φ470 | Φ500 | Φ550 | Φ600 | Φ650 | Φ700 | Φ800 |
Out shell diameter | mm | Φ470 | Φ560 | Φ600 | Φ650 | Φ700 | Φ760 | Φ800 | Φ900 |
Inner tank material | mm | SUS304 / SUS316L / Duplex2205 / Duplex2304 | |||||||
Out shell material | mm | galvanized steel with painting / stainless steel / PU | |||||||
Out shell color | white / silver-grey / blue /red / golden / stainless steel | ||||||||
Max.working pressure | bar | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
Max.testing pressure | bar | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
Max.running temperature | ℃ | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
Heating loss | W/K | 0.65 | 0.72 | 0.89 | 1.02 | 1.15 | 1.26 | —— | —— |
Standing loss | W | 30 | 33 | 40 | 46 | 52 | 57 | —— | —— |
ERP Class | A | A | A | A | A | A | —— | —— | |
Electrical heater | kw | 1.5 | 1.5 | 1.5 | 1.5 | 3 | 3 | 3 | 3 |
Mg.Anode | mm | Φ22*300 | |||||||
Water connection | G / BSP / NPT 3/4" | G / BSP / NPT 1" | |||||||
Packing size | mm |
L:540
W:540 H:1170 |
L:630
W:630 H:1440 |
L:670
W:670 H:1630 |
L:720
W:720 H:1920 |
L:780
W:780 H:1930 |
L:850
W:850 H:1940 |
Φ900*2200 | Φ980*2420 |
