Quick Details
-
power phase number:
-
single-phase
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DFL
-
Model Number:
-
DFL-HJ07-0R75
-
Type:
-
Inverter Board
-
Size:
-
150*104*70MM
-
Output frequency range:
-
0-400hz
-
Certification:
-
CE
-
Package:
-
Carton
-
Output Frequency:
-
0-400Hz
-
PAYMENT:
-
T/T
-
Output voltage:
-
220V:0~220V
-
OEM:
-
Accepted
-
Input voltage:
-
1 Phase 200v~240v AC
-
Delivery time:
-
1-3 Days
-
Overload capacity:
-
150%- 60s
Quick Details
-
Control Mode:
-
v/f
-
Rated Power:
-
0.75KW
-
Nominal Voltage:
-
220V
-
power phase number:
-
single-phase
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DFL
-
Model Number:
-
DFL-HJ07-0R75
-
Type:
-
Inverter Board
-
Size:
-
150*104*70MM
-
Output frequency range:
-
0-400hz
-
Certification:
-
CE
-
Package:
-
Carton
-
Output Frequency:
-
0-400Hz
-
PAYMENT:
-
T/T
-
Output voltage:
-
220V:0~220V
-
OEM:
-
Accepted
-
Input voltage:
-
1 Phase 200v~240v AC
-
Delivery time:
-
1-3 Days
-
Overload capacity:
-
150%- 60s
Product Description
Brand: DFL
Model: DFL-HJ07
Power rating: 0.75KW

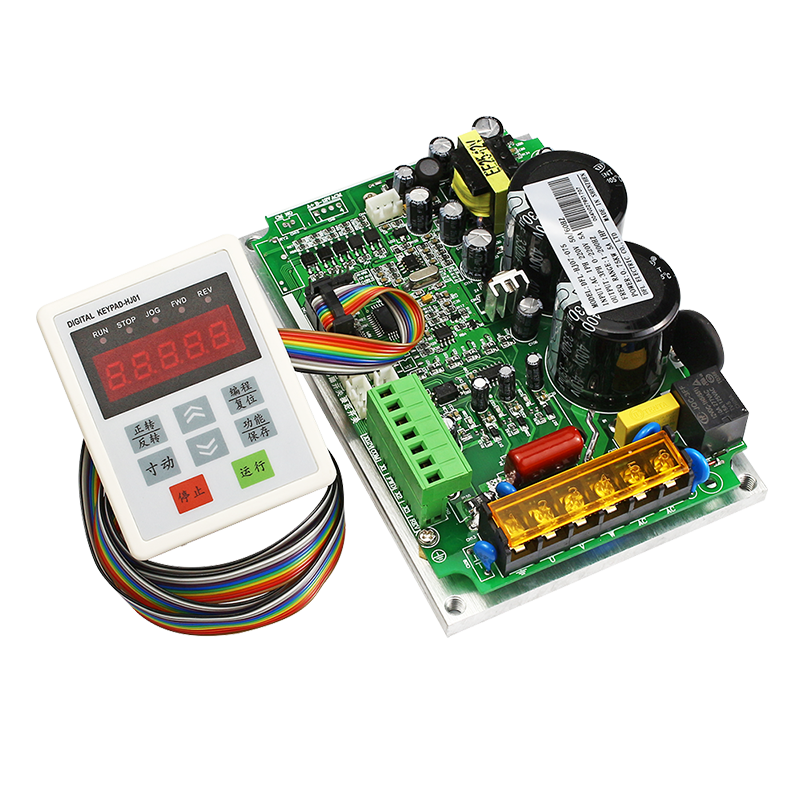

DFL-HJ07 bare-board simple inverter is a simple and economical bare-board general-purpose inverter developed by
Dongguan Quanpu Electric Technology Co., Ltd
. according to the needs of our customers. Now it is supporting the majority of small and medium-sized machinery and equipment manufacturers. Our products are praised by customers for their high cost performance, simple and practical, low defect rate, and good after-sales service.
Characteristics of bare-board inverter parameters:
1. Input power single-phase AC 220V (±25%);
2. Dedicated DSP motor main control IC, voltage vector control,pure SVPWM output;
3. The IPM module is the core component of the power drive, with built-in reliable protections such as over-current, short-circuit, and over-temperature, with extremely low failure rate;
4. The output frequency range is 0.1-400HZ,accuracy: 0.1HZ;
5. Analog input 0-5VDC, 0-10VDC, 0/4-20mA;
6. Digital operation panel can be connected with extension cord, and parameters can be set freely;
7. The user can set the V/F curve arbitrarily;
Features of bare-board inverter:
1. Multi-function relay output, realize the relay output in various states such as running, frequency reaching, external abnormality, etc.;
2.Automatic voltage stabilization function, DC braking, instantaneous power failure restart speed tracking function; PLC program control and other functions;
3. Complete protection functions: overvoltage, undervoltage, overload, overtemperature, and output short circuit protection;
4. Parameter password protection, limited use time, parameter recovery;
5. The equipment-specific inverter can be customized according to user requirements.
