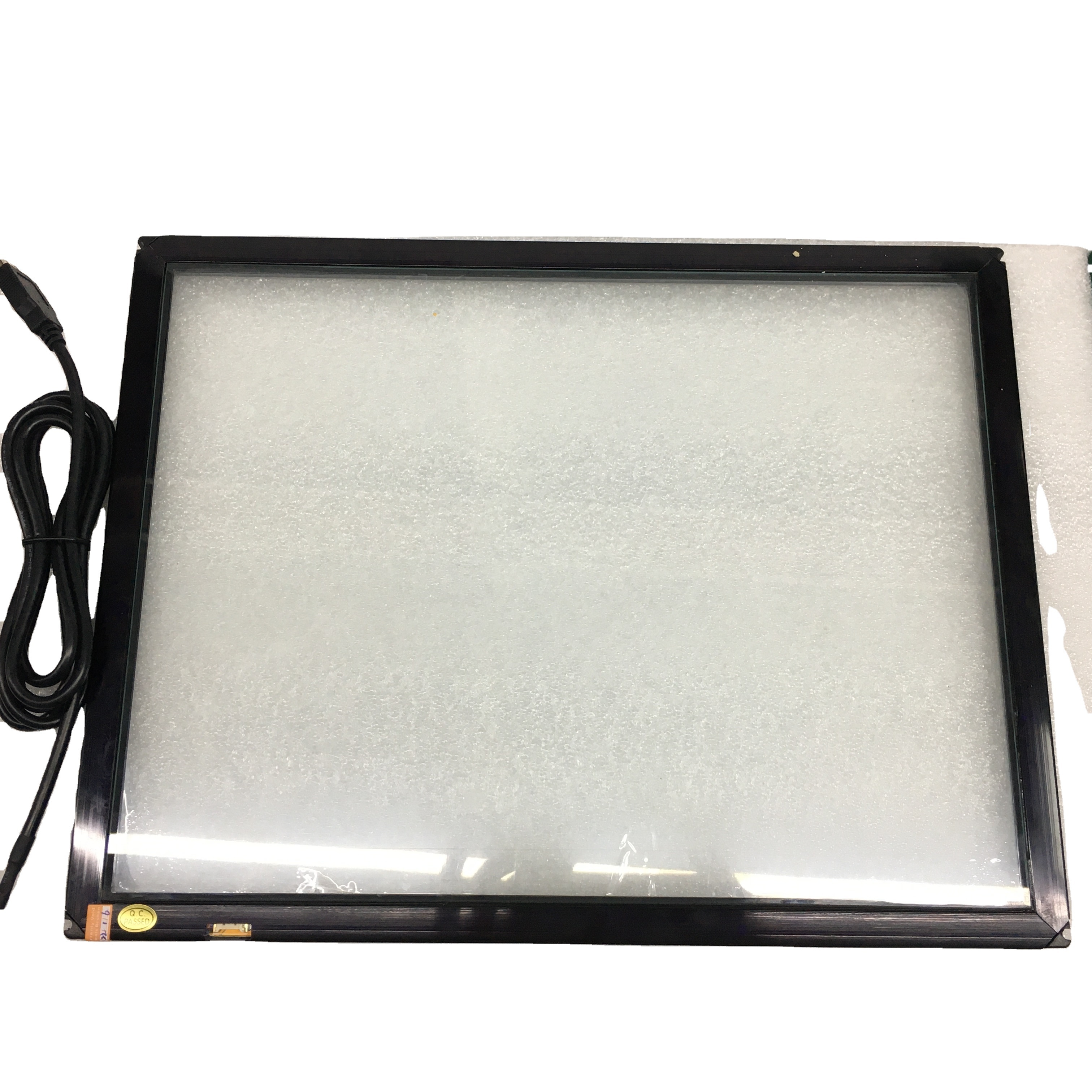

Customize touchscreen 10.1 13.3 15 15.6 17 19 21.5 23.6 inch 4:3 16:9 IR PCAP 10 points USB RS232 Touch Screen Touch Panel

Customize touchscreen 10.1 13.3 15 15.6 17 19 21.5 23.6 inch 4:3 16:9 IR PCAP 10 points USB RS232 Touch Screen Touch Panel

FOB Reference Price: Get Latest Price

≥1 Sets

US $40

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product Name:: Customize Touch Screen

Size:: Optional

Resolution:: for 1024*600 Screen

Touch screen type:: PCAP/IR touch

Interface:: USB/IIC

Cover lens:: 2mm standard, can be customize

Quick Details

Type:: Capacitive

Brand Name:: Clientop

Place of Origin:: Guangdong, China

Product Name:: Customize Touch Screen

Size:: Optional

Resolution:: for 1024*600 Screen

Touch screen type:: PCAP/IR touch

Interface:: USB/IIC

Cover lens:: 2mm standard, can be customize

Product Description

Features

- 10 points touch, fast response - Support multiple operating systems without driver - Hardware self-test, easy maintenance - Large object block no effect, redundant point shielding - Fault-tolerant design,strong anti-interference ability - Dense tube design, high touch precision - Solid structure, easy to assemble - Anti light&dust，waterproof&riot

- Interface: USB and RS232

- Waterproof Level: IP65

- Material: Standard is toughened glass（surface hardness 7H）; Customized is AR，AG glass

Touch Screen Size Table
Size(")	Ratio	Touch Area(mm)	Outline Dimension(±0.5mm)	Thickness(mm)	Border Width(mm)
15"	4:3	306*230 mm	337*261 mm	7.5	15.5 mm
15.6"	16:9	345*194	376*225 mm	7.5	15.5 mm
17"	4:3	340*272	371*303 mm	7.5	15.5 mm
19"	4:3	378*303	409*334 mm	7.5	15.5 mm
21.5"	16:9	476.5*269	512*304.5 mm	6.8	17.8 mm
23.6"	16:9	522*294	553*325 mm	7.5	15.5 mm
