Quick Details
-
Drill Diameter:
-
16mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Hiwinstar
-
Voltage:
-
220/380v
-
Power:
-
2.2kw
-
Dimension(L*W*H):
-
1500*1200*1300mm
-
Applicable Industries:
-
furniture workshop
-
Weight (KG):
-
500
-
Name:
-
mortise and tenon machine
-
Model:
-
MS3112
-
Weight:
-
500kg
-
Dapt depth:
-
60mm
-
Color:
-
Required
-
Type:
-
horizontal
-
Spindle speed:
-
9000r/min
-
Total power:
-
2.2kw
-
Worktable lifter stroke:
-
80mm
-
Overall Dimensions:
-
1500*1200*1300mm
Quick Details
-
Application:
-
Woodworking
-
Motor Speed:
-
9000r/min
-
Marketing Type:
-
New Product 2022
-
Drill Diameter:
-
16mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Hiwinstar
-
Voltage:
-
220/380v
-
Power:
-
2.2kw
-
Dimension(L*W*H):
-
1500*1200*1300mm
-
Applicable Industries:
-
furniture workshop
-
Weight (KG):
-
500
-
Name:
-
mortise and tenon machine
-
Model:
-
MS3112
-
Weight:
-
500kg
-
Dapt depth:
-
60mm
-
Color:
-
Required
-
Type:
-
horizontal
-
Spindle speed:
-
9000r/min
-
Total power:
-
2.2kw
-
Worktable lifter stroke:
-
80mm
-
Overall Dimensions:
-
1500*1200*1300mm

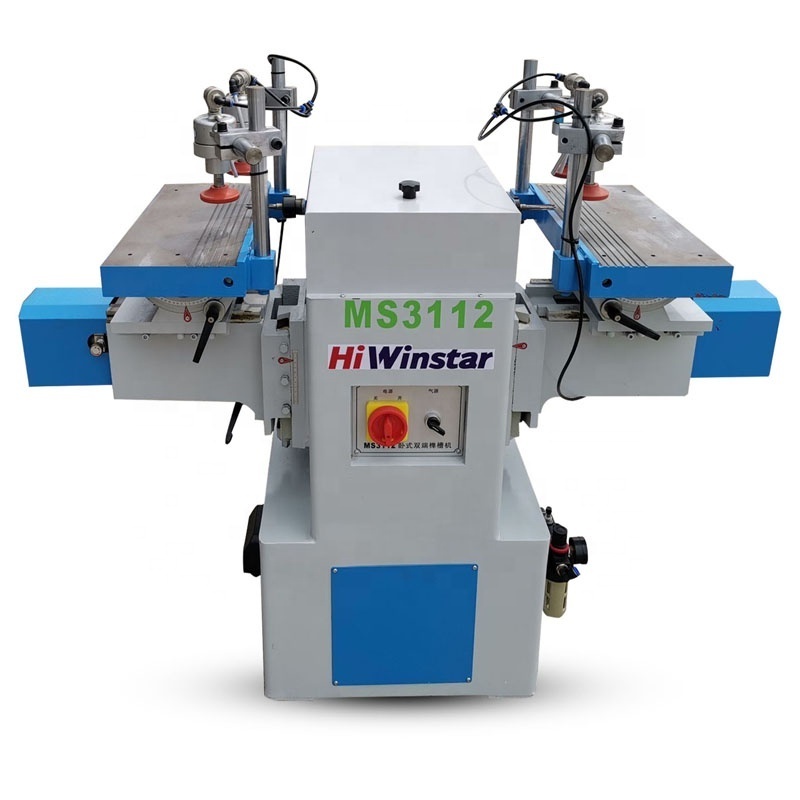

MS3112 horizontal double end woodworking mortiser chair leg hole slot making mortising and tenon machine
| model | MS3112 |
| tilting angle | ±20º |
| maximum tenon champer width | 120+2R |
| maxmum tenon groove depth | 60mm |
| spindle speed | 9000r/min |
| Worktable lifter stroke | 80mm |
| total power | 2.2kw |
| weight | 500kg |
| overall dimensions | 1500*1200*1300mm |
Features
1.Double table can be left and right sides simultaneously processing, improve the efficiency.
2.The work table can be processed Spindle assembly along the precise guide rail high speed, high precision, fast moving, high-precision spindle for heavy cutting.
3.Through the digital display to manually adjust the tenon width parameter to adjust the processing size, more convenient, more accurate processing.
4.The unique structure of the adjustment for speed of processing mortise spindle, in order to adapt to different processing requirements, ensure machining quality and efficiency.
Detailed Description
Detailed Pictures
Application
It is mainly used in the production of solid wood furniture. It adopts connecting rod drive and automatic control system. It consists of double worktables and can be used at the same time. The worktable can be tilted to a certain angle to the left and right to meet the requirements of the gutter.
