Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
9.0kw
-
Place of Origin:
-
Shandong
-
Brand Name:
-
TECHPRO
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
1300*2500*300mm
-
Power (kW):
-
20
-
Weight (KG):
-
2000
-
Product name:
-
ATC cnc router machine
-
Application:
-
Kitchen Cabinet Doors Furnitures Making
-
Working area:
-
1300mm*2500mm*300mm
-
Spindle:
-
9kw ATC Air Cooling Spindle
-
Control system:
-
Taiwan syntec Control System
-
Motor and driver:
-
Leadshine AC Servo Driver 1500W
-
Table Surface:
-
Vacuum adsorption + T-slot Table
-
Transmission:
-
Helical Rack Pinion
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Inverter:
-
China Fuling Inverter
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
9.0kw
-
Place of Origin:
-
Shandong
-
Brand Name:
-
TECHPRO
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
1300*2500*300mm
-
Power (kW):
-
20
-
Weight (KG):
-
2000
-
Product name:
-
ATC cnc router machine
-
Application:
-
Kitchen Cabinet Doors Furnitures Making
-
Working area:
-
1300mm*2500mm*300mm
-
Spindle:
-
9kw ATC Air Cooling Spindle
-
Control system:
-
Taiwan syntec Control System
-
Motor and driver:
-
Leadshine AC Servo Driver 1500W
-
Table Surface:
-
Vacuum adsorption + T-slot Table
-
Transmission:
-
Helical Rack Pinion
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Inverter:
-
China Fuling Inverter
Products Description

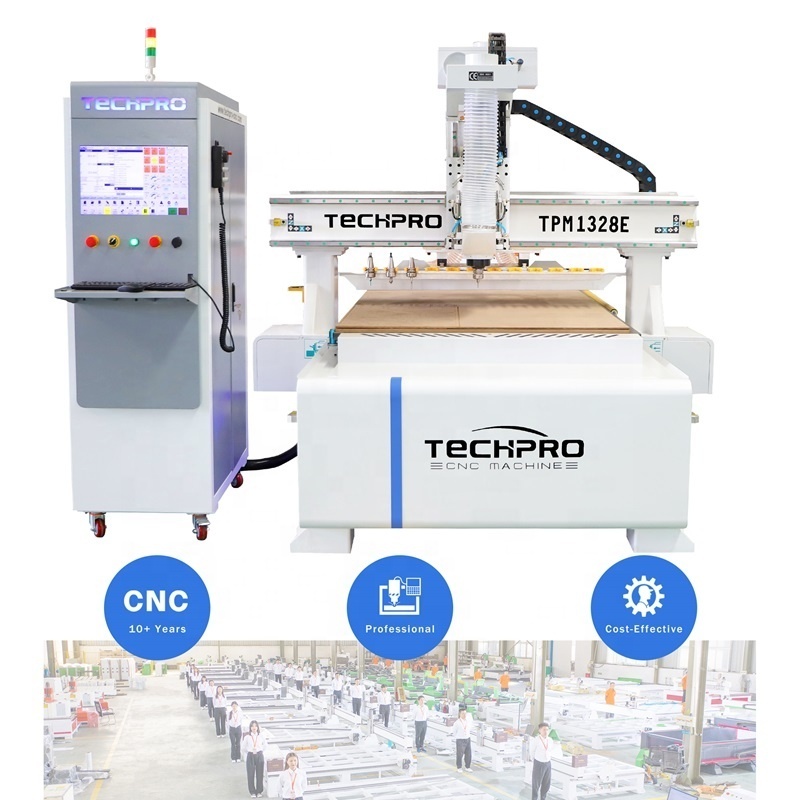

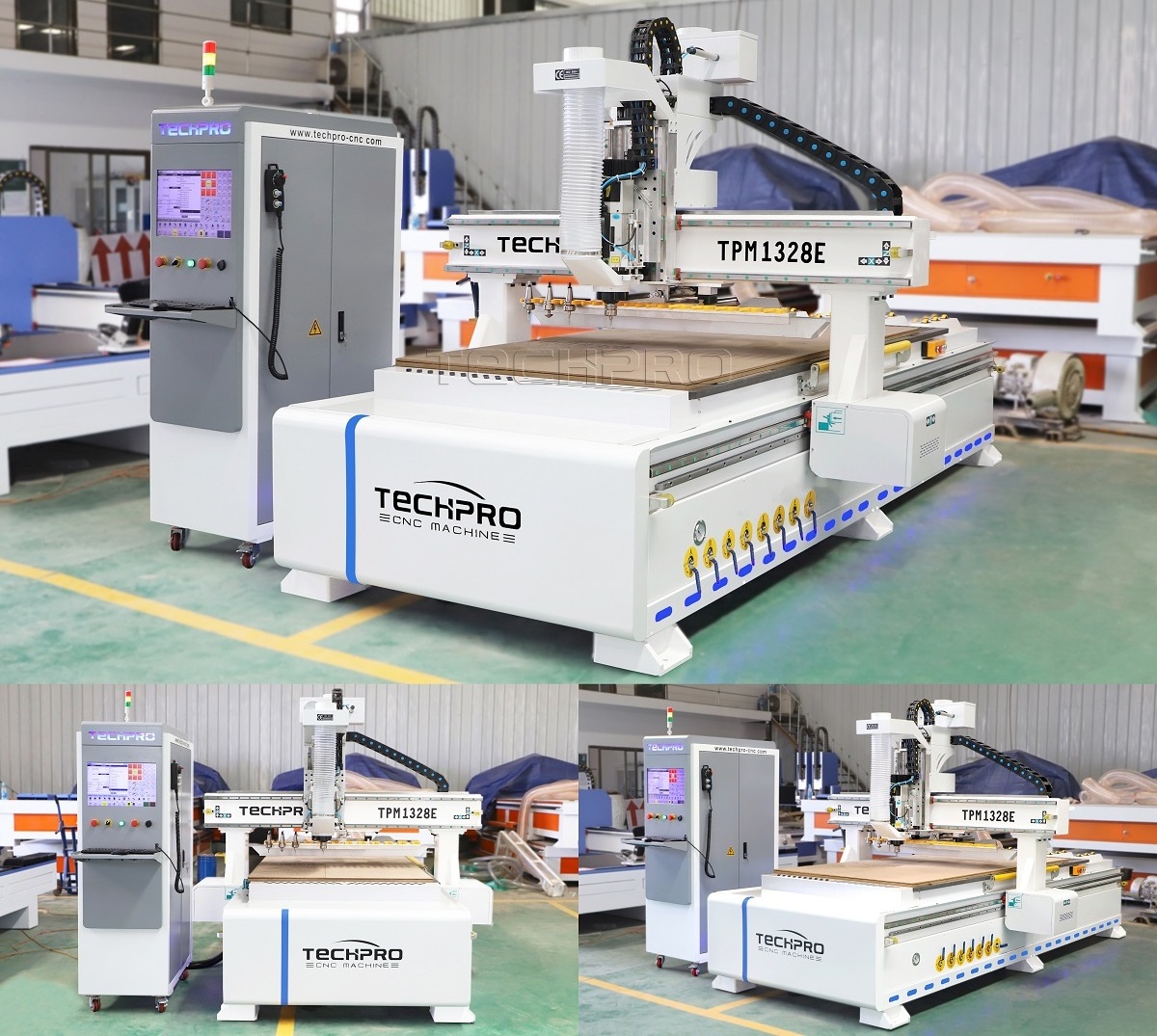

TechPro ATC CNC Router Machine Featrues :
1. Adopt heavy duty machine frame, forming by CNC planer-type milling machine, more stronger and stability.
2.
Equipped with a large protective cover and safety grating equipment to protect the safety of operators.
3. Taiwan LNC / Syntec control system with break point memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing.
4. Chinese HQD spindle or Italian ATC air cooling spindle, ensure the cutting effect, long using life with less maintain.
5. Be compatible with many CAD/CAM software like type3/Art-cam/Casmate/Proe/UG/Artgrave etc.
7. Independent control cabinet, Stronger power and weak power separate, maintenance easily.
8. 12Pcs linear automatic tools changer, can fast to change tools, imporove the processing efficiency.
Application of TechPro ATC CNC Router Machine :
1. Furniture wooden craft decoration:
Solid wood furniture, MDF paint-free doors, composite doors, cabinet windows, bedside tables, screen carvings, 2D/3D large-area flat plate carving.
2. Advertising industry:
Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process, trademarks and other materials.
3. Metal Industry: Aluminum, copper soft metal material cutting and drilling.
4. Artwork and Decoration: wood crafts; gift box; jewelry box.etc
Machine Configuration
|
Model
|
TPM1325E
|
|
Working area
|
1300*2500*300mm (Optional 1500*3000*300)
|
|
Control system
|
Taiwan LNC / Syntec control system
|
|
Spindle
|
HQD / HSD ATC 9.0kw air cooling spindle ( 0-24000rpm )
|
|
Motor and Driver
|
Leadshine AC servo motor and driver 1500W
|
|
Inverter
|
Fuling inverter
|
|
Table surface
|
T-slot and vacuum adsorption table
|
|
Structure
|
Heavy Duty 10mm Steel machine bed; 12mm Moving Steel Gantry
|
|
Lubrication system
|
Manual lubrication system
|
|
Transmission
|
X,Y axis: rack and pinion drive Z axis: Taiwan TBI ball screw
X,Y axis: Taiwan Hiwin square guide rails with 30mm |
|
Electric Parts
|
Schneider brand
|
|
Tool Sensor
|
Automatic probe
|
|
Vacuum Pump
|
5.5kw vacuum pump
|
|
Software
|
Artcam/Ucancam / Aspire /Fushion360 etc
|
|
Working Voltage
|
380V or 220V /3phase/1 Phase
|
|
Conveyor Table
|
Loading & Unloading table
|
|
Optional
|
Italy HSD spindle
|
|
|
Drilling Bank
|
|
|
C Axis + Aggregates
|
|
|
Japan Yaskawa Servo Motor and Driver
|
