- Product Details
- {{item.text}}
Quick Details
-
Use:
-
Bathroom, Bedroom, Living Room, indoor
-
Specification:
-
450W
-
Number of Bulbs:
-
0
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Evinom
-
Model Number:
-
GL-200
-
Power:
-
450W
-
Size:
-
80*60cm
-
Voltage:
-
230V
-
Certification:
-
CE& Rohs2.0&ERP
-
Type:
-
Wall mount
-
Plug:
-
EU/UK
-
IP Rating:
-
IP54
-
Heater type:
-
infrared heater
-
Cable length:
-
1.9m
-
Controller:
-
2pcs Over heat temp control
Quick Details
-
Heating Element:
-
Carbon crystal
-
Installation:
-
Wall Mounted
-
Function:
-
Adjustable Thermostat, Overheat Protection, Ventilation, Waterproof
-
Use:
-
Bathroom, Bedroom, Living Room, indoor
-
Specification:
-
450W
-
Number of Bulbs:
-
0
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Evinom
-
Model Number:
-
GL-200
-
Power:
-
450W
-
Size:
-
80*60cm
-
Voltage:
-
230V
-
Certification:
-
CE& Rohs2.0&ERP
-
Type:
-
Wall mount
-
Plug:
-
EU/UK
-
IP Rating:
-
IP54
-
Heater type:
-
infrared heater
-
Cable length:
-
1.9m
-
Controller:
-
2pcs Over heat temp control
Product Description
Details Images
Product Paramenters
|
Model
|
Size&Power
|
Voltage
|
Gross Weight(kg)
|
HEATING SPACE(m²)
|
|
GL-200
|
60*80cm&450W
|
230V
|
10.8
|
7
|
|
GL-400
|
60*120cm&680W
|
230V
|
13.5
|
10
|
Specifications

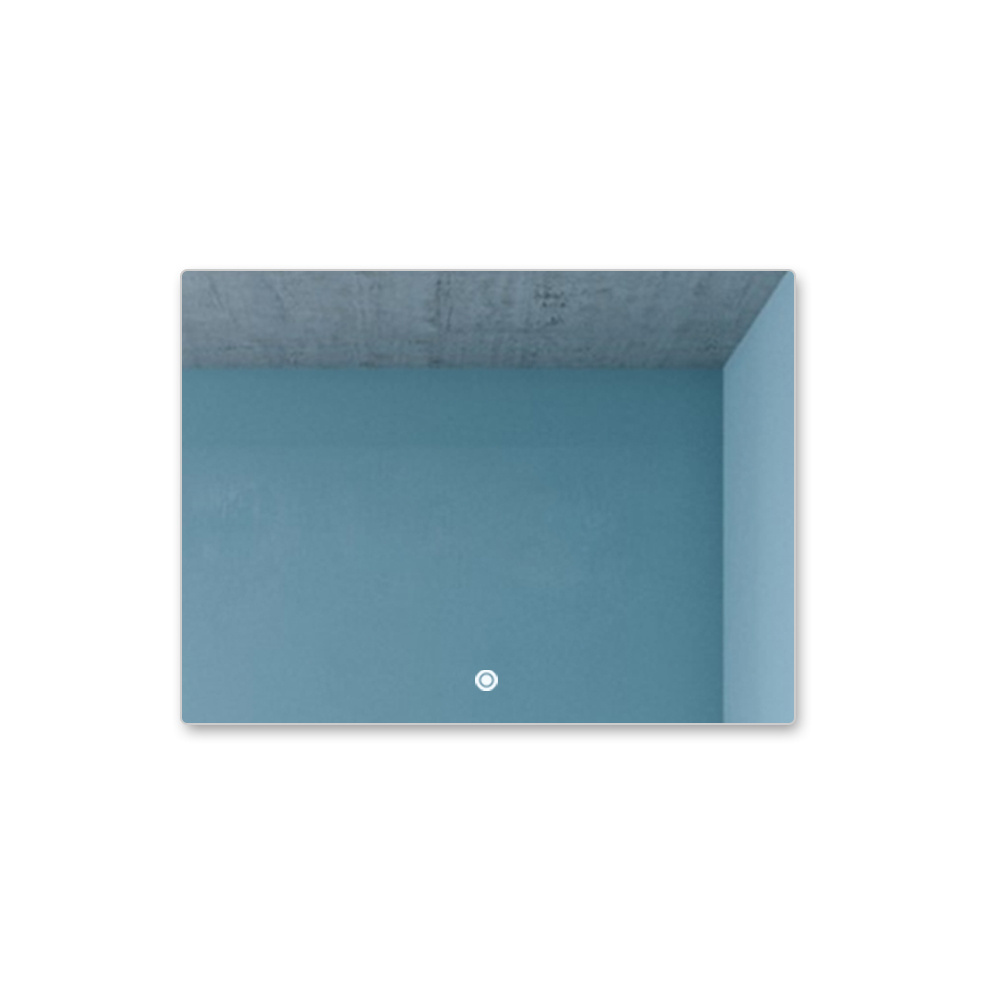

Power 450/680 watts of power gives each room a pleasant and pleasant heat.
Simple installation - The mirror panel heater can be assembled into the desired location simply by plugging it into a socket.
Energy efficient power generation - Infrared ray are as hot as sunlight and emit no carbon dioxide, high quality wall drives, switches and other equipment cutting,the cost of other heating systems in half.
Using the latest technology, carbon crystal electricity produces extremely high efficiency.
Ningbo Evinom Tech case manufacturers are willing to provide 6 years of additional protection.
Operation method
OPERATING INSTRUCTIONS
Three features, mirror, heater, infrared mirror heater in the 3 color 6400K LED lamp and
LED Touch switch
, so that you live a comfortable and comfortable life.
The panel heater does not use an air circulation system, maintains a clean, dust-free environment, provides adequate heat and the heater fully complies with safety standards.
The panel heater does not use an air circulation system, maintains a clean, dust-free environment, provides adequate heat and the heater fully complies with safety standards.
OPERATING INSTRUCTIONS
1. Mount the heat panel on the wall as manuel. Make sure the plug is not in the wall socket when mounting the panel.
2. Once the heat panel is mounted, insert the power cable plug into the wall socket.
3. Briefly press the touch button to turn the LED light band on or off. The back light will turn white.
2. Once the heat panel is mounted, insert the power cable plug into the wall socket.
3. Briefly press the touch button to turn the LED light band on or off. The back light will turn white.
4. Briefly press the touch button
again to change or switch off the backlight.
5. Double press the touch button
to turn the heating function on or off.
6. Once the LED back light is turned on, hold in
the touch button to adjust the brightness of the light band from light to dark and then from dark to light again. This can be done for every backlight
7. A white
touch button indicates that the power is turned on and that the heating function is off.
8. A red
touch button indicates that the heating function is switched on.
9. To turn off the heat panel completely, unplug the power cord from the wall socket.
10. If the device is not going to be used for a longer period of time, always unplug the power cord from the wall socket.
