Quick Details
-
Place of Origin:
-
Hebei, China, Anping, Hebei, China
-
Brand Name:
-
JINBIAO
-
Model Number:
-
JB-02
-
Wire Gauge:
-
2mm,2.5mm
-
Delivery Time:
-
15days
-
Surface treatment:
-
hot galvanized
-
Product name:
-
cattle fence
-
Usage:
-
Protecting Mesh
-
Length:
-
50-200m, customed
-
Aperture:
-
150mm width
-
Feature:
-
galvanized wire mesh rolls cattle fence/ sheep fence, field fence
Quick Details
-
Material:
-
Galvanized Iron Wire
-
Type:
-
Welded Mesh
-
Application:
-
farm
-
Place of Origin:
-
Hebei, China, Anping, Hebei, China
-
Brand Name:
-
JINBIAO
-
Model Number:
-
JB-02
-
Wire Gauge:
-
2mm,2.5mm
-
Delivery Time:
-
15days
-
Surface treatment:
-
hot galvanized
-
Product name:
-
cattle fence
-
Usage:
-
Protecting Mesh
-
Length:
-
50-200m, customed
-
Aperture:
-
150mm width
-
Feature:
-
galvanized wire mesh rolls cattle fence/ sheep fence, field fence
galvanized wire mesh rolls cattle fence/ sheep fence, field fence for sale
galvanized wire mesh rolls cattle fence/ sheep fence, field fence for sale
galvanized wire mesh rolls cattle fence/ sheep fence, field fence for sale
Cattle Fencing Detail explain
1. Material:
1) Galvanized steel wire
2) normally 2.5mm diameter steel wire
3.) stainless wire
N ote:Hot dipped galvanized wire, Zinc coating is about 60-100 g/mm2 normally. It has high request in wet area, about 230 g/mm2. Some of Africa area also used electro galvanized wire recently.
2.Specification of field fencing
1) Opening: (warp)15-14-13-11-10-8-6cm; ( 6" 5.5" 5" 4.5" 4" 3" 2.5")
(weft)15-18-20-40-50-60-65cm (6" 7" 8" 15" 20" 24" 25")
2) horizontal wires: 7 , 8 , 9, 10, 11
3) Mesh wire diameter : 1.8cm~2.5cm
4) Ege wire diameter : 2.0cm~3.2cm
5) fence height:0.8/0.9/1.0/1.1/1.2/1.4m;
6) length:115 inch(50m) or 330 inch(100m)
7)Height: 0.8m,1.0m,1.2m,1.5m, 1.7m, 2.0m. We can also make as the request of the customer.
|
Item |
Type |
Mesh |
Top and bottom Wire diameter (mm) |
Inner wire diameter(mm) |
Roll diameter(mm) |
Unit weight (kg/roll ) |
|
|
1 |
7/150/813/50 |
102+114+127+140+152+178 |
2.5 |
2.0 |
280 |
19.3 |
|
|
2 |
8/150/813/50 |
89(75)+89+102+114+127+140+152 |
2.5 |
2.0 |
280 |
20.8 |
|
|
3 |
8/150/902/50 |
89+102+114+127+140+152+178 |
2.5 |
2.0 |
280 |
21.6 |
|
|
4 |
8/150/1016/50 |
102+114+127+140+152+178+203 |
2.5 |
2.0 |
280 |
22.6 |
|
|
5 |
8/150/1143/50 |
114+127+140+152+178+203+229 |
2.5 |
2.0 |
280 |
23.6 |
|
|
6 |
9/150/991/50 |
89(75)+89+102+114+127+140+152+178 |
2.5 |
2.0 |
280 |
23.9 |
|
|
7 |
9/150/1245/50 |
102+114+127+140+152+178+203+229 |
2.5 |
2.0 |
280 |
26.0 |
|
|
8 |
10/150/1194/50 |
89(75)+89+102+114+127+140+152+178+203 |
2.5 |
2.0 |
280 |
27.3 |
|
|
9 |
10/150/1334/50 |
89+102+114+127+140+152+178+203+229 |
2.5 |
2.0 |
280 |
28.4 |
|
|
10 |
11/150/1422/50 |
89(75)+89+102+114+127+140+152+178+203+229 |
2.5 |
2.0 |
280 |
30.8 |
|
|
Remarks: 1.The meaning of the type: the first group means the numbers of horizontal wire; the second group means length of the mesh size; The third group numbers mean the height of the fence, the fourth group stands for the standard length of the roll. 2. The width is from 0.8 meter up to 2.0 meters. The length is 50 meters or 100 meters per roll. 3. Surface treatment can be made with electro galvanized or hot dipped galvanized. The latter is much more durable than the former. 4. Special size can be customized according to detailed drawin
|
|||||||

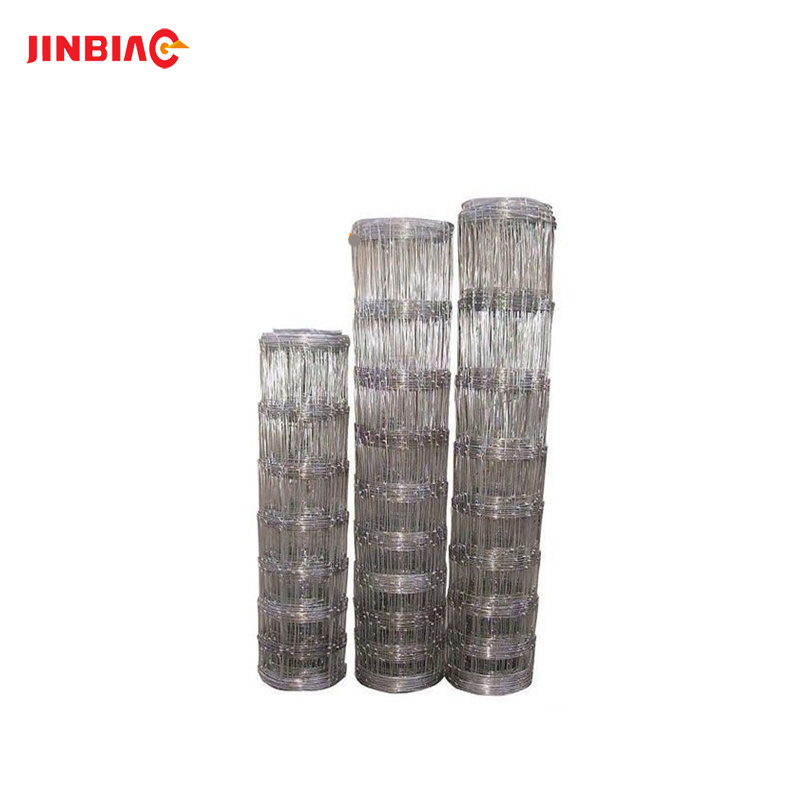

Galvanized Catte Fence Display
Packing Details
Hebei Jinbiao Construction Materials Tech Corp.,Ltd 's factory with the development of 30 years cover area has expanding to 133200 squre meter, more than 10 production lines, more than 200 workers.
