Quick Details
-
Weight (KG):
-
150 KG
-
Place of Origin:
-
Guangdong, China
-
Power (kW):
-
0.6 kW
-
Marketing Type:
-
Hot Product 2023
Quick Details
-
Barrel Volume (L):
-
600
-
Max. Loading Volume (L):
-
500 L
-
Range of Spindle Speed(r.p.m):
-
1 - 240 r.p.m
-
Weight (KG):
-
150 KG
-
Place of Origin:
-
Guangdong, China
-
Power (kW):
-
0.6 kW
-
Marketing Type:
-
Hot Product 2023
Products Description

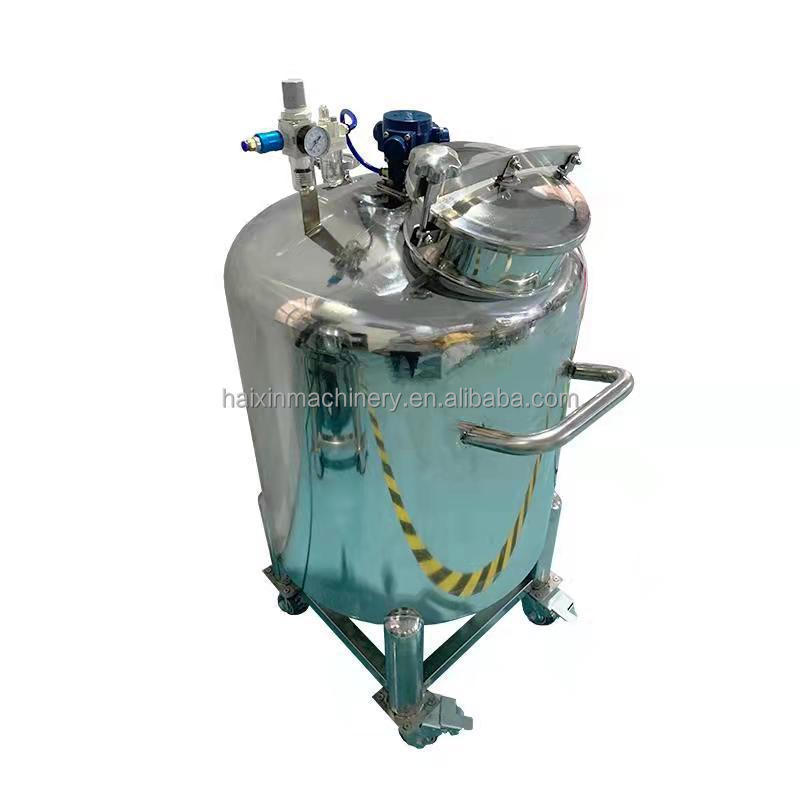

stainless steel mixing tank with pneumatic agitator mixer
Mixing tanks that operate on the pneumatic principle are mainly used in industries with explosion-proof requirements, such as petroleum, chemicals, coatings, paints, woodworking, food, daily chemicals and other flammable, explosive, dusty, heavy-loaded, humid and other workplaces. The speed of the pneumatic mixing tank is adjusted by the flow rate of the incoming air.
Features at a glance
Characteristics
1. Made of authentic SUS304# stainless steel material, acid and alkali resistant and corrosion resistant.
2. The surface is polished and mechanically brushed and polished, which is beautiful and easy to clean.
3. Arc bottom, 4 legs, the bottom discharge is cleaner.
4. The pneumatic mixer uses compressed air; it is safe and explosion-proof; safe and reliable.
5. Each component is fixed with screws, making it easy to disassemble and assemble; and it is simple to maintain.
6. Pressure-type sealed bucket lid with observation window.
7. Equipped with speed control valve, silent muffler, and air source processor
8. The pneumatic mixer is equipped with a reducer, which has large torque and power.
2. The surface is polished and mechanically brushed and polished, which is beautiful and easy to clean.
3. Arc bottom, 4 legs, the bottom discharge is cleaner.
4. The pneumatic mixer uses compressed air; it is safe and explosion-proof; safe and reliable.
5. Each component is fixed with screws, making it easy to disassemble and assemble; and it is simple to maintain.
6. Pressure-type sealed bucket lid with observation window.
7. Equipped with speed control valve, silent muffler, and air source processor
8. The pneumatic mixer is equipped with a reducer, which has large torque and power.
Product Parameters
|
model
|
JBG-QD-50L
|
JBG-QD-100L
|
JBG-QD-200L
|
JBG-QD-300L
|
JBG-QD-500L
|
JBG-QD-1000L
|
|||||
|
Air consumption
|
0.2M3/min
|
0.26M3/min
|
0.4M3/min
|
0.4M3/min
|
0.5M3/min
|
0.99M3/min
|
|||||
|
Working capacity:
|
50L
|
100L
|
200L
|
300L
|
500L
|
1000L
|
|||||
|
working pressure:
|
≤0.2MPA
|
≤0.2MPA
|
≤0.2MPA
|
≤0.2MPA
|
≤0.2MPA
|
≤0.2MPA
|
|||||
|
Motor power:
|
0.16HP
|
0.25HP
|
0.5HP
|
0.5HP
|
0.75HP
|
1.5HP
|
|||||
|
Idling speed:
|
0-240RPM
|
0-200RPM
|
0-160RPM
|
0-160RPM
|
0-120RPM
|
0-120RPM
|
|||||
|
Mixing impeller style:
|
Three-blade propeller mixer
|
|
|
|
|
|
|||||
|
|
SS304/SS316L
|
|
|
|
|
|
|||||
