Quick Details
-
Warranty(Year):
-
2-Year
-
Color Temperature(CCT):
-
2700K/6000K, 3000-6500K
-
Application:
-
Corridor, Staircase, Hallway, Passageway, Passageway, Toilet, Garage
-
Input Voltage(V):
-
85-265V
-
Lamp Luminous Flux(lm):
-
900
-
Model Number:
-
AM-5.0GY
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ALLMAY
-
Item Type:
-
Sensor LED Downlight
-
LED Light Source:
-
SMD2835
-
Working Temperature(℃):
-
-20 - +40
-
Size::
-
2.5" 3" 4" 5" 6"
-
Power::
-
3W/4W/7W/10W
-
Input voltage::
-
AC85-265V
-
Power factor::
-
0.9
-
Sensor Function:
-
Microwave Radar Sensor
-
Working Lifetime(Hour):
-
20000
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
80
-
Lamp Body Material:
-
Plastic
-
Install Style:
-
Embeded
-
Warranty(Year):
-
2-Year
-
Color Temperature(CCT):
-
2700K/6000K, 3000-6500K
-
Application:
-
Corridor, Staircase, Hallway, Passageway, Passageway, Toilet, Garage
-
Input Voltage(V):
-
85-265V
-
Lamp Luminous Flux(lm):
-
900
-
Model Number:
-
AM-5.0GY
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ALLMAY
-
Item Type:
-
Sensor LED Downlight
-
LED Light Source:
-
SMD2835
-
Working Temperature(℃):
-
-20 - +40
-
Size::
-
2.5" 3" 4" 5" 6"
-
Power::
-
3W/4W/7W/10W
-
Input voltage::
-
AC85-265V
-
Power factor::
-
0.9
-
Sensor Function:
-
Microwave Radar Sensor
-
Working Lifetime(Hour):
-
20000

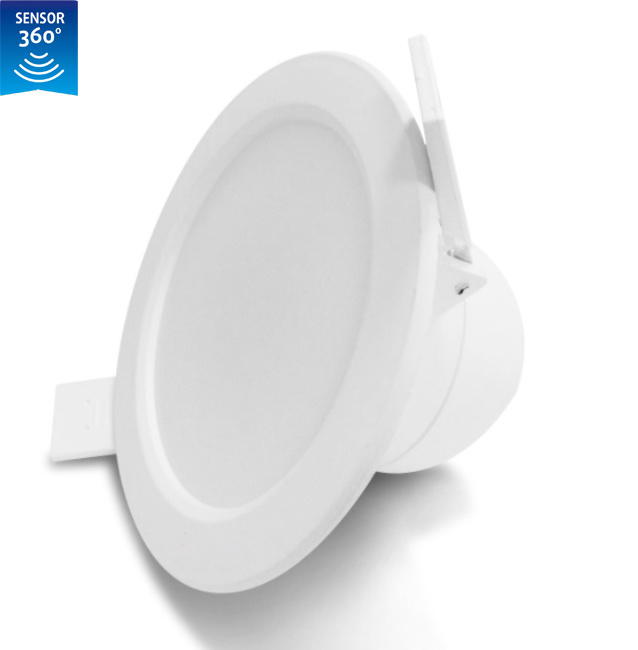

Auto on off Recessed microwave sensor led Down light for passage way corridor garage toilet lighting
Specifications
| Input Characteristics | |||||
| Model No. | AM-2.5GY | AM-3.0GY | AM-4.0GY | AM-5.0GY | AM-6.0GY |
| Mains voltage |
100~265V |
100-265V | 100-265V | 100-265V | 100-265V |
| Stand-by power | <0.5W | <0.5W | <0.5W | <0.5W | <0.5W |
| Rated Power | 3W | 4W | 7W | 10W | 10W |
| LED Qty | 16pcs*SMD2835 | 18pcs*SMD2835 | 36pcs*SMD2835 | 56pcs*SMD2835 | 56pcs*SMD2835 |
| Output Lumen | 250 lm | 350 lm | 550 lm | 950 lm | 950lm |
| Color Temperature | 2700K/6000K | 2700K/6000K | 2700K/6000K | 2700K/6000K | 2700K/6000K |
| Power Factor | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| Lumen Efficiency | 80lm/W | 80lm/W | 80lm/W | 80lm/W | 80lm/W |
| CRI (Ra) | >80 | >80 | >80 | >80 | >80 |
|
Outer Trim
Diameter (mm) |
Φ95*50 | Φ115*62 | Φ140*75 | Φ165*92 | Φ185*92 |
| Cut-out/ Hole size (mm) | Φ73~83 | Φ96~108 | Φ115~126 | Φ137~145 | Φ155~170 |
| Sensor Data | |||||
| Sensor principle | HF Microwave | HF Microwave | HF Microwave | HF Microwave | HF Microwave |
| Operation Frequency | 5.8GHz | 5.8GHz | 5.8GHz | 5.8GHz | 5.8GHz |
| Transmission power | <0.2mW | <0.2mW | <0.2mW | <0.2mW | <0.2mW |
| Detection range: Max(diameter*H) | 8m*6m | 8m*6m | 8m*6m | 8m*6m |
8m*6m |
| Detection angle | 30° ~150° | 30° ~150° | 30° ~150° | 30° ~150° | 30° ~150° |
| Hold time | 15+/-5s | 15+/-5s | 15+/-5s | 15+/-5s |
15+/-5s |
| Sensor Mode |
On/Off ; Full/Dim |
On/Off ; Full/Dim |
On/Off ; Full/Dim |
On/Off ; Full/Dim |
On/Off ; Full/Dim |
| Daylight sensor (on/off Mode) | <10 lux | <10 lux | <10 lux | <10 lux |
<10 lux |
| Environment | |||||
| Operation Temperature(Ta) | -10~40°c | -10~40°c | -10~40°c | -10~40°c | -10~40°c |
| IP Rating | IP20 | IP20 | IP20 | IP20 | IP20 |
Auot sensor on/off Motion sensor led downlight recessed lighting dimming sensor led lights
- Input voltage AC85-265V
- Dimmable motion sensor led downlight
- sensor distance 6-8 meters
- delay time 20 seconds accept customized
- Brightness sensor<10lux
sensor type A: Sensor ON/OFF + (daylight/dusk sensor optional)
sensor type B: Sensor Dual-lightin g when detect movement 100% lighting on,
no movement stand by status 20% lighting
Highly sensitve microwave motion sensor, improved sensitivity compared with PIR sensor
Application:
- Package include converter. With the converter,esay to instrallation the Motion sensor downlight to anywhere you like. Living room, dinning room, garage, doorway, corridor, stairs, store room, washroom, kitcken, etc
- Put one in your living room, no need to find the lamp switch when you wake up in midnigh for toilet
